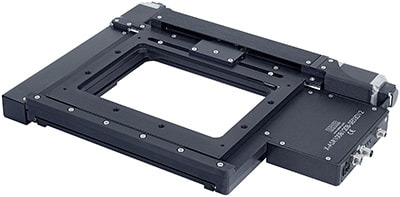

X-ASR-E Series
Motorized XY microscope stages with built-in controllers and motor encoders
- 50 mm to 305 mm travel per axis
- Up to 2 µm repeatability; 85 mm/s speed
- Includes Nucleus microscopy platform modules
- Easily adjustable non-contact hall sensor limit switches
- Built-in controller saves space and simplifies cable management. Easily connect via USB and daisy chain to other Zaber products
- Simple standalone control with X-JOY joysticks
- Digital IO for triggering external systems
- Custom versions available
Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day
Have a Question?
Filter By Feature
Choose one or more options below to filter the parts table.
X-ASRLower Axis Travel: 050, not selectedLead Screw Options: BUpper Axis Travel: 050, not selectedLead Screw Options: BOptions: -SEncoder Options: E03I/O Options: D12
Showing 4 of 4 parts.Lead Screw Options
Upper Axis Travel
Lead Screw Options
Options
Encoder Options
I/O Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart | Add To Compare |
|---|---|---|---|---|---|
| X-ASR050B050B-SE03D12 | 50 mm X 50 mm Travel | 1-5 Days | $7,043 | ||
| X-ASR100B120B-SE03D12 | 100 mm X 120 mm Travel | A Nucleus Module | 1-5 Days | $7,903 | ||
| X-ASR205B205B-SE03D12 | 205 mm X 205 mm Travel | A Nucleus Module | 1-5 Days | $9,642 | ||
| X-ASR305B305B-SE03D12 | 305 mm X 305 mm Travel | A Nucleus Module | 1-5 Days | $10,945 |
Compatible Accessories
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| X-PIB | Daisy-chain Power Injector, X-Series | 1-5 Days | $92 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
