X-ASR-E Series
Motorized XY microscope stages with built-in controllers and motor encoders

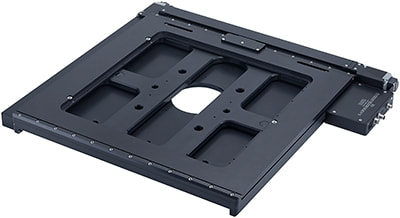

Image is representative of the X-ASR-E Series and may not match the selected variant.
X-ASR305B305B-SE03D12
305 mm X 305 mm Travel | A Nucleus Module
Starting Price: $10,945 *
Lead Time: 1-5 Days
X-ASR305B305B-SE03D12 Specifications
Download Datasheet| Built-in Controller |  |
| Lower Travel Range | 305 mm (12.008") |
| Upper Travel Range | 305 mm (12.008") |
| Manual Control |  |
| Axes of Motion | 2 |
| LED Indicators | |
| Weight | 10.6 kg (23.369 lb) |
| Accuracy (unidirectional) | 80 µm (0.00315") |
| Repeatability | < 2 µm (< 0.000079") |
| Flatness of Travel | 50 µm (0.002") |
| Backlash | < 10 µm (< 0.000394") |
| Straightness of Travel | < 20 µm (< 0.000787") |
| Pitch Error | 0.05° (0.873 mrad) |
| Roll Error | 0.02° (0.349 mrad) |
| Yaw Error | 0.03° (0.523 mrad) |
| Microstep Size (Default Resolution) | 0.15625 µm |
| Default Resolution | 1/64 of a step |
| Peak Thrust | 95 N (21.3 lb) |
| Maximum Continuous Thrust | 95 N (21.3 lb) |
| Maximum Centered Load | 100 N (22.4 lb) |
| Maximum Speed | 65 mm/s (2.559"/s) |
| Minimum Speed | 0.000095 mm/s (0.000004"/s) |
| Speed Resolution | 0.000095 mm/s (0.000004"/s) |
| Encoder Type | Rotary quadrature encoder (incremental) |
| Encoder Resolution | 200 CPR (800 states/rev) |
| Limit or Home Sensing | Magnetic, adjustable home and away sensors |
| Linear Motion Per Motor Rev | 2.00 mm (0.079") |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 1500 mA/phase |
| Motor Winding Resistance | 2.05 ohms/phase |
| Motor Winding Inductance | 1 mH/phase |
| Communication Interface | RS-232, USB 2.0 |
| Communication Protocol | Zaber ASCII (Default), RS-232 |
| Data Cable Connection | Locking 4-pin M8 |
| Power Supply | 24-48 VDC |
| Maximum Current Draw | 2600 mA |
| Guide Type | Crossed roller bearing |
| Mechanical Drive System | Precision lead screw |
| Mounting Interface | Separate mounting adaptors available |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
Typical Accuracy
Typical Microstepping Accuracy
Thrust Speed Performance
Bearing Lifetime
