ASR100/ADR130 Insert, Multiwell Plate

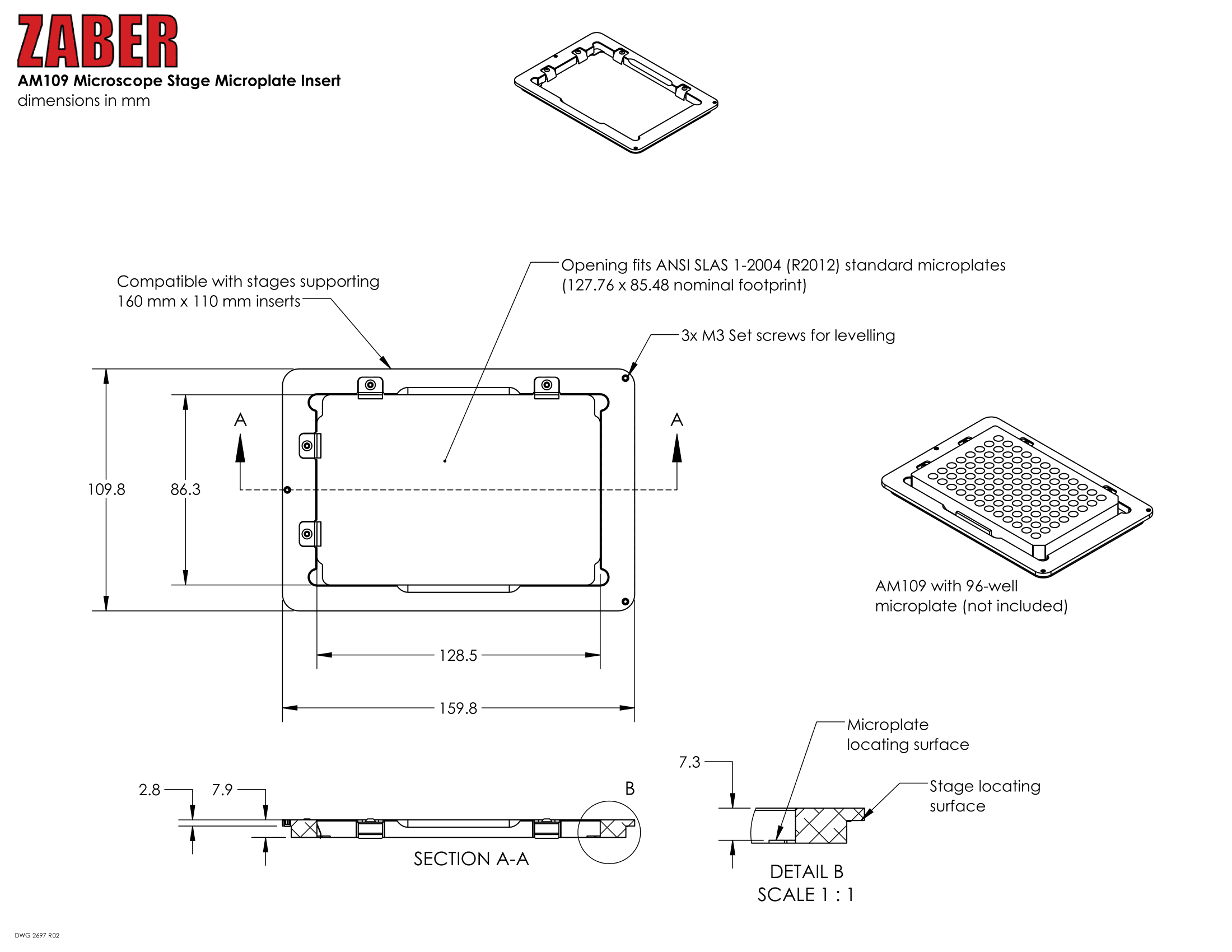

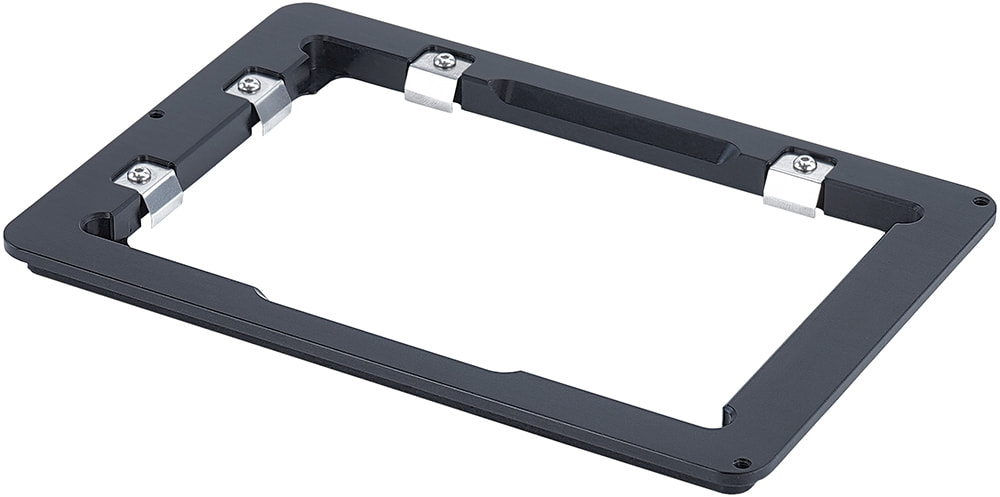

This 160 x 110 mm insert fits into the top plate of the compatible XY microscope stages. It is held in place by a spring clip on the stage allowing quick changes between different inserts. The AM109 holds an SBS standard (127.5 x 85 mm) multiwell plate.
This insert is compatible with the following stages:
- 100 x 120 mm travel ASR XY stages.
- 130 x 100 mm travel ADR XY stages.
For applications with automated/robotic plate loading, see
AM276.
