Motorized Microscope Stages
- Exceptional Performance
Maximize your throughput and consistency with up to 500 nm repeatability, 750 mm/s speed and minimum incremental moves as small as 50 nm. - Scalable to Fit Your Needs
Scan single slides, silicon wafers up to 300 mm, or 6 microplates with 50 to 305 mm of travel per axis. - Easy Set Up & Integration
With built-in controllers, setup is quick and easy; stand-alone controllers are also available. Mounting hardware is available for a wide range of popular microscopes.
Breakthrough
Speed
Precise Repeatability
User-Friendly
Software & API
Plug & Play in Minutes
Shipping
Within 1 Week
High Production Capacity

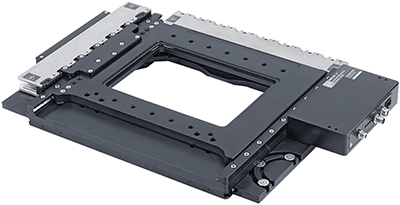

A motorized microscope stage, also referred to as an XY stage, holds and accurately positions samples along the two horizontal axes while restricting vertical movement to ensure samples stay in focus as they are moved.
Zaber offers a selection of standard and customized motorized microscope stage products. Although designed for scanning microscope applications, these stages can be used for many other automated XY positioning tasks. Products are available with optional built-in controllers and encoders.
Looking for a fully automated digital microscope? The ADR and ASR-E stages are fully compatible with the Nucleus microscopy platform.
Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day
Have a Question?
X-ADR-AE Series — Linear Motor XY Microscope Stages
Starting Price
$10,552 (USD)
Representative Image
- A Nucleus microscopy module
- Linear motors for high speed quiet XY operation
- 130 x 100 mm, 250 x 100 mm travel
- 1 nm resolution linear encoder for direct position measurement and correction
| Shortest Lower Travel | Longest Lower Travel | Shortest Upper Travel | Longest Upper Travel | Best Repeatability | Best Minimum Incremental Move | Highest Speed | Highest Thrust | Load |
|---|---|---|---|---|---|---|---|---|
130 mm (5.118") | 250 mm (9.843") | 100 mm (3.937") | 100 mm (3.937") | < 0.5 µm (< 0.000020") | 50 nm | 750 mm/s (29.528"/s) | 35 N (7.8 lb) | 50 N (11.2 lb) |
ASR Family — Motorized XY Microscope Stages
Starting Price
$5,536 (USD)
Representative Image
- Includes Nucleus microscopy modules
- 50 x 50 mm - 305 x 305 mm travel
- Easily adjustable non-contact hall sensor limit switches
- Built-in controller or motor-only models
| Shortest Lower Travel | Longest Lower Travel | Shortest Upper Travel | Longest Upper Travel | Best Accuracy | Highest Speed | Highest Thrust | Load |
|---|---|---|---|---|---|---|---|
50 mm (1.969") | 305 mm (12.008") | 50 mm (1.969") | 305 mm (12.008") | 60 µm (0.002362") | 85 mm/s (3.346"/s) | 95 N (21.3 lb) | 200 N (44.9 lb) |
