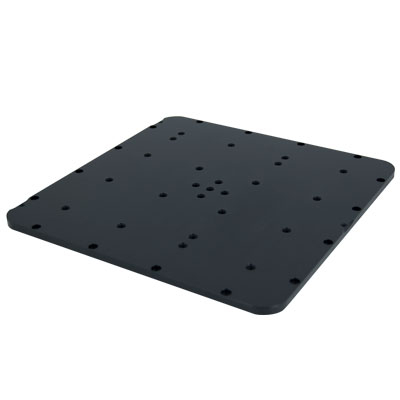

ASR205 Insert, Metric Breadboard

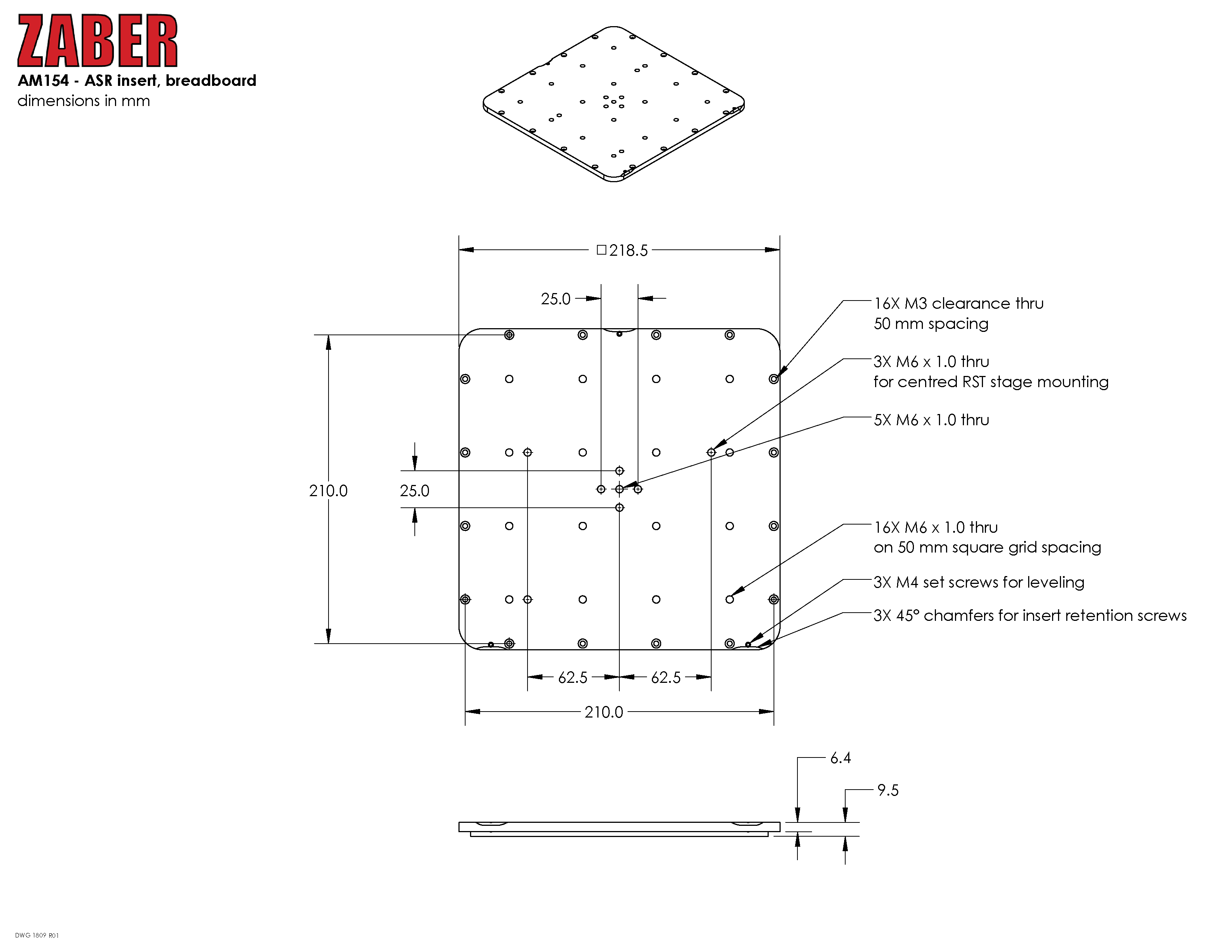

This 219 x 219 mm insert fits into the top plate of the ASR and ASR-E 205 x 205 mm travel XY stages. It is held in place by 3 flat head screws and can be leveled using adjustable set screws. Optionally, 16 M3 socket head cap screws can be used to attach the insert for high load applications. The AM154 features a grid of M6 tapped holes on 50 mm spacing as well as holes for centrally mounting Zaber rotary and vertical stages.
