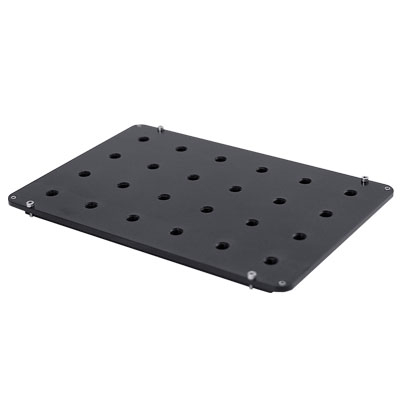

ASR100/ADR130 Insert, Breadboard

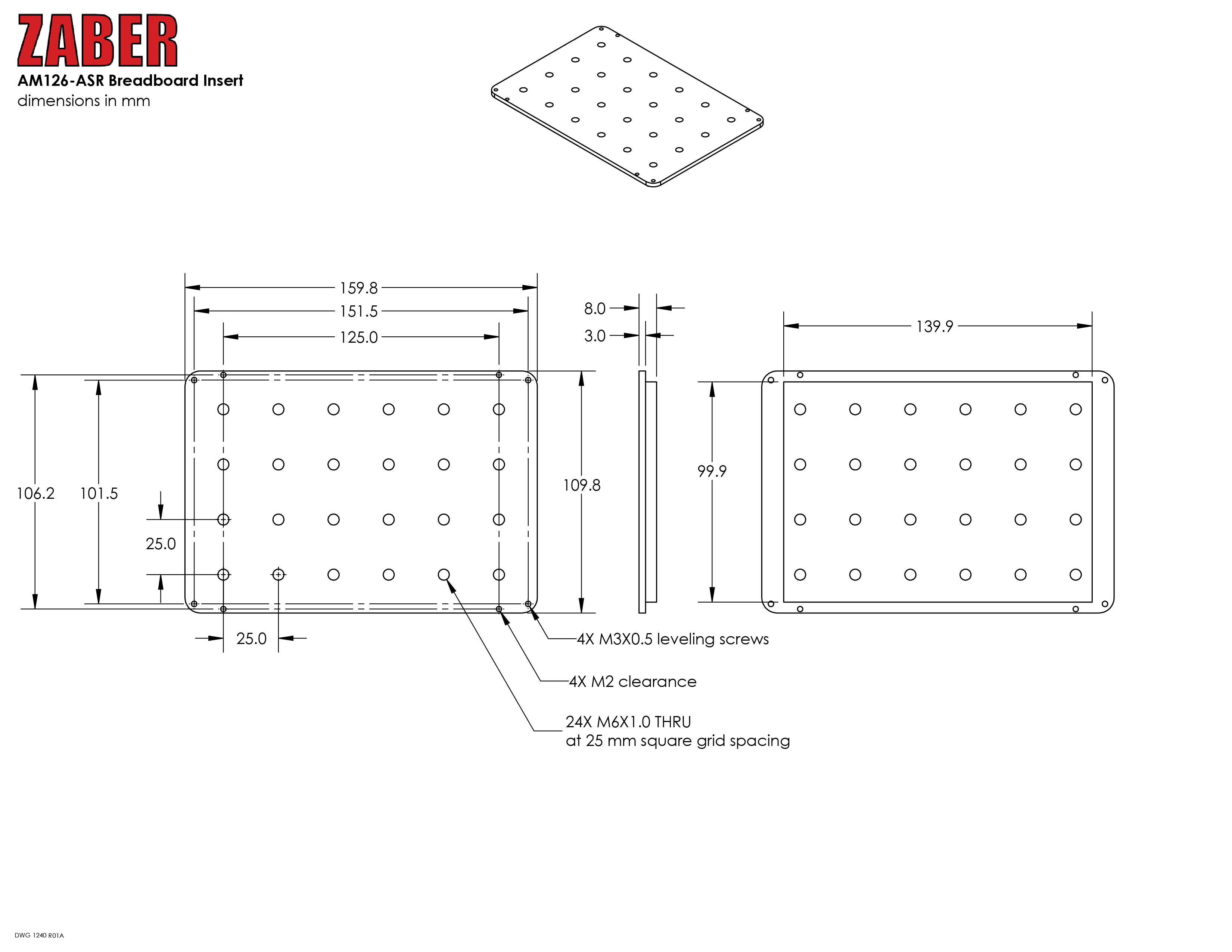

This 160 x 110 mm insert fits into the top plate of the compatible XY microscope stages. It is held in place by a spring clip on the stage as well as 4 optional M2 screws (included). The AM126 features a grid of M6 tapped holes on 25 mm spacing to allow the easy mounting of other Zaber devices or other accessories. This insert is compatible with the following stages:
- 100 x 120 mm travel (X-)ASR and (X-)ASR-E XY stages.
- 130 x 100 mm travel X-ADR-AE XY stages.
