XY & XYZ Motorized Stages

XY & XYZ Motorized Stages

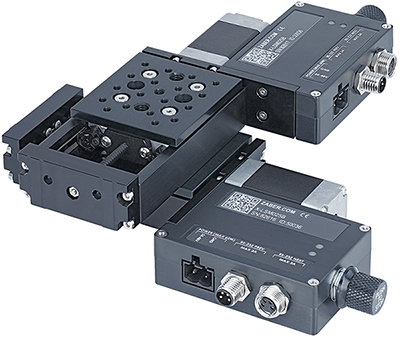

Zaber's XY stages
  • Design & Order an XY or XYZ System in a Few Clicks
    Start with one of our pre-set configurations below and define your travel, add features, see real-time pricing, and add to cart or ask for a quote. It's that easy!
  • Start Moving in Minutes
    Plug & play stages with integrated controllers, quick screw-together assembly, and auto-detect software gets you going quickly. Watch a 3 axis set up in 3 mins!
  • Free Beginner-Friendly & Expert-Ready Software
    Use the Zaber Launcher application to quickly connect, configure, and test simple moves. Program advanced movements with Zaber's open-source API; its sample code makes programming nearly a copy and past task. Learn more.
  • Build Your Ideal System
    Don't see exactly what you need? No problem! Easily combine Zaber's linear, rotary, vertical, and tilt stages to create the perfect system for your application. We also offer customizations.
Multiple Ranges

Various Travel Ranges

Plug-N-Play

Plug & Play in Minutes

User-friendly software

User-Friendly
Software & API

Customization

Customizations Available

Lead Time

Shipping
Within 1 Week

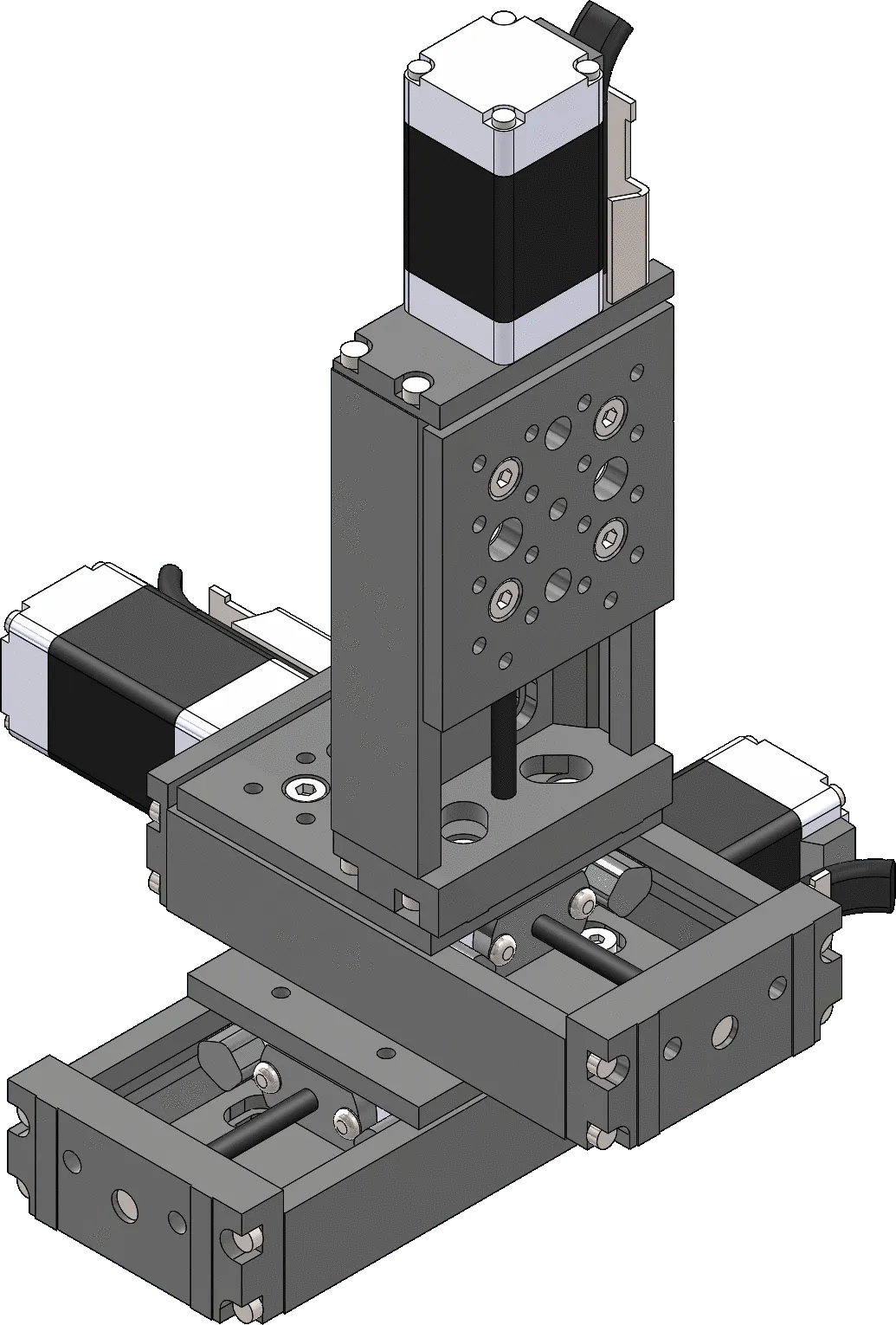

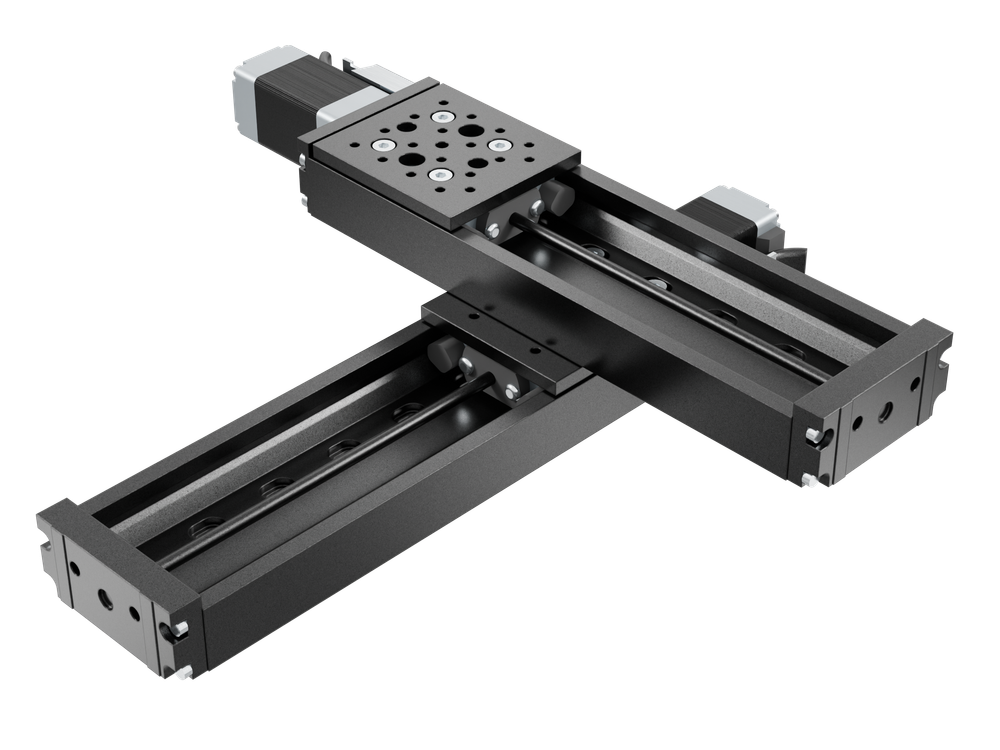

Render of the XYZ LSM

Starting Price

$4,490 (USD)

Low Profile

Compact LSM XY, XYZ Stages

  • Max travel: 200 x 200 (x 200) mm
  • XY Payload: up to 10 kg
  • XYZ Payload: up to 2.5 kg
  • Speed: up to 104 mm/s
  • OEM Favorite

Configure & Buy/Quote

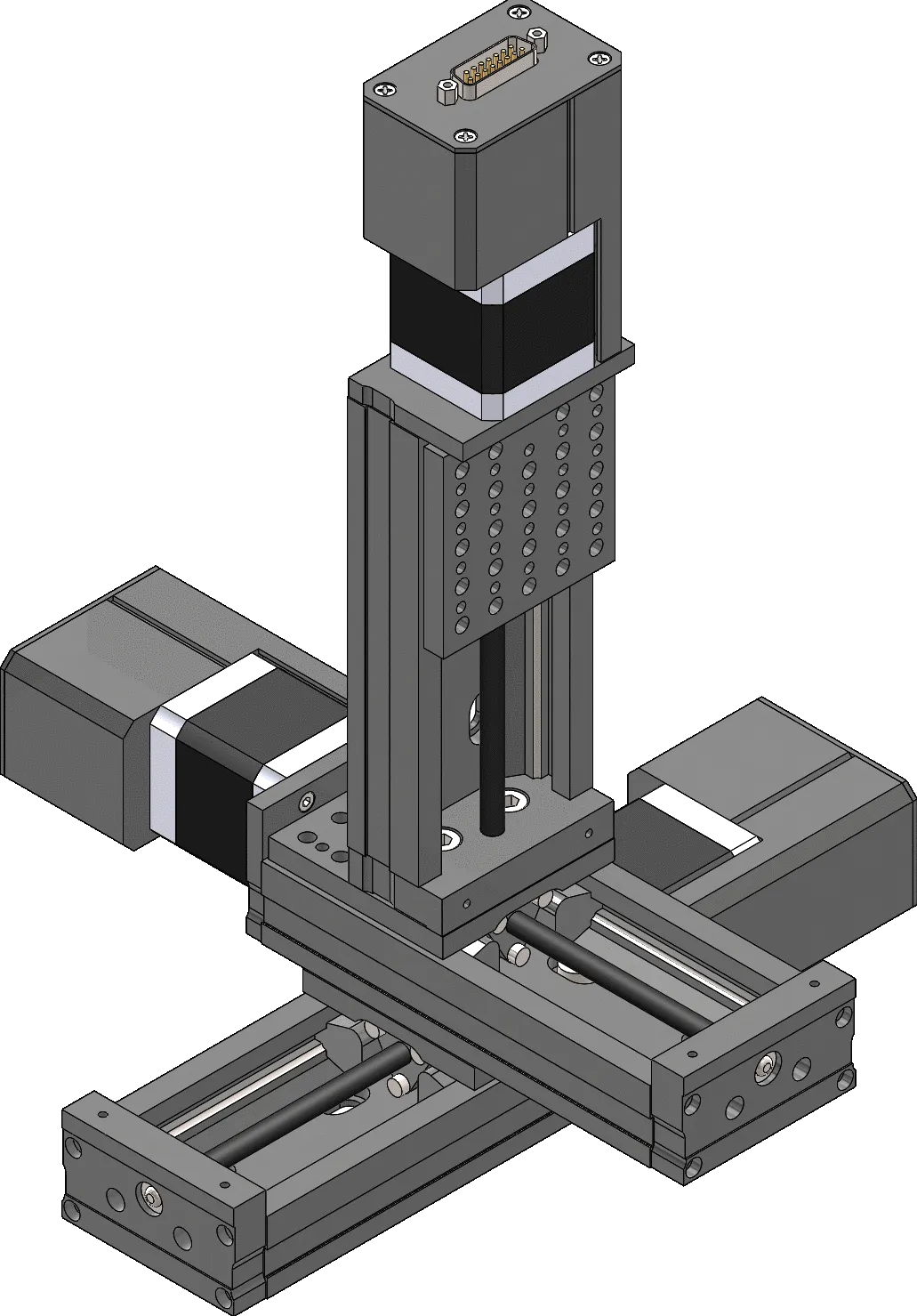

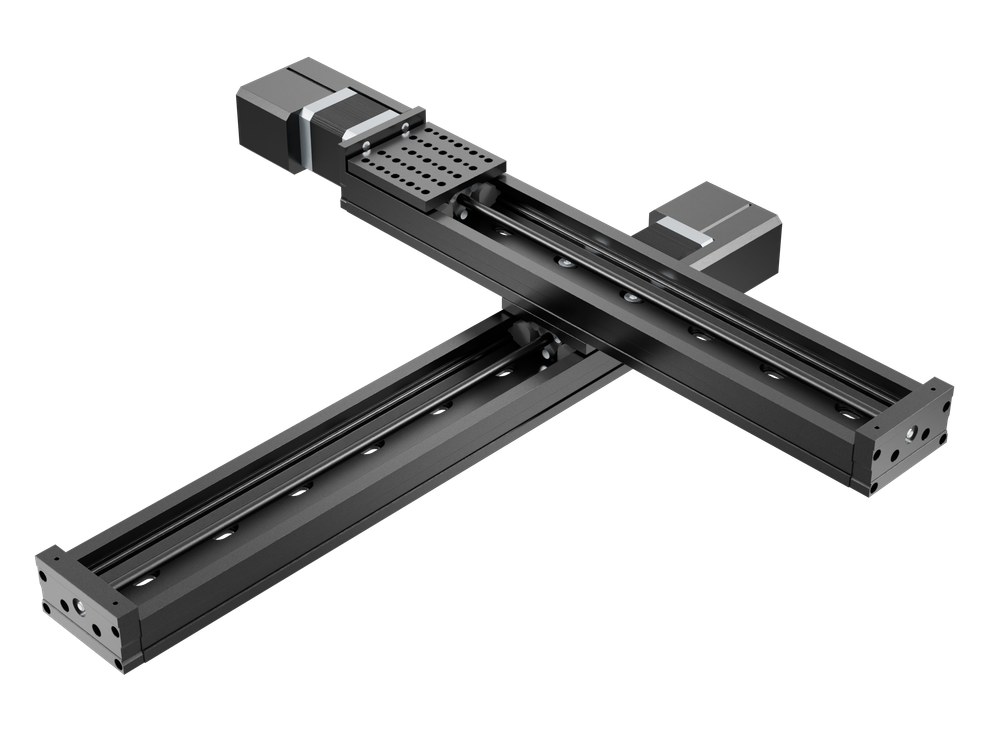

Render of the XYZ LSQ

Starting Price

$5,378 (USD)

Moderate Load

Cost effective LSQ XY, XYZ Stages

  • Max travel: 600 x 600 (x 600) mm
  • XY Payload: up to 50 kg
  • XYZ Payload: up to 10 kg
  • Speed: up to 1000 mm/s
  • Rigid Cover Option

Configure & Buy/Quote

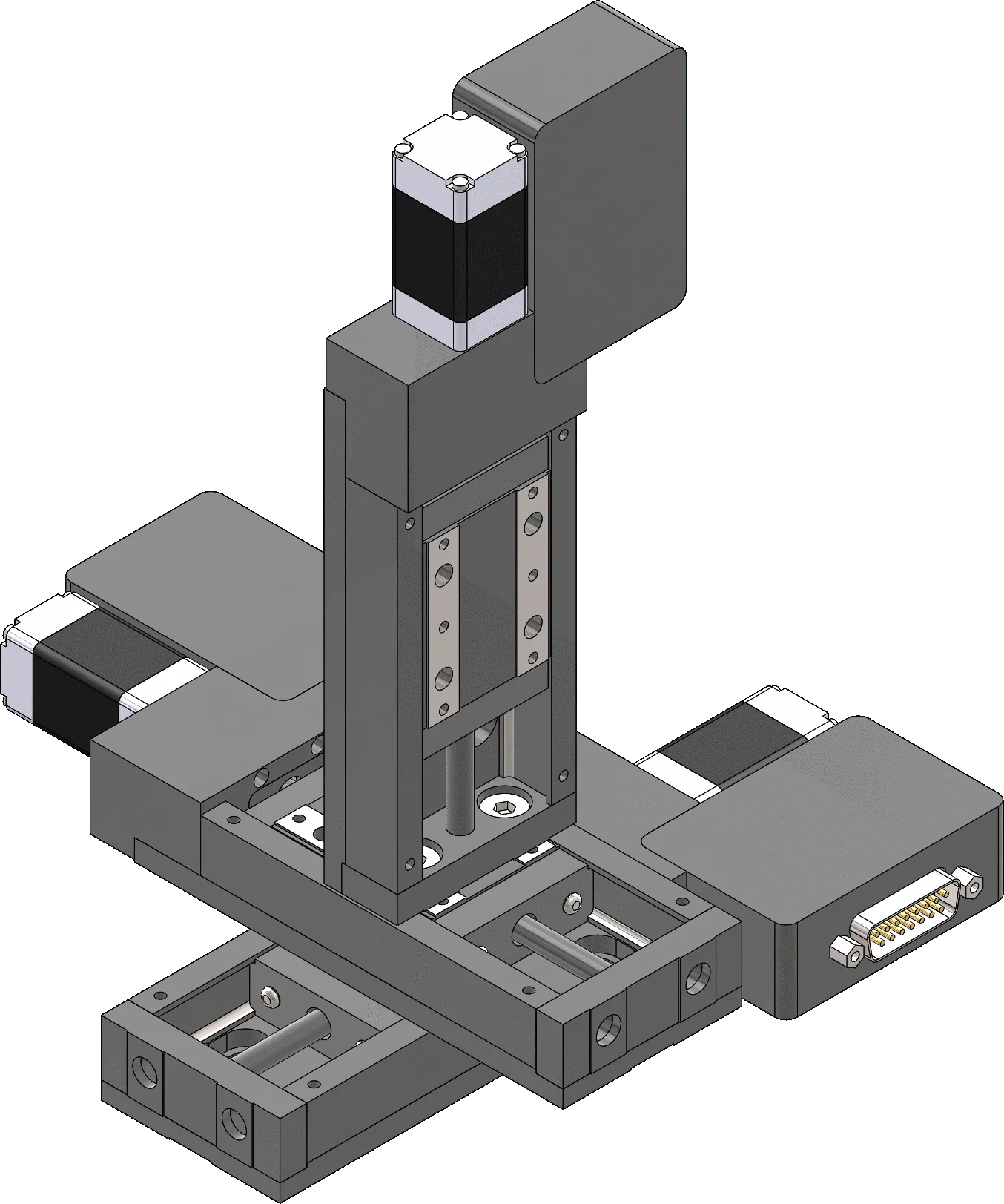

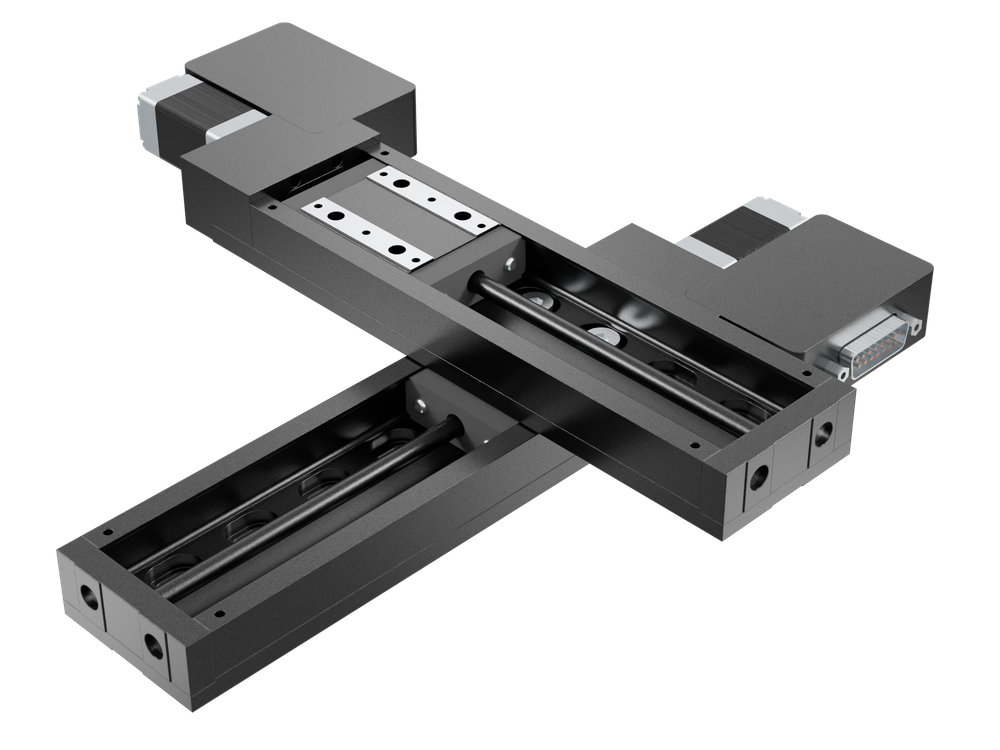

Render of the XYZ LRM

Starting Price

$6,018 (USD)

Low Profile, High Stiffness

Steel LRM XY, XYZ Stages

  • Max travel: 200 x 200 (x 200) mm
  • XY Payload: up to 50 kg
  • XYZ Payload: up to 2.5 kg
  • Speed: up to 100 mm/s
  • Linear Encoder Option

Configure & Buy/Quote

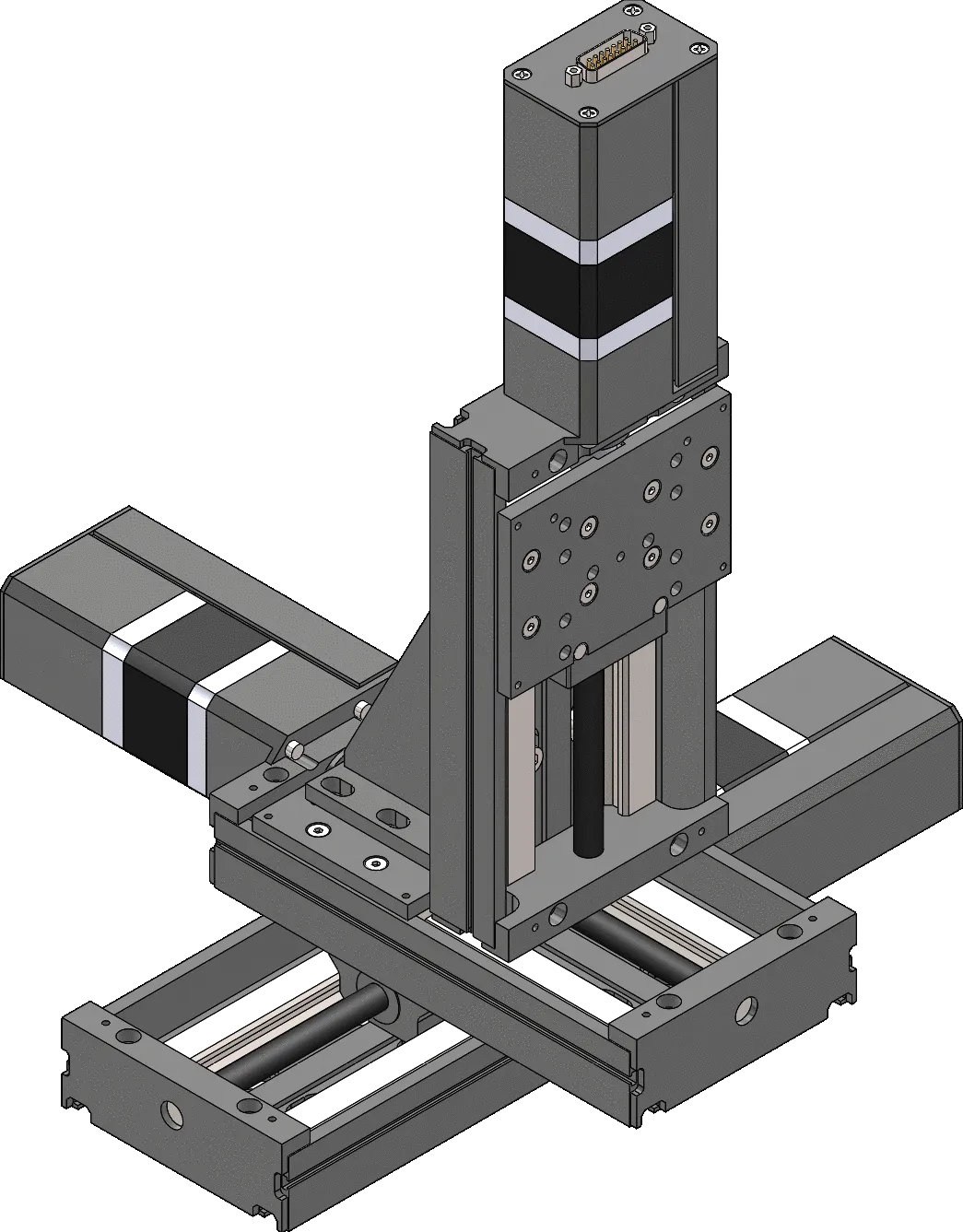

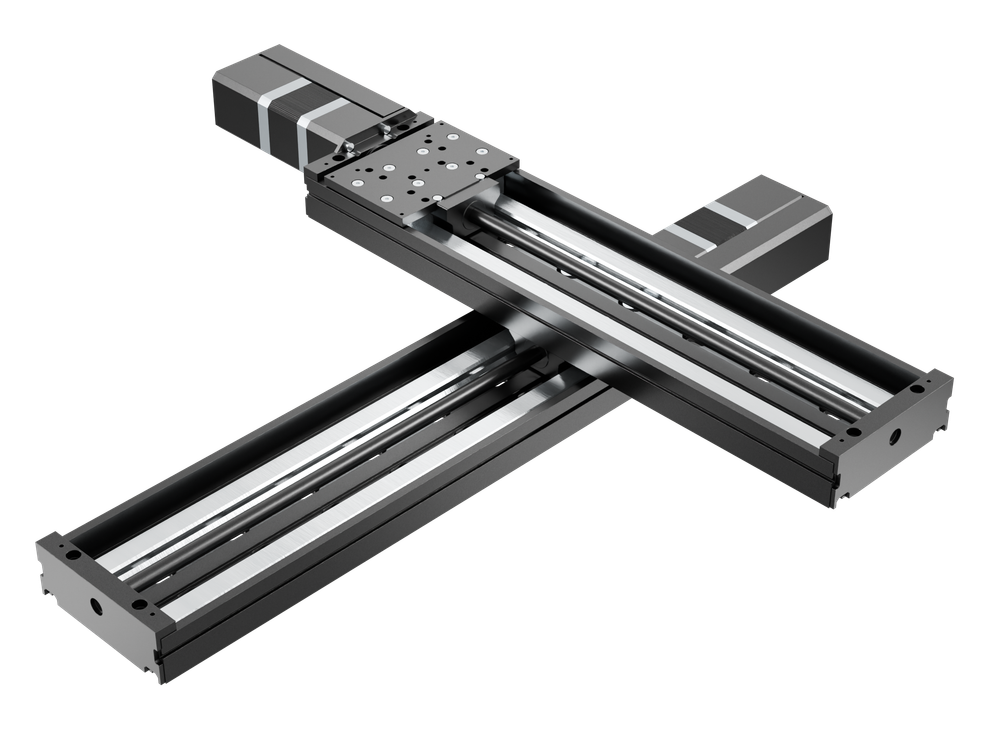

Render of the XYZ LRQ

Starting Price

$6,582 (USD)

Moderate Load, High Stiffness

Configurable LRQ XY, XYZ Stages

  • Max travel: 600 x 600 (x 600) mm
  • XY Payload: up to 50 kg
  • XYZ Payload: up to 10 kg
  • Speed: up to 840 mm/s
  • Dust Cover and Linear Encoder Options

Configure & Buy/Quote

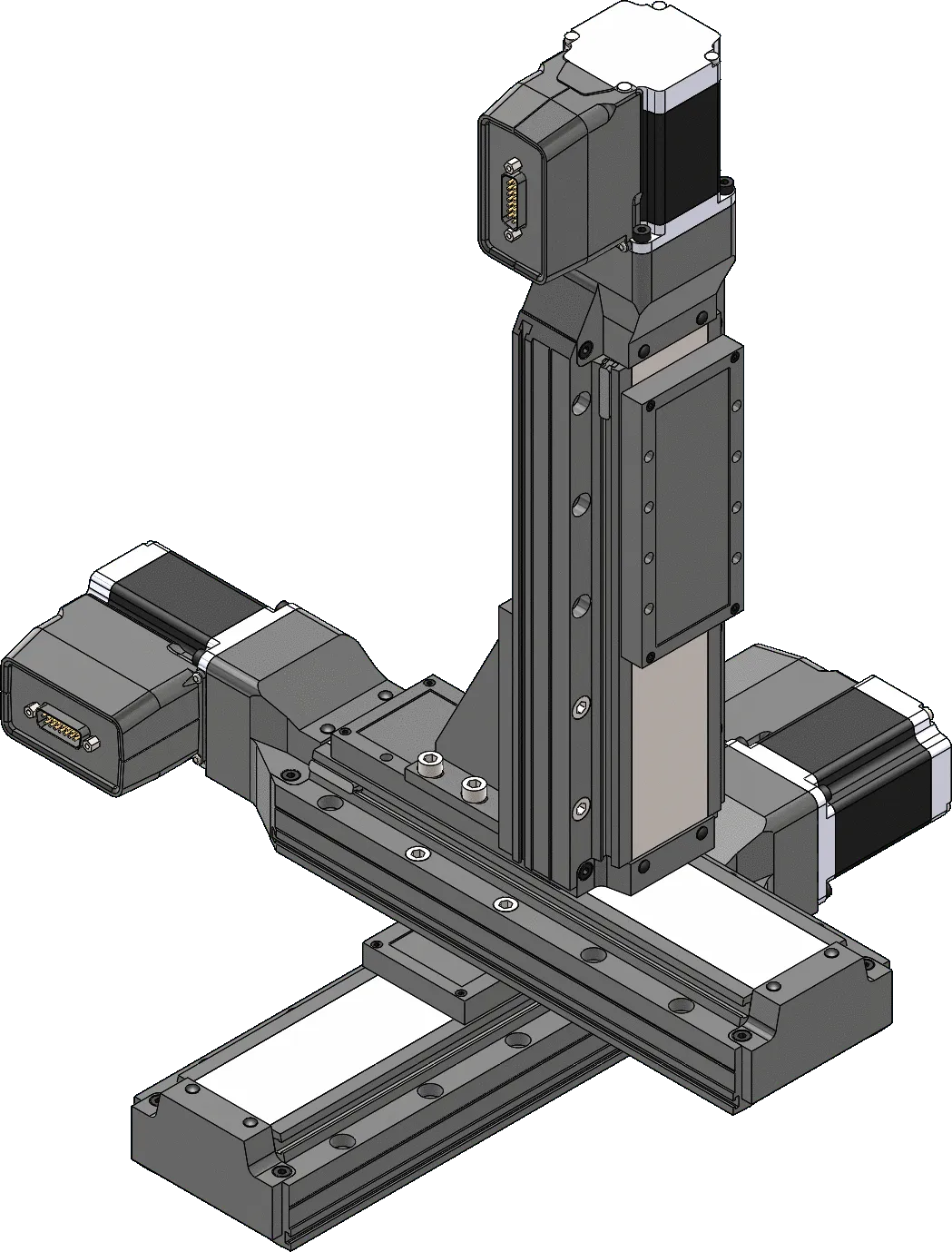

Render of the XYZ LRT

Starting Price

$8,452 (USD)

High Load, High Thrust

Powerful LRT XY, XYZ Stages

  • Max travel: 1000 x 1000 (x 1000) mm
  • XY Payload: up to 160 kg
  • XYZ Payload: up to 120 kg
  • Speed: up to 700 mm/s
  • Linear Encoder Option

Configure & Buy/Quote

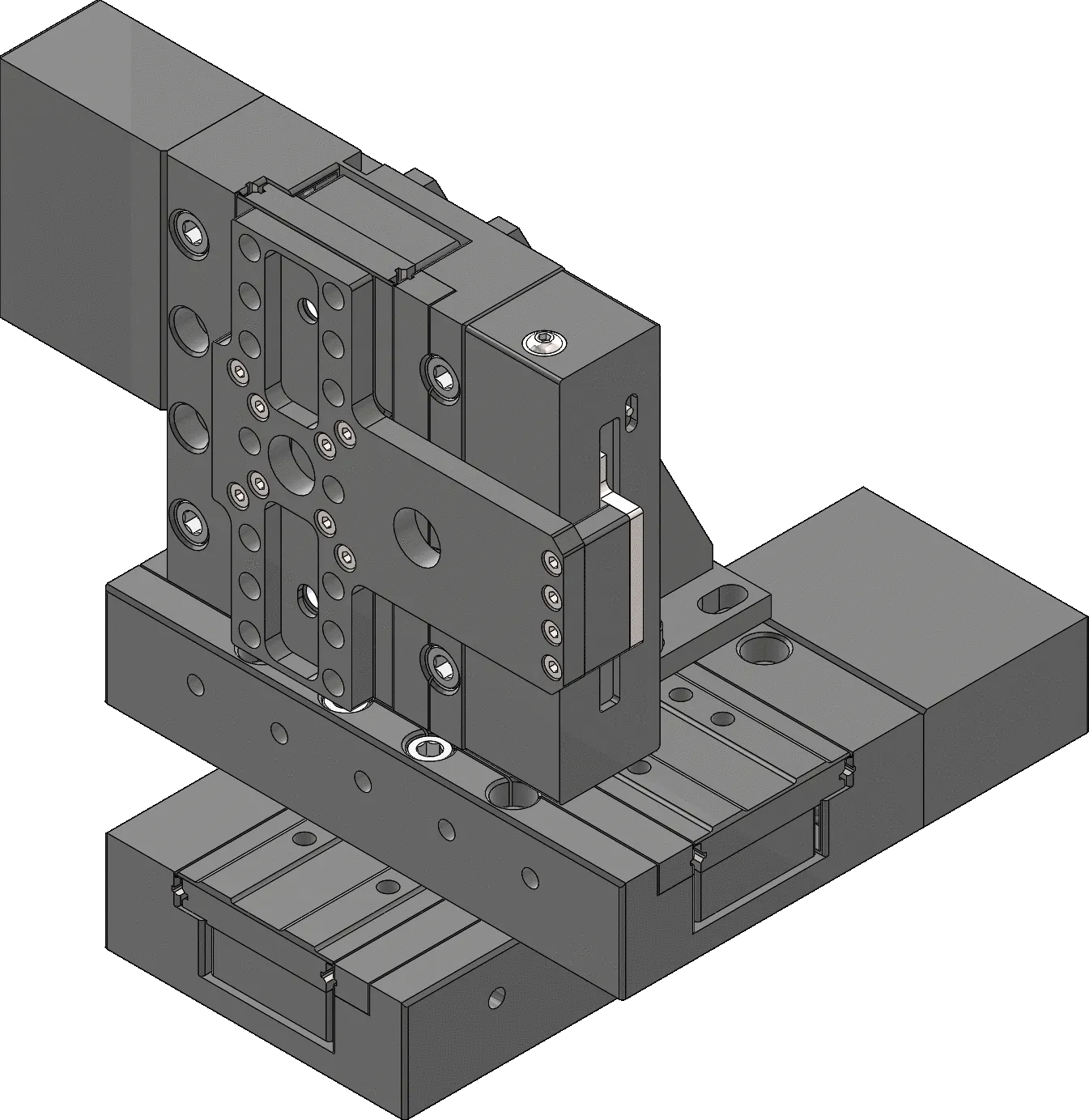

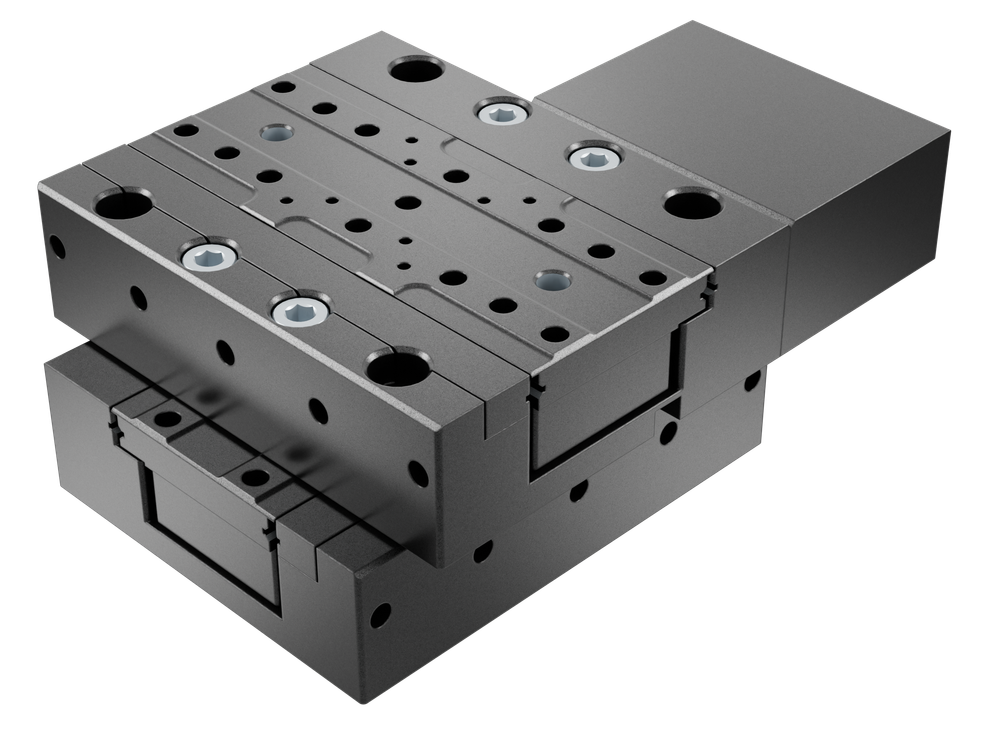

Render of the XYZ LDA

Starting Price

$12,542 (USD)

Low Profile, Linear Motor

LDA XY, XYZ Stages

  • Max travel: 150 x 150 (x 25) mm
  • XY Payload: up to 9.1 kg
  • XYZ Payload: up to 1.6 kg
  • Speed: up to 800 mm/s
  • Reliably Move as Small as 20 nm Steps.

Configure & Buy/Quote

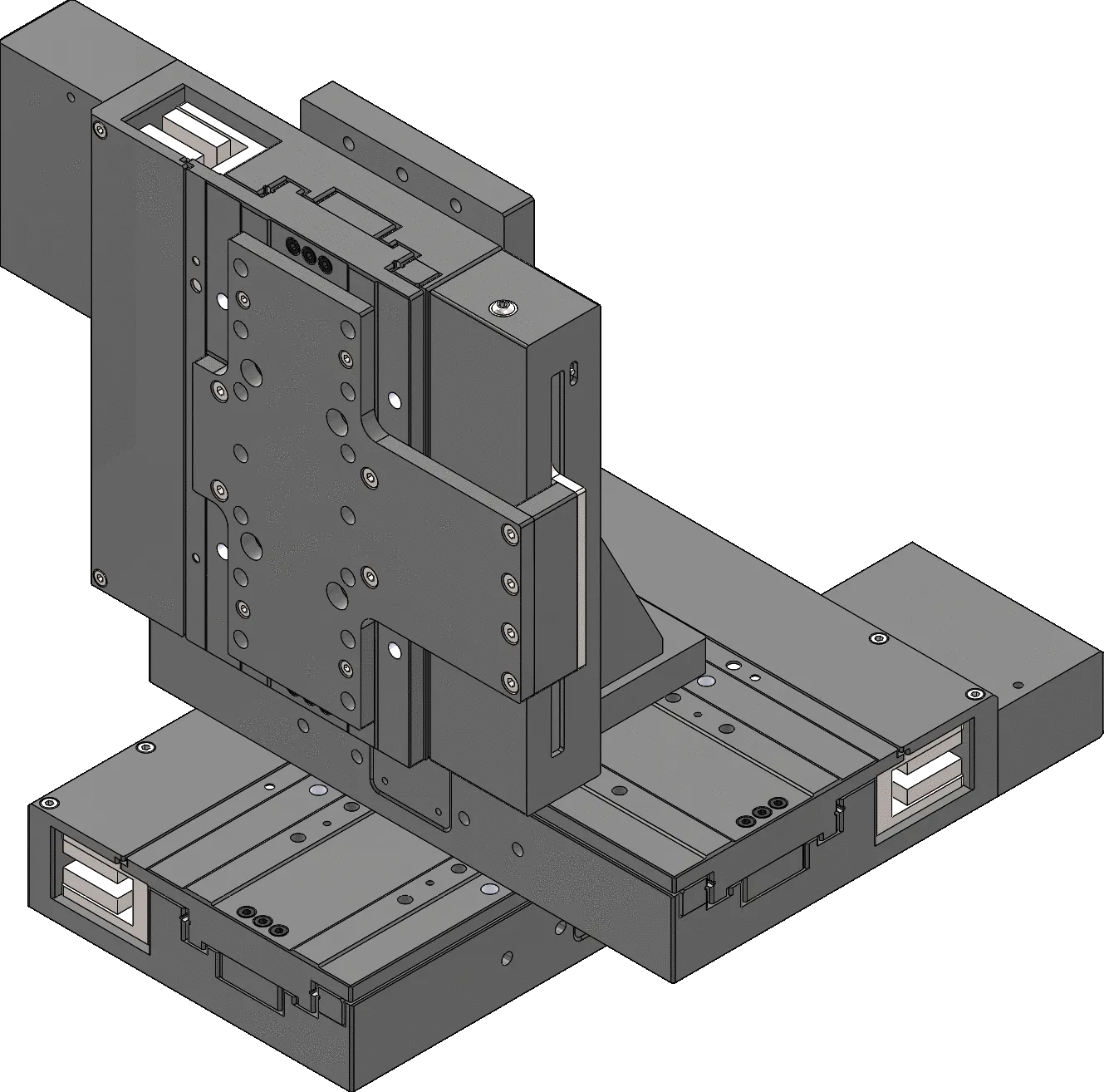

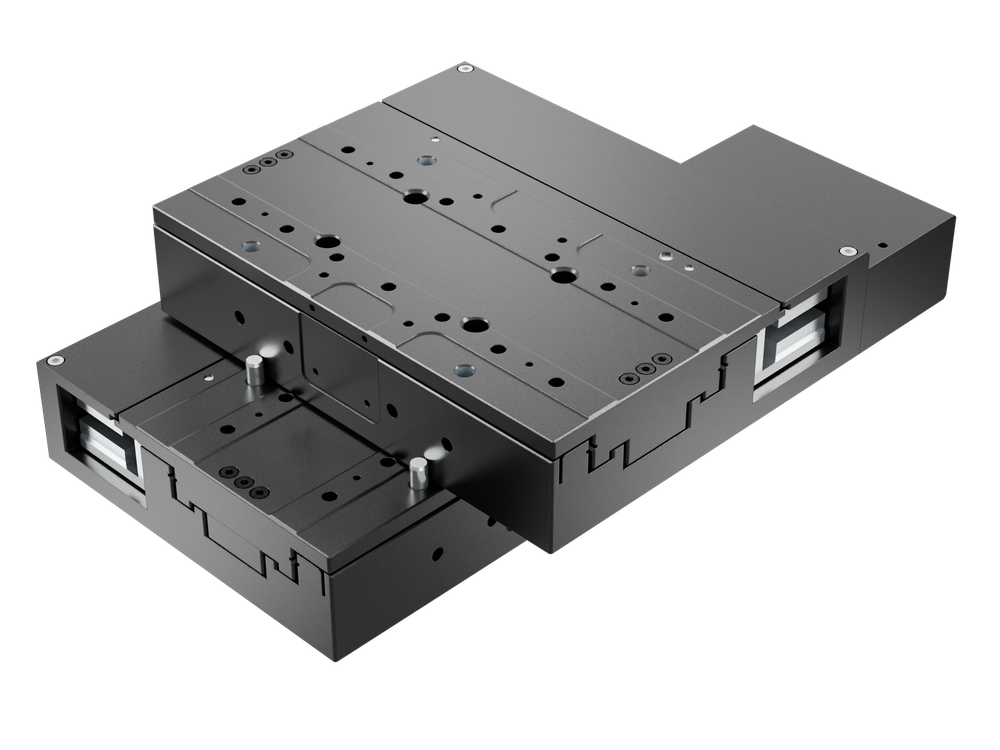

Render of the XYZ LDM

Starting Price

$16,742 (USD)

Precision Linear Motor

LDM XY, XYZ Stages

  • Max Travel: 210 x 210 (x 60) mm
  • XY Payload: up to 14.7 kg
  • XYZ Payload: up to 5.5 kg
  • Speed: up to 1200 mm/s
  • Repeatably Position Within 160 nm

Configure & Buy/Quote
