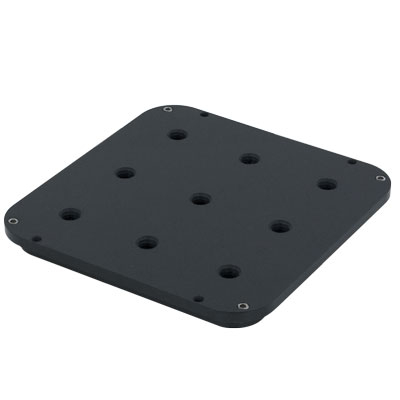

ASR50 Insert, Metric Breadboard

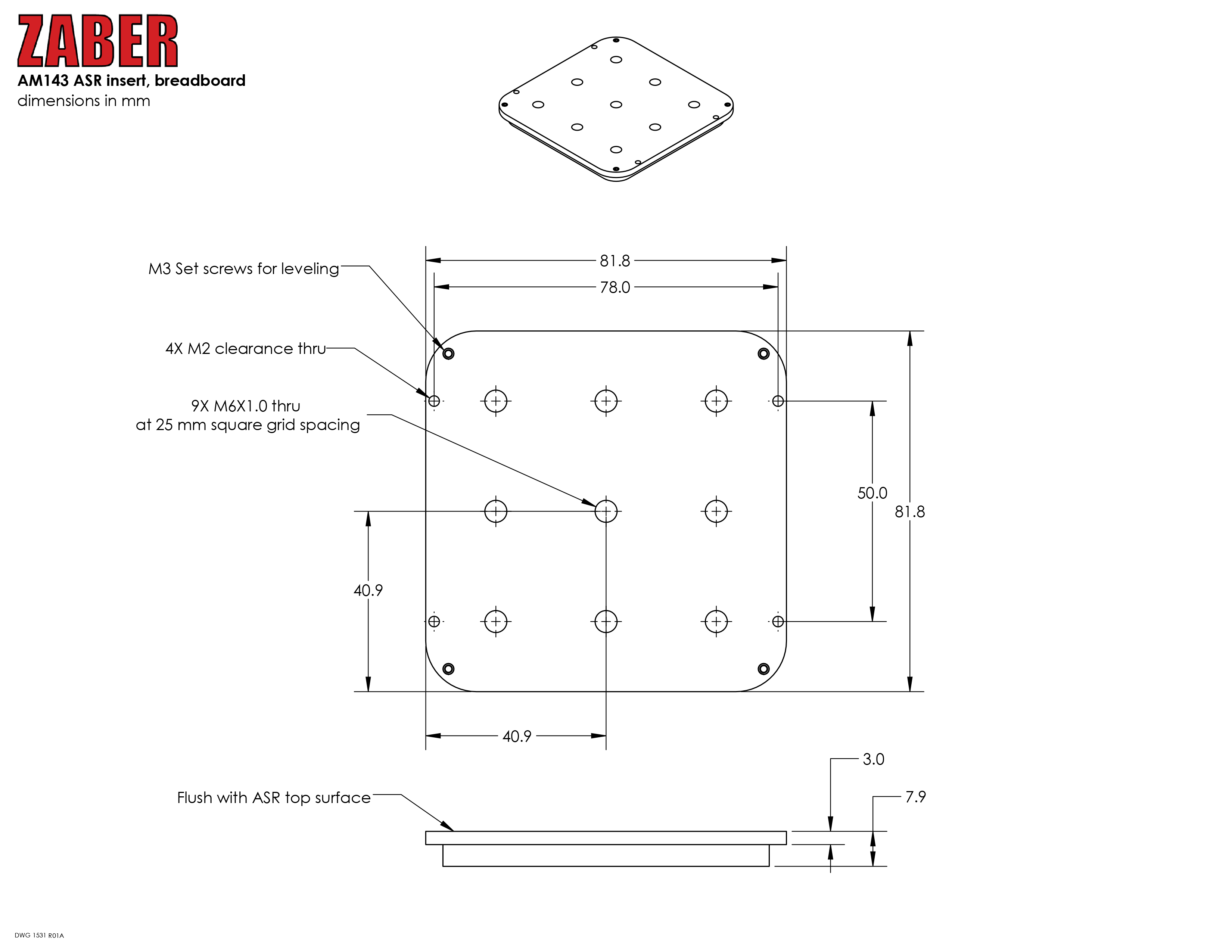

This 82 x 82 mm insert fits into the top plate of ASR 50 x 50 mm travel XY stages. It is held in place by a spring clip on the stage as well as 4 optional M2 screws (included). The AM143 features a grid of M6 tapped holes on 25 mm spacing to allow for easy mounting of other Zaber devices or accessories.
