Multi-Axis Mounting Guide
Building custom multi-axis systems (XY, XYZ, Theta, or Tilt) is simple with Zaber’s modular design.

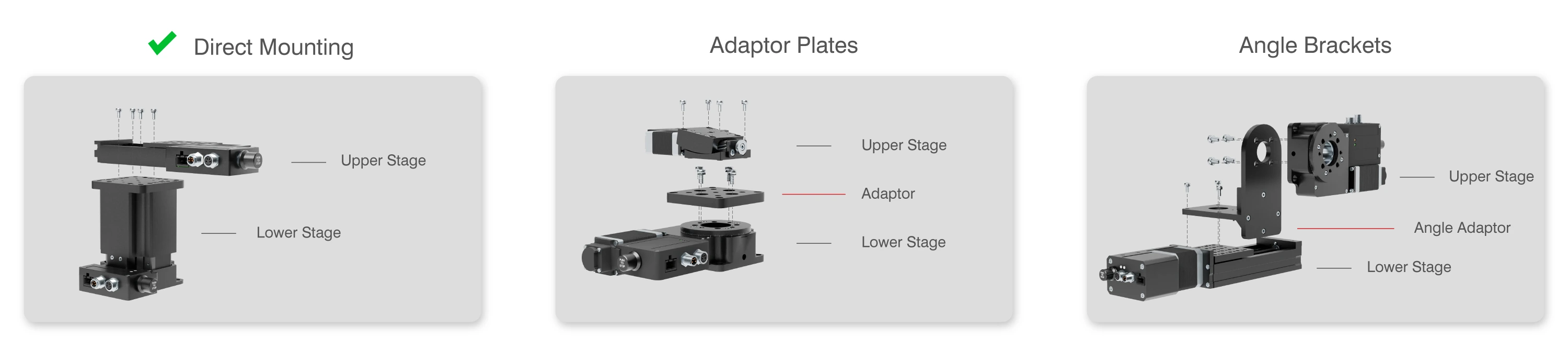

Many stage families share mounting patterns and can be screwed together directly (). Others may require a specific adaptor plate or angle bracket to ensure a secure connection.
How to use this guide:
- Direct Stacking: The first table shows which stages mount directly to one another and which require an adaptor plate (flat).
- Vertical Mounting: The subsequent tables lists angle bracket(s) to mount stages in an L-shaped (XZ) configuration.
Can’t find your configuration? Contact our Applications Team for help designing the exact system for your specific needs.
Standard
Upper Stage Lower Stage | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AP257  AP257 is only compatible with the dust cover (BLQ-C) variant. It will interfere with travel a standard BLQ. | AP257 AP257 is only compatible with the dust cover (BLQ-C) variant. It will interfere with travel a standard BLQ. | AP257 Only LDM040 and LDM060 can fit on the AP257 adaptor plate. AP257 is only compatible with the dust cover (BLQ-C) variant. It will interfere with travel a standard BLQ. | AP257 AP257 is only compatible with the dust cover (BLQ-C) variant. It will interfere with travel a standard BLQ. | AP257 AP257 is only compatible with the dust cover (BLQ-C) variant. It will interfere with travel a standard BLQ. | The RSW will limit the travel of the BLQ stage unless it is a dust cover (BLQ-C) variant. | The integrated controller VSR variant (X-VSR) will limit the travel of the BLQ stage unless it is a dust cover (BLQ-C) variant. | |||||||||||||||
Flux shield should be inserted between DMQ stages to avoid magnetic interference. | |||||||||||||||||||||
AP257 The AP257 is only compatible with the dual carriage (LC40-N2) variant of the LC40. | AP191  AP191 can mount to the LC40 slots on its side or bottom surface. AB188  Use the AB188 to clamp the LC40 down on its bottom surface. | AP257 The AP257 is only compatible with the dual carriage (LC40-N2) variant of the LC40. | AP257 Only LDM040 and LDM060 can fit on the AP257 adaptor plate. The AP257 is only compatible with the dual carriage (LC40-N2) variant of the LC40. | AP257 The AP257 is only compatible with the dual carriage (LC40-N2) variant of the LC40. | AP257 The AP257 is only compatible with the dual carriage (LC40-N2) variant of the LC40. | AP257 The AP257 is only compatible with the dual carriage (LC40-N2) variant of the LC40. | AP257 The AP257 is only compatible with the dual carriage (LC40-N2) variant of the LC40. | ||||||||||||||
AP257 Only LDM040 and LDM060 can fit on the AP257 adaptor plate. | |||||||||||||||||||||
Only the motor-up variants of the RSB060 are compatible with the LDM. | |||||||||||||||||||||
Only the motor-up variants of the RSB060 are compatible with the LDQ. | Only the motor-up variants of the RSB120 are compatible with the LDQ. | ||||||||||||||||||||
Some parallel LRQ (LRQxxxyP) variants will require AP165 to avoid collisions. | AP257 AP257 is only compatible with the dust cover (LRQ-C) variant of the LRQ. Other LRQ models will require AP165 to raise the stage mounting surfacer before mounting AP257. | AP257 AP257 is only compatible with the dust cover (LRQ-C) variant of the LRQ. Other LRQ models will require AP165 to raise the stage mounting surfacer before mounting AP257. | AP257 Only LDM040 and LDM060 can fit on the AP257 adaptor plate. AP257 is only compatible with the dust cover (LRQ-C) variant of the LRQ. Other LRQ models will require AP165 to raise the stage mounting surfacer before mounting AP257. | Some parallel LRQ (LRQxxxyP) variants may require AP165 to avoid collisions. Dust Cover (LRQ-C) variants may require AP163. | Some parallel LRQ (LRQxxxyP) variants will require AP165 to avoid collisions. | AP101  Dust cover variants (LRQ-C) will require AP163 to mount this bracket. | Some parallel LRQ (LRQxxxyP) variants will require AP165 to avoid collisions. | Only the motor-up variants of the RSB060 are compatible with the LRQ. Dust cover LRQ variants (LRQ-C) will require AP163. | AP257 AP257 is only compatible with the dust cover (LRQ-C) variant of the LRQ. Other LRQ models will require AP165 to raise the stage mounting surfacer before mounting AP257. | AP257 AP257 is only compatible with the dust cover (LRQ-C) variant of the LRQ. Other LRQ models will require AP165 to raise the stage mounting surfacer before mounting AP257. | Dust cover LRQ variants (LRQ-C) require AP163. | Dust cover LRQ variants (LRQ-C) require AP163. | |||||||||
AP257 Only LDM040 and LDM060 can fit on the AP257 adaptor plate. | Only the motor-up variants of the RSB060 are compatible with the LRT. | ||||||||||||||||||||
Only the motor-up variants of the RSB060 are compatible with the LRU. | RSB120 is only compatible in the motor up variants (RSBxxxAT or RSBxxxAU). | RST240 can only mount to the wide LRU variants (LRUxxxxy25). | |||||||||||||||||||
AP257 AP257 is only compatible with the dust cover (LSQ-C) variant. It will interfere with travel a standard LSQ. | AP257 AP257 is only compatible with the dust cover (LSQ-C) variant. It will interfere with travel a standard LSQ. | AP257 Only LDM040 and LDM060 can fit on the AP257 adaptor plate. AP257 is only compatible with the dust cover (LSQ-C) variant. It will interfere with travel a standard LSQ. | AP257 AP257 is only compatible with the dust cover (LSQ-C) variant. It will interfere with travel a standard LSQ. | AP257 AP257 is only compatible with the dust cover (LSQ-C) variant. It will interfere with travel a standard LSQ. | The RSW will limit the travel of the LSQ stage unless it is a dust cover (LSQ-C) variant. | The built-in controller variant of the VSR (X-VSR) will limit the travel of the LSQ stage unless it is a dust cover (LSQ-C) variant. | |||||||||||||||
Only the motor-up variants of the RSB060 are compatible with the RST120. | |||||||||||||||||||||
