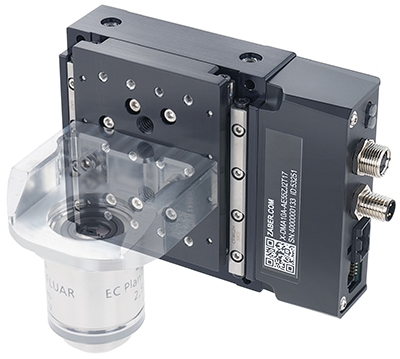

Representative Image
DMA Family
DMA Objective Focus Stage
- Non-contact direct-drive motor for maximum throughput and reliability
- 1 nm resolution encoder and 10 nm step size
- Maximize imaging throughput with 15 ms move and settle time
- Adjustable frictionless magnetic counterbalance available for vertical orientations
- Simplify integration with built-in controller supporting triggering and encoder outputs, and free software for advanced automation
| Shortest Travel | Longest Travel | Best Accuracy | Best Repeatability | Best Minimum Incremental Move |
|---|---|---|---|---|
10 mm (0.394") | 10 mm (0.394") | 8 µm (0.000315") | < 0.05 µm (< 0.000002") | 10 nm |
| Series Name | Orientation | Built-In Controller | Built-In Encoder | Built-In Motor | Price Range ( USD ) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|---|
| X-DMA-AE | Horizontal |  | Linear | Linear /Direct Drive | $3,905 – $4,491 | Coming Q2, 2026 | |
| DMA-AE | Horizontal |  | Linear | Linear /Direct Drive | $3,159 | Coming Q2, 2026 | |
| X-DMA-AEZ | Vertical | | Linear | Linear /Direct Drive | $4,505 – $5,091 | Coming Q2, 2026 | |
| DMA-AEZ | Vertical | | Linear | Linear /Direct Drive | $3,759 | Coming Q2, 2026 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
DMA Customization
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day
