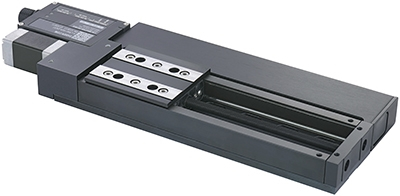

Representative Image
LRM Family
Compact, High Stiffness, Screw Drive Linear Stage
- Steel construction for excellent stiffness and thermal stability
- 25, 50, 100, 150, 200 mm travel
- Recirculating ball bearings for high load and long lifetime
- Built-in controller or motor-only models
- Motor encoder and 50 nm linear encoder options for slip/stall detection and position correction
- Contact us for information and custom options for cleanroom use
| Shortest Travel | Longest Travel | Best Accuracy | Best Repeatability | Highest Speed | Highest Thrust | Load |
|---|---|---|---|---|---|---|
25 mm (0.984") | 200 mm (7.874") | 8 µm (0.000315") | < 2.5 µm (< 0.000098") | 100 mm/s (3.937"/s) | 50 N (11.2 lb) | 500 N (112.1 lb) |
Have a Question?
| Series Name | Built-In Controller | Built-In Encoder | Built-In Motor | Price Range (USD) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|
| X-LRM-DE | Available | Linear | Stepper | $5,576 – $6,698 | 4–7 days | |
| X-LRM-E | Available | Motor/rotary | Stepper | $3,205 – $4,443 | 1–5 days | |
| X-LRM | Available | Not available | Stepper | $2,987 – $4,245 | 1–5 days | |
| LRM-E | Not available | Motor/rotary | Stepper | $2,662 – $3,657 | 1–5 days | |
| LRM | Not available | Not available | Stepper | $2,413 – $3,409 | 1–5 days | |
| XY & XYZ Stages | ||||||
| XY | Available | Available | Stepper | $6,137 – $11,635 | 1–7 days | |
| XYZ | Available | Available | Stepper | $10,412 – $21,041 | 1–7 days | |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Customization
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization Team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day
