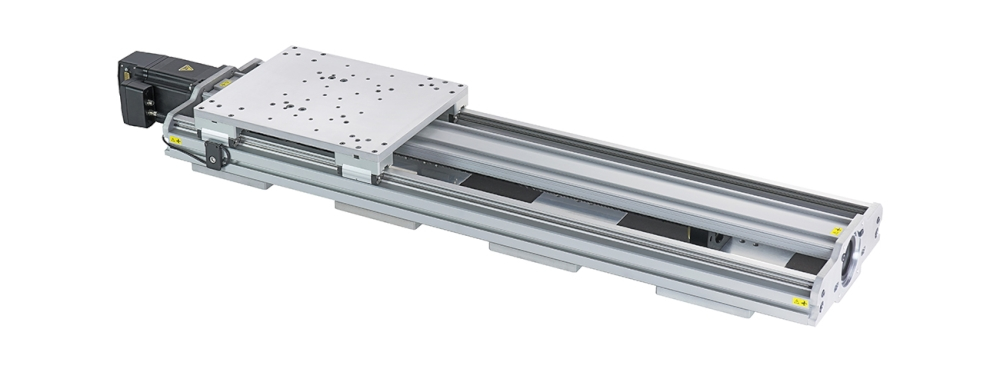

LRU-E Series
High Load, High Stiffness, Screw Drive Linear Stage with Optional Brakes
- 250, 500, 1000, 1500, 2000 mm travel
- 500 kg load capacity and up to 360 Nm moment load capacity
- Achieves thrust up to 2850 N and speeds up to 400 mm/s
- Large mounting platform with high moment stiffness
- Built-in, 500 CPR motor encoder provides slip/stall detection and recovery
- Designed for use with Zaber's X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
- Optional integrated power-off brake for vertical applications
Part Numbering & Options
Showing 20 of 20 Parts.
Compatible Accessories
