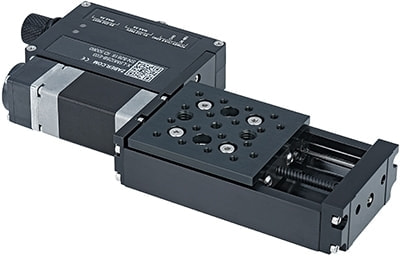

LSM Family
Compact, Screw Drive Linear Stage
- Small form factor ideal for many desktop applications
- 25, 50, 100, 150, 200 mm travel
- Recirculating ball bearings for high load and long lifetime

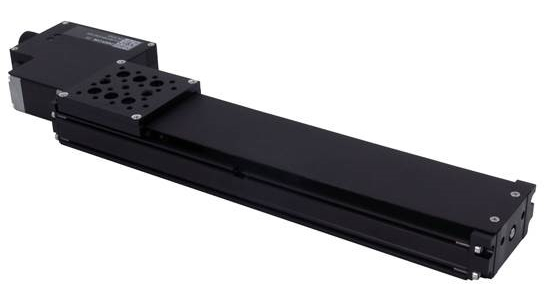

- Dust cover and vacuum options available
- Multiple stages can be directly mounted in XYZ configuration
- Built-in controller or motor-only models
- Motor encoder option for slip/stall detection and automatic recovery
- Engineered for low particle generation in sensitive, high-cleanliness environments (ISO Class 4 suitable). Review our cleanroom guide for more information.
| Shortest Travel | Longest Travel | Best Accuracy | Best Repeatability | Highest Speed | Highest Thrust | Load |
|---|---|---|---|---|---|---|
25.4 mm (1") | 203.2 mm (8") | 15 µm (0.000591") | < 3 µm (< 0.000118") | 104 mm/s (4.094"/s) | 55 N (12.3 lb) | 250 N (56.1 lb) |
Have a Question?
| Series Name | Built-In Controller | Dust Cover | Built-In Encoder | Built-In Motor | Vacuum Rating | Price Range (USD) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|---|---|
| X-LSM-E | Available | Not available | Motor/rotary | Stepper | Available | $2,469 – $3,304 | 1–5 days | |
| X-LSM-EC | Available | Available | Motor/rotary | Stepper | Available | $2,669 – $3,504 | 1–5 days | |
| X-LSM | Available | Not available | Not available | Stepper | Available | $2,208 – $3,044 | 1–5 days | |
| X-LSM-C | Available | Available | Not available | Stepper | Available | $2,408 – $3,244 | 1–5 days | |
| LSM-E | Not available | Not available | Motor/rotary | Stepper | Available | $1,898 – $2,506 | 1–5 days | |
| LSM-EC | Not available | Available | Motor/rotary | Stepper | Available | $2,098 – $2,706 | 1–5 days | |
| LSM | Not available | Not available | Not available | Stepper | Available | $1,662 – $2,268 | 1–5 days | |
| LSM-C | Not available | Available | Not available | Stepper | Available | $1,862 – $2,468 | 1–5 days | |
| X-LSM-SV2 | Available | Not available | Not available | Stepper | High (10-6 torr) | $5,949 – $6,834 | 7–10 days | |
| LSM-V2 | Not available | Not available | Not available | Stepper | High (10-6 torr) | $5,379 – $6,231 | 7–10 days | |
| X-LSM-SV1 | Available | Not available | Not available | Stepper | Low (10-3 torr) | $4,651 – $5,559 | 4–7 days | |
| LSM-V1 | Not available | Not available | Not available | Stepper | Low (10-3 torr) | $4,123 – $4,995 | 4–7 days | |

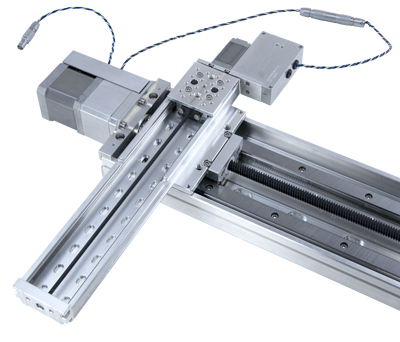

| XY & XYZ Stages | ||||||||
| XY | Available | Not available | Available | Stepper | Available | $4,490 – $9,051 | 1–5 days | |
| XYZ | Available | Not available | Available | Stepper | Available | $7,580 – $11,872 | 1–5 days | |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Customization Examples
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization Team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day

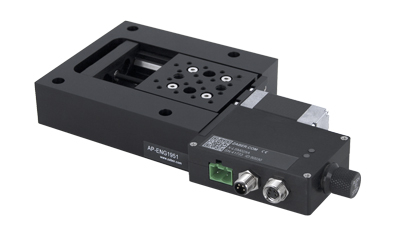

Custom Mounting Plate for X-LSM
This custom mounting plate wraps around the sides of the X-LSM linear stage to create a stationary mounting surface that is flush with the surface of the moving stage top. This custom adaptor also has locating holes for easy mounting.

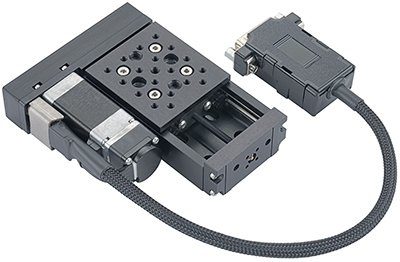

Custom Parallel Drive LSM
This parallel drive configuration of the LSM-E minimizes the total length of the stage with a side-mounted motor and shaft encoder. The compact form factor is ideal for space-constrained applications. For multi-axis motion, additional parallel drive or inline stages can be combined to optimize the overall system footprint. Email contact@zaber.com for more information.
Custom XYZ Gantry with Adaptor for an SBS Standard Multiwell Plate
This XYZ system is made of three linear stages mounted together with AB103B angle brackets. In addition, a custom-made adaptor holding a SBS standard (127.5 x 85 mm) multiwell plate is mounted to the Z-axis stage. The high resolution and repeatability offered by the system make it suitable for automating microscopy or pipetting applications. The stages can also be configured in different ways by removing a stage for an XY set-up, or changing the orientation and placement.

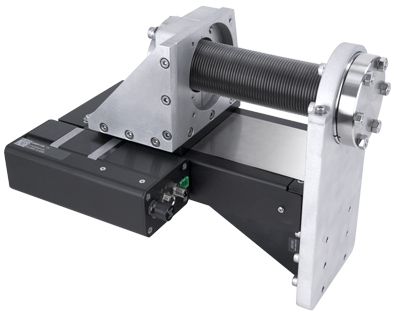

Custom Ultra High Vacuum, Motorized Linear Bellows Stage
In this custom application for a customer an X-LRQ-EC stage has been mated to a 2.75 inch conflat, edge welded bellows. The combination allows for 100 mm of linear travel in an ultra high vacuum (UHV) environment with stage and all electronics mounted external to the vacuum chamber. Reaching pressures as low as 10-9 Torr this configuration allows for simple precision motion control. The LRQ family of linear stage was a good candidate for this specific application, but other linear stages may also be appropriate depending on requirements.
