LRQ Family
Moderate Load, High Stiffness, Screw Drive Linear Stage
- Recirculating ball bearings for high load and long lifetime
- 75, 150, 300, 450, 600 mm travel
- Ball screw and lead screw options
- Inline and parallel drive configurations
- Motor encoder and 50 nm linear encoder options for slip/ stall detection and position correction
- Built-in controller or motor-only models
- Dust cover and vacuum options available
- Contact us for information and custom options for cleanroom use
| Shortest Travel | Longest Travel | Best Accuracy | Best Repeatability | Highest Speed | Highest Thrust | Load |
|---|---|---|---|---|---|---|
75 mm (2.953") | 600 mm (23.622") | 10 µm (0.000394") | < 2 µm (< 0.000079") | 840 mm/s (33.071"/s) | 500 N (112.1 lb) | 1000 N (224.3 lb) |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
LRQ Customization Examples
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization Team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day
Custom Large Platform Vertical Stage
This image shows a custom large platform vertical stage consisting of two 75 mm travel LRQ-EC stages and an AP181 adaptor. The LRQ stages use the lockstep synchronization feature of the X-MCC to move together. This system is well suited for vertical applications requiring increased travel lengths or high stiffness. Longer travel lengths are available.
Vacuum Compatible Connectors

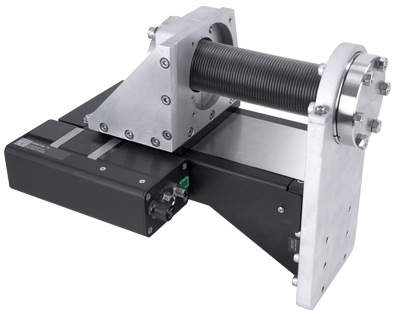

We can provide vacuum compatible connectors (shown) on request. Please contact an application engineer for more details.
Zaber Technologies: Customized Multi-Axis Vacuum Devices
With small modifications to the stage top, our X-LSM-SV vacuum compatible motorized stages can be mounted directly to the X-LRQ-SV.
Custom XYZ Gantry System

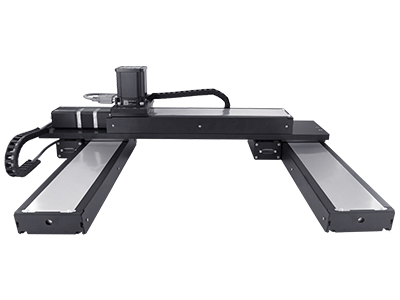

This XYZ gantry system uses the LRQ-EC series linear stages with dust covers to create a compact and protected system. Two stages are used in parallel to provide a stiff base for the system; they use the lockstep synchronization feature of the X-MCB2 to move together and feature side mounted motors to reduce the depth of the system. A VSR40A-T3 stage is used in the vertical axis to give the system a clear platform. The system is customized with tracking for cable organization.
