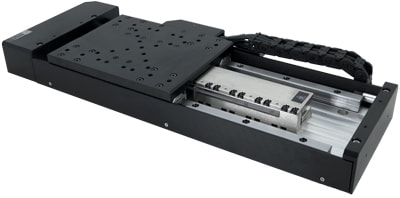

Representative Image
LDQ Family
Long Travel, Linear Motor Stage
- Linear motor drive for high speed silent operation
- 75, 150, 300, 450, 600, 1000 mm travel
- 1 nm resolution linear encoder for direct position measurement and correction
- Built-in controller or motor-only models
- Contact us for information and custom options for cleanroom use
| Shortest Travel | Longest Travel | Best Accuracy | Best Repeatability | Highest Speed | Highest Thrust | Load |
|---|---|---|---|---|---|---|
75 mm (2.953") | 1000 mm (39.370") | 2.5 µm (0.000098") | < 0.3 µm (< 0.000012") | 1500 mm/s (59.055"/s) | 95 N (21.3 lb) | 200 N (44.9 lb) |
| Series Name | Built-In Controller | Built-In Encoder | Built-In Motor | Price Range (USD) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|
| X-LDQ-AE |  | Linear | Linear /Direct Drive | $6,854 – $11,817 | 1-5 Days | |
| LDQ-AE | Linear | Linear /Direct Drive | $6,057 – $10,551 | 1-5 Days |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
LDQ Customization
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day
