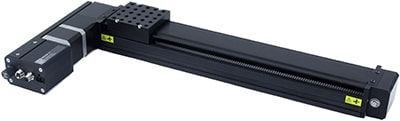

Representative Image
BLQ Family
Long Travel, Belt Drive Linear Stage
- Belt drive for long travel and high speed
- 70, 145, 295, 445, 595, 1045, 1495, 2095, 3000 mm travel
- Dust cover options to keep out moderate debris
- Built-in controller
- Motor encoder for slip/stall detection and automatic recovery
| Shortest Travel | Longest Travel | Best Accuracy | Best Repeatability | Highest Speed | Highest Thrust | Load |
|---|---|---|---|---|---|---|
70 mm (2.756") | 3000 mm (118.110") | 200 µm (0.007874") | < 20 µm (< 0.000787") | 2000 mm/s (78.740"/s) | 55 N (12.3 lb) | 200 N (44.9 lb) |
| Series Name | Built-In Controller | Built-In Encoder | Built-In Motor | Dust Cover | Price Range (USD) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|---|
| X-BLQ-E |  | Motor/rotary | Stepper | $2,613 – $5,181 | 1-5 Days | ||
| X-BLQ-EC | | Motor/rotary | Stepper | | $2,924 – $4,112 | 1-5 Days | |
| BLQ-EC | Motor/rotary | Stepper | | $2,043 – $3,067 | 1-5 Days | ||
| BLQ-E | Motor/rotary | Stepper | $1,763 – $4,133 | 1-5 Days |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
BLQ Customization
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day
