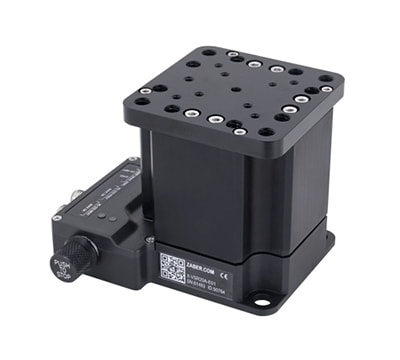

VSR Family
Telescoping, Screw Drive
- 20 or 40 mm travel
- 10 kg load capacity
- Vacuum rated versions available
- Built-in controller or motor models only
- Motor encoder option for slip/stall detection and automatic recovery
- 55 or 85 mm retracted height
| Shortest Travel | Longest Travel | Best Accuracy | Best Backlash | Highest Speed | Highest Thrust | Load |
|---|---|---|---|---|---|---|
20 mm (0.787") | 40 mm (1.575") | 35 µm (0.001378") | < 35 µm (< 0.001378") | 55 mm/s (2.165"/s) | 200 N (44.9 lb) | 100 N (22.4 lb) |
Have a Question?
| Series Name | Built-In Controller | Built-In Encoder | Built-In Motor | Vacuum Rating | Price Range (USD) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|---|
| X-VSR | Available | Not available | Stepper | Not available | $2,692 – $3,183 | 1–5 days | |
| X-VSR-E | Available | Motor/rotary | Stepper | Not available | $3,025 – $3,193 | 1–5 days | |
| VSR | Not available | Not available | Stepper | Not available | $2,148 – $2,471 | 1–5 days | |
| VSR-E | Not available | Motor/rotary | Stepper | Not available | $2,671 | 1–5 days | |
| X-VSR-SV2 | Available | Not available | Stepper | High (10-6 torr) | $6,003 – $6,689 | 7–10 days | |
| VSR-V2 | Not available | Not available | Stepper | High (10-6 torr) | $5,515 – $6,185 | 7–10 days | |
| X-VSR-SV1 | Available | Not available | Stepper | Low (10-3 torr) | $3,844 – $4,366 | 4–7 days | |
| VSR-V1 | Not available | Not available | Stepper | Low (10-3 torr) | $3,584 – $4,104 | 4–7 days |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Customization Examples
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization Team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day

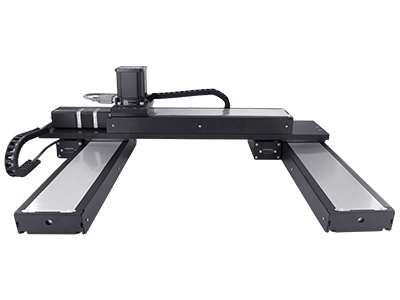

Custom XYZ Gantry System
This XYZ gantry system uses the LRQ-EC series linear stages with dust covers to create a compact and protected system. Two stages are used in parallel to provide a stiff base for the system; they use the lockstep synchronization feature of the X-MCB2 to move together and feature side mounted motors to reduce the depth of the system. A VSR40A-T3 stage is used in the vertical axis to give the system a clear platform. The system is customized with tracking for cable organization.

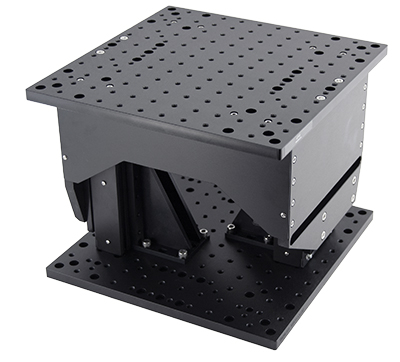

Custom Large Platform Vertical Stage
This image shows a custom large platform vertical stage consisting of two 75 mm travel LRQ-EC stages and an AP181 adaptor. The LRQ stages use the lockstep synchronization feature of the X-MCC to move together. This system is well suited for vertical applications requiring increased travel lengths or high stiffness. Longer travel lengths are available.

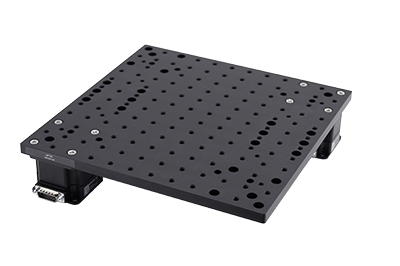

Large Platform Vertical Stage
This image shows two VSR stages connected in parallel using an AP181 adaptor to form a large platform vertical stage. The VSR stages use the lockstep synchronization feature of the X-MCC to move together. This type of system is recommended for applications requiring higher stiffness, load capacity, and parallelism than individual VSR stages. Many different configurations with up to 4 VSR stages and 40 mm of travel can be arranged depending on application requirements.
