LDM Family

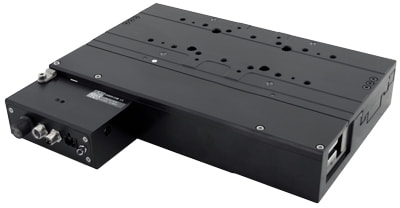

Ultra Precision, Linear Motor Stage (Horizontal & Vertical)
- Contactless direct-drive motor for high speed silent operation and long lifetime
- 40, 60, 110, 210 mm travel
- Crossed-roller bearing design for high accuracy
- 1 nm resolution linear encoder
- 4 nm minimum incremental move
- Vertical orientation option with magnetic counterbalance
- Engineered for low particle generation in sensitive, high-cleanliness environments (ISO Class 4 suitable). Review our cleanroom guide for more information.
| Shortest Travel | Longest Travel | Best Accuracy | Best Repeatability | Highest Speed | Best Minimum Incremental Move | Highest Thrust | Load |
|---|---|---|---|---|---|---|---|
40 mm (1.575") | 210 mm (8.268") | 1 µm (0.000039") | < 0.08 µm (< 0.000003") | 1200 mm/s (47.244"/s) | 4 nm | 100 N (22.4 lb) | 185 N (41.5 lb) |
Have a Question?
| Series Name | Built-In Controller | Built-In Encoder | Built-In Motor | Orientation | Price Range (USD) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|---|
| X-LDM-AE | Available | Linear | Linear /Direct Drive | Horizontal | $8,413 – $10,871 | 4–7 days | |
| LDM-AE | Not available | Linear | Linear /Direct Drive | Horizontal | $7,650 – $9,830 | 4–7 days | |
| X-LDM-AEZ | Available | Linear | Linear /Direct Drive | Vertical | $11,577 – $11,833 | 5–10 days | |
| LDM-AEZ | Not available | Linear | Linear /Direct Drive | Vertical | $10,763 | 5–10 days | |
| XY & XYZ Stages | |||||||
| XY | Available | Linear | Linear /Direct Drive | Horizontal | $17,077 – $24,121 | 4–7 days | |
| XYZ | Available | Linear | Linear /Direct Drive | Vertical | $29,289 – $35,568 | 5–10 days | |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Customization
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization Team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day
