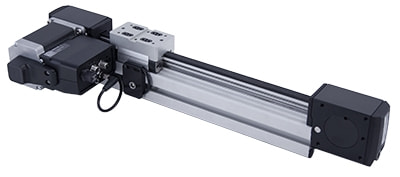

LC40 Family
Configurable, Belt Drive, T-Slot Profile Linear Stage
- T-slot extrusion with integrated linear bearing
- Recirculating ball bearings for high load and lifetime
- Power-off brake option for load protection during power interrupts
- Standard travel from 100 - 3500 mm in 50 mm increments
- Compatible with most 40 mm T-slot framing
| Shortest Travel | Longest Travel | Best Accuracy | Best Repeatability | Highest Speed | Highest Thrust | Load |
|---|---|---|---|---|---|---|
30 mm (1.181") | 3500 mm (137.795") | 197.5 µm (0.007776") | < 20 µm (< 0.000787") | 3000 mm/s (118.11"/s) | 90 N (20.2 lb) | 1000 N (224.3 lb) |
Have a Question?
| Series Name | Built-In Controller | Built-In Encoder | Built-In Motor | Price Range (USD) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|
| LC40B-KM01 | Available | Motor/rotary | Stepper | $2,346 – $4,862 | 3–7 days | |
| LC40C-KM03 | Available | Motor/rotary | Stepper | $3,193 – $4,326 | 3–7 days | |
| LC40B-KM02 | Not available | Motor/rotary | Stepper | $1,928 – $4,196 | 3–7 days | |
| LC40C-KM04 | Not available | Motor/rotary | Stepper | $2,775 – $3,660 | 3–7 days | |
| LC40 | Not available | Not available | Not available | $319 – $2,938 | 3–7 days | |
| LC40C | Not available | Not available | Not available | $2,292 – $2,402 | 3–7 days | |
| GANTRIES | ||||||
| XY Single X Motor | Available | Available | Stepper | $5,641 – $13,373 | 3–7 days | |
| XY Dual Motor | Available | Available | Stepper | $8,752 – $16,093 | 3–7 days | |
| XY Dual Motor Quad Carriage | Available | Available | Stepper | $10,270 – $18,662 | 3–7 days | |
| XYZ | Available | Available | Stepper | $14,139 – $22,855 | 3–7 days | |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Customization Examples
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization Team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day
XYZ Scanning System

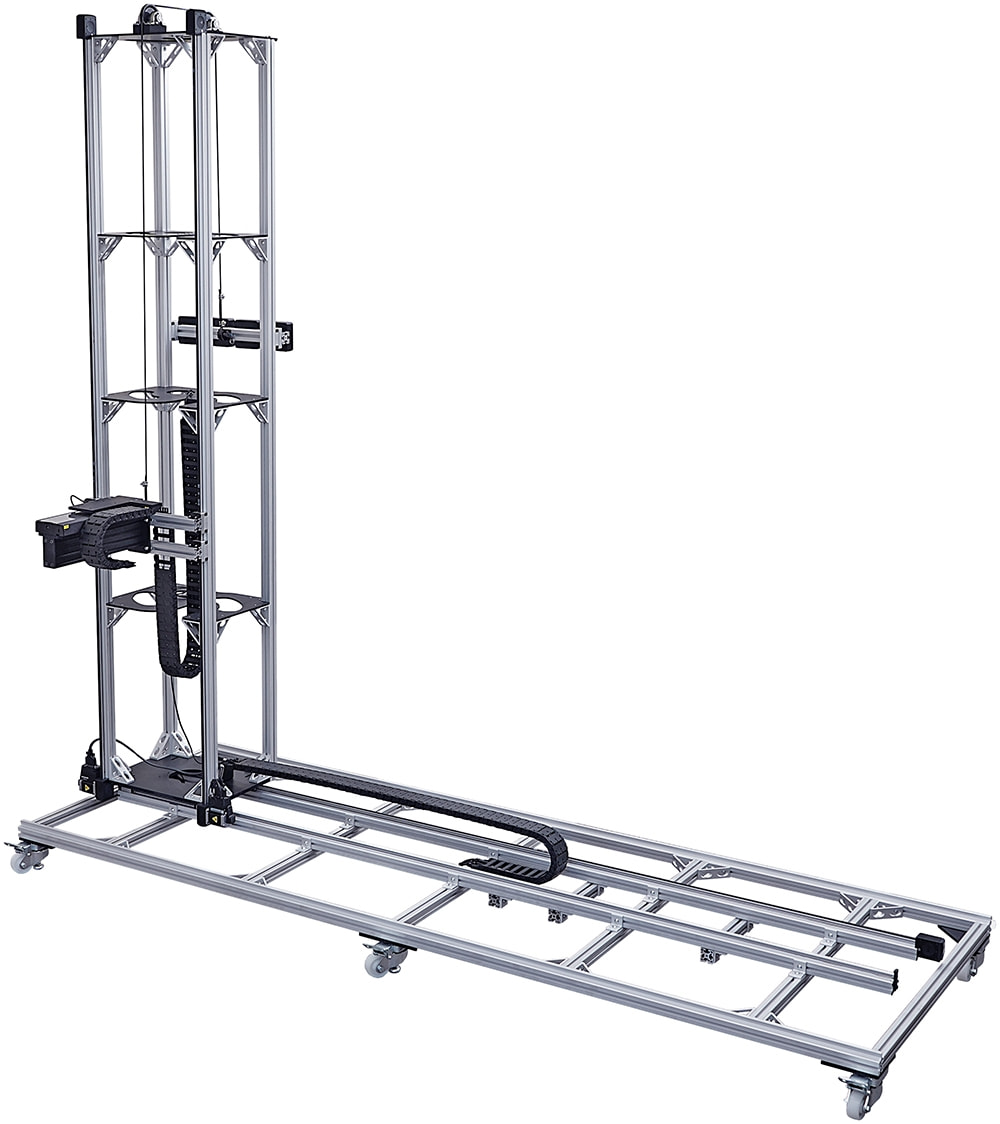

This customized long travel XYZ scanning system for digitizing art demonstrates the versatility of the LC40B series linear stages. A driven axis and a passive guide combine to make the long horizontal gantry axis, while two motorized axes drive the vertical axis in lockstep. Additional carriages are included on each axis to help stabilize and balance the load. The vertical load is also balanced with a counter weight mounted to two passive LC40G rails on the back half of the tower, which means that even when the motors are unpowered the vertical load is supported. The T-slot extrusion of the LC40 stages allowed easy incorporation of additional components, including brackets, cable tracks, and locking caster wheels. An X-LRQ-EC stage adds in a high resolution focus axis.
Modular System for Longer Travel

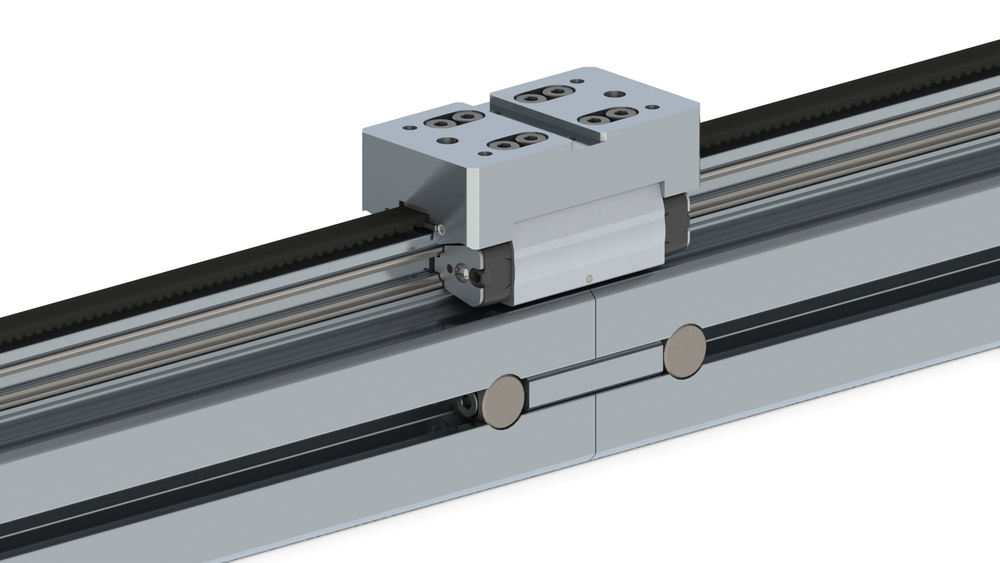

Need travel beyond 3.5 meters? We provide modular rail segments that join together for a longer range stage. The assembly process is straightforward, allowing a user to quickly construct it on-site and ensuring components can ship within a reasonable package size. This customization can also extend to the Belt-Drive LC40 Gantries to greatly expand the work envelope. Contact us to discuss this option for your application.
