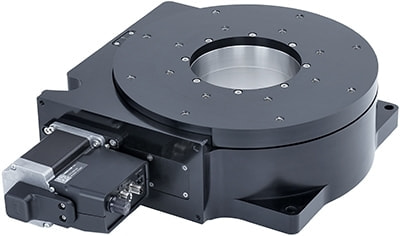

RST Family
High Load, Worm Gear Drive Rotary Stage
- Smooth crossed roller bearings for long life
- Worm gear driven for high accuracy and torque
- IP65 rated version available
- Large diameter apertures for through bore applications
- Built-in controller or motor-only models
- Direct reading and motor encoder options for position correction, slip/stall detection, and automatic recovery
- Engineered for low particle generation in sensitive, high-cleanliness environments (ISO Class 5 suitable). Review our cleanroom guide for more information.
| Best Accuracy | Best Backlash | Best Repeatability | Highest Speed | Highest Torque | Load |
|---|---|---|---|---|---|
0.008° (0.139600 mrad) | < 0.005° (< 0.087 mrad) | < 0.0015° (< 0.026 mrad) | 60°/s (10 rpm) | 7000 N⋅cm (9912.8 oz⋅in) | 3000 N (672.8 lb) |
| Series Name | Built-In Controller | Built-In Encoder | Built-In Motor | Price Range ( USD ) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|
| X-RST-AE |  | Direct Reading | Stepper Motor | $21,087 – $21,343 | 7-10 Days | |
| X-RST-DE | | Direct Reading | Stepper Motor | $6,776 – $6,944 | 1-5 Days | |
| X-RST-E | | Motor/rotary | Stepper Motor | $5,168 – $16,376 | 1-5 Days | |
| X-RST | |  | Stepper Motor | $4,943 – $16,156 | 1-5 Days | |
| RST-AE | | Direct Reading | Stepper Motor | $20,730 – $20,789 | 7-10 Days | |
| RST-DE | | Direct Reading | Stepper Motor | $5,918 – $5,977 | 1-5 Days | |
| RST-E | | Motor/rotary | Stepper Motor | $4,518 – $15,775 | 1-5 Days | |
| RST | | | Stepper Motor | $4,302 – $15,553 | 1-5 Days |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.

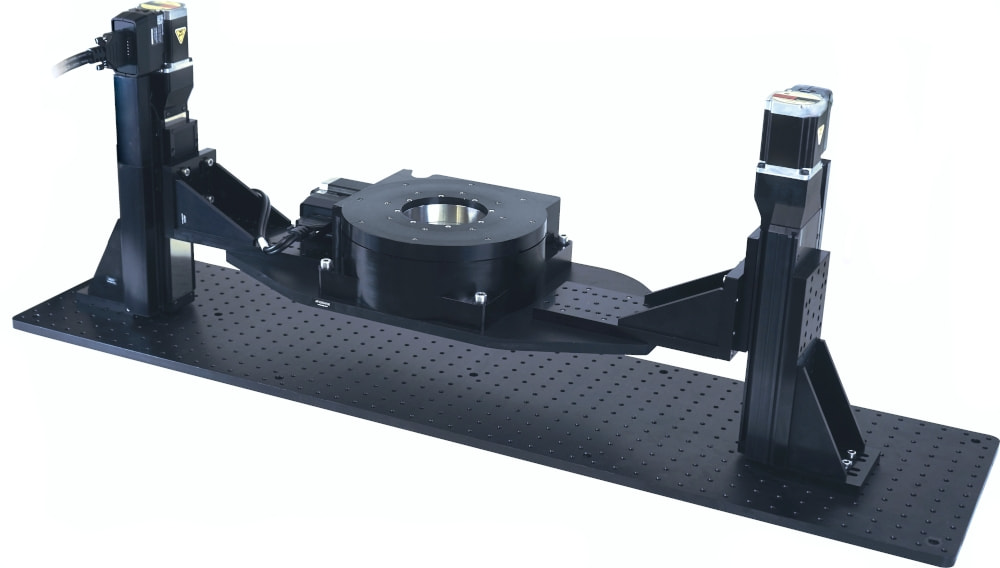

RST Customization Examples
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization Team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day

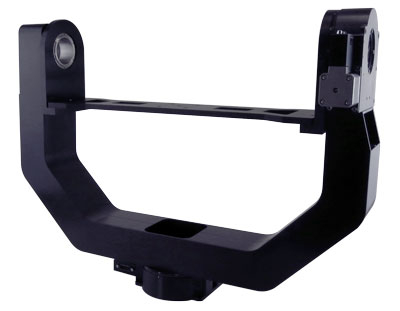

Custom Two-Axis Rotary Gimbal
This gimbal system consists of an X-RSB for the lower axis with an X-RSW driving the upper axis. The devices are daisy-chained together through a slip ring, which allows daisy-chaining power and data to the X-RSW without tangling wires as the stage rotates. This setup can easily be customized to accommodate different size working envelopes or be mounted to work with an X-RST for higher accuracy systems.

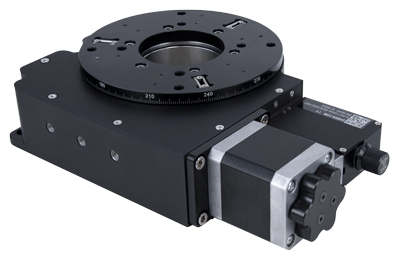

Custom X-RST-DE with Manual Knob
This custom X-RST-DE rotary stage uses a dual shaft motor with a knob for manual control of the stage. The X-RST-DE gear requires a lot of force to rotate, so a larger knob requiring less torque from the user was added. The knob can be used when the stage is powered on or off. Since this stage has a direct encoder, the controller keeps track of the stage position if the manual knob is used to rotate the stage, even when it's powered.
IP65 Rated Rotary Stage
Applications in dirty environments such as machining, outdoors, or washdown environments typically require ingress protection (IP) rated motion control. Shown below is an X-RST240B-AE56 high precision rotary stage with optional ingress protection. The integrated controller and stage internals are protected against dust and water to a rating of IP65 (protected from all dust ingress and low-pressure water jets in any direction). Additionally, the fully integrated controller means you don’t have to worry about designing a separate enclosure to house your control electronics.
Zaber Technologies Gimbal
This customized gimbal system consists of two RST rotary stages, an X-MCB2 external controller, and custom-sized brackets. This setup can be changed to accommodate different size working envelopes. Some additional options include rotary stages with built-in controllers, motor encoders, or direct encoders. It is also possible to connect device cables through a slip ring, which allows daisy-chaining power and data to the stages without tangling wires as the stage rotates.
