LSQ Family
Moderate Load, Screw Drive Linear Stage
- Recirculating ball bearings for high load and long lifetime
- 75, 150, 300, 450, 600 mm travel
- Motor encoder option for slip/stall detection and automatic recovery
- Dust cover options to keep out moderate debris
- Contact us for information and custom options for cleanroom use
| Shortest Travel | Longest Travel | Best Accuracy | Best Repeatability | Highest Speed | Highest Thrust | Load |
|---|---|---|---|---|---|---|
75 mm (2.953") | 600 mm (23.622") | 35 µm (0.001378") | < 2 µm (< 0.000079") | 1000 mm/s (39.37"/s) | 275 N (61.7 lb) | 500 N (112.1 lb) |
Have a Question?
| Series Name | Built-In Controller | Dust Cover | Built-In Encoder | Built-In Motor | Price Range (USD) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|---|
| X-LSQ-E | Available | Not available | Motor/rotary | Stepper | $2,923 – $5,082 | 1–5 days | |
| X-LSQ-EC | Available | Available | Motor/rotary | Stepper | $3,212 – $5,371 | 1–5 days | |
| X-LSQ | Available | Not available | Not available | Stepper | $2,661 – $4,822 | 1–5 days | |
| X-LSQ-C | Available | Available | Not available | Stepper | $2,949 – $5,111 | 1–5 days | |
| LSQ-E | Not available | Not available | Motor/rotary | Stepper | $2,088 – $3,922 | 1–5 days | |
| LSQ-EC | Not available | Available | Motor/rotary | Stepper | $2,355 – $4,189 | 1–5 days | |
| LSQ | Not available | Not available | Not available | Stepper | $1,845 – $3,680 | 1–5 days | |
| LSQ-C | Not available | Available | Not available | Stepper | $2,112 – $3,945 | 1–5 days | |
| GANTRIES | |||||||
| XY | Available | Available | Motor/rotary | Stepper | $10,207 – $20,264 | 1–14 days | |
| XYZ | Available | Available | Motor/rotary | Stepper | $13,368 – $23,484 | 10–14 days | |
| XY & XYZ Stages | |||||||
| XY | Available | Available | Available | Stepper | $5,485 – $12,699 | 1–5 days | |
| XYZ | Available | Available | Available | Stepper | $8,850 – $17,130 | 1–5 days | |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Customization Examples
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization Team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day

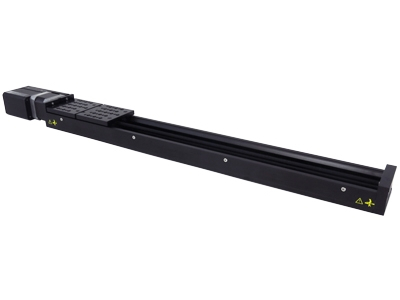

Motorized Linear Stage with Custom Stage Tops
This X-LSQ-E stage has a free-running second carriage not driven by the lead screw. The free-running carriage reduces cantilever load on the driven carriage. For example, if an object mounted to the driven carriage has long dimensions along the axis of motion, the second free-running carriage reduces the cantilever load.

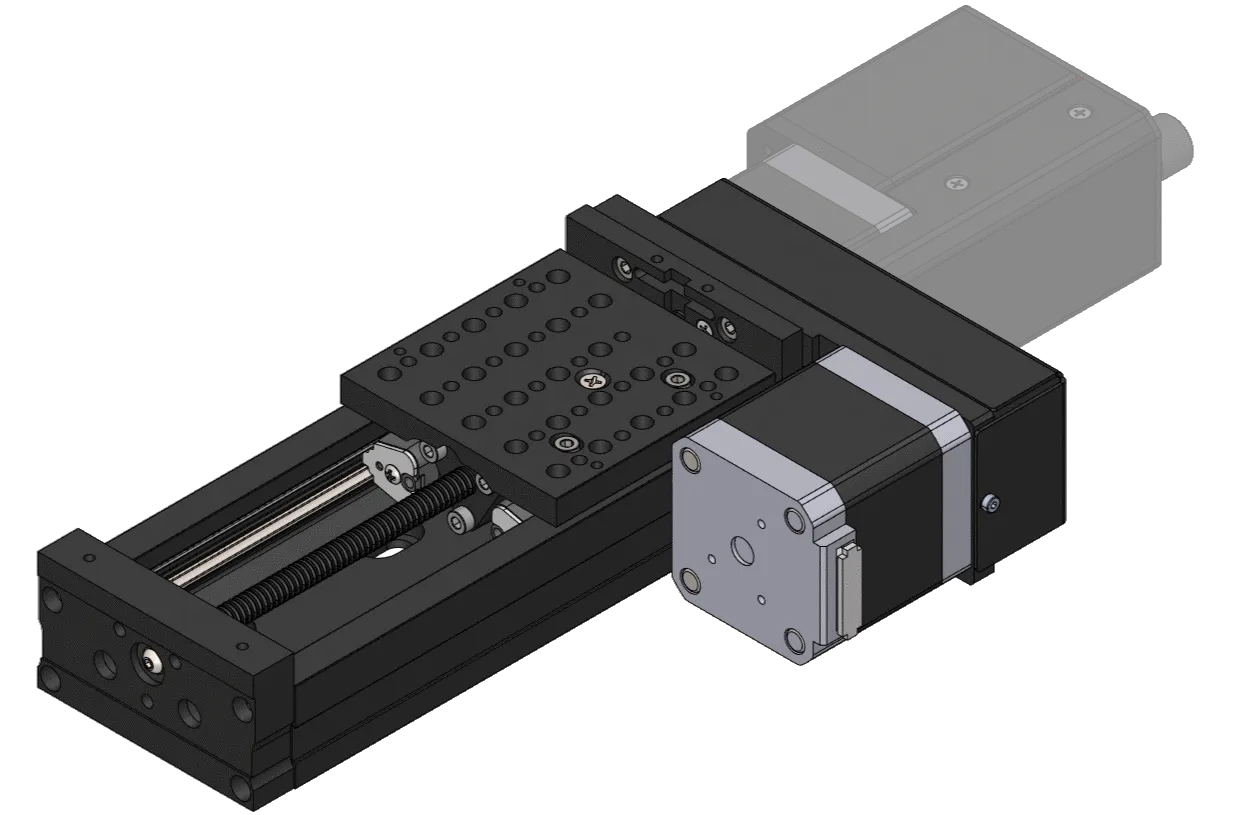

Custom LSQ-T4A With Parallel Mounted Motor
The Challenge: Our customer required the performance and versatility of Zaber’s LSQ linear stages, but limited mounting space prevented them from fitting a standard unit with the necessary travel. The Solution: Zaber’s Custom Engineering team developed a solution that reduced the length of the LSQ by repositioning the motor to be beside the motion platform. The Outcome: This customization is 93 mm shorter than an equivalent, standard X-LSQ, and allowed Zaber to offer a longer travel linear stage in a length constrained environment. Zaber’s Technical Advantage: Our applications engineers team works closely with the custom engineering team, making solutions like this an efficient and highly tailored process. The LSQ with a parallel mounted motor retains all the established benefits of Zaber's LSQ ecosystem, including compatibility with external controllers (X-MCC), LSQ Gantry compatibility, and dust cover options.

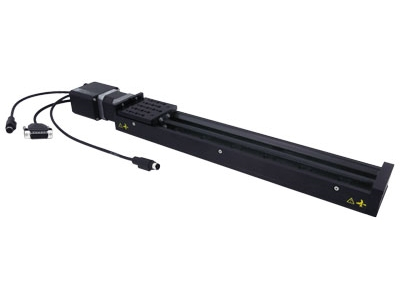

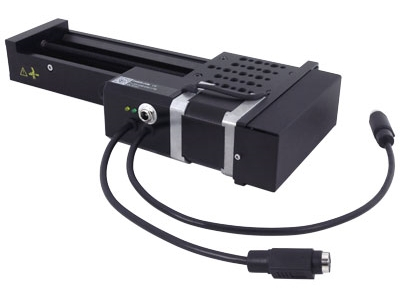

Motorized Linear Stage with Custom Encoder Reader Cable
Zaber's controllers handle encoder feedback from motors directly, allowing automatic slip/stall detection and correction. Some applications include a second instrument that also uses the encoder signal. This X-LSQ-E linear stage demonstrates how an additional encoder output can be added to any stage with an encoder so that the signal can be shared.
