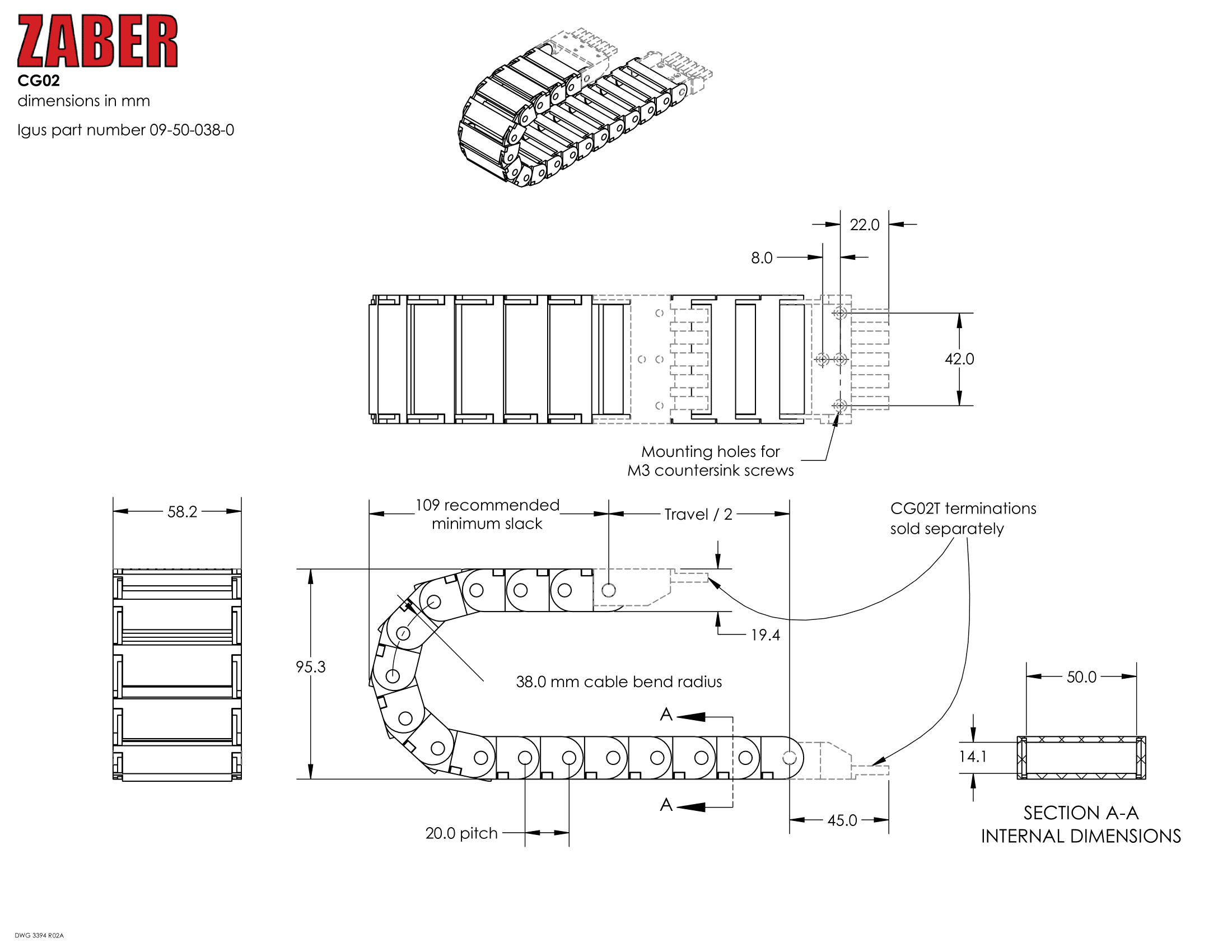

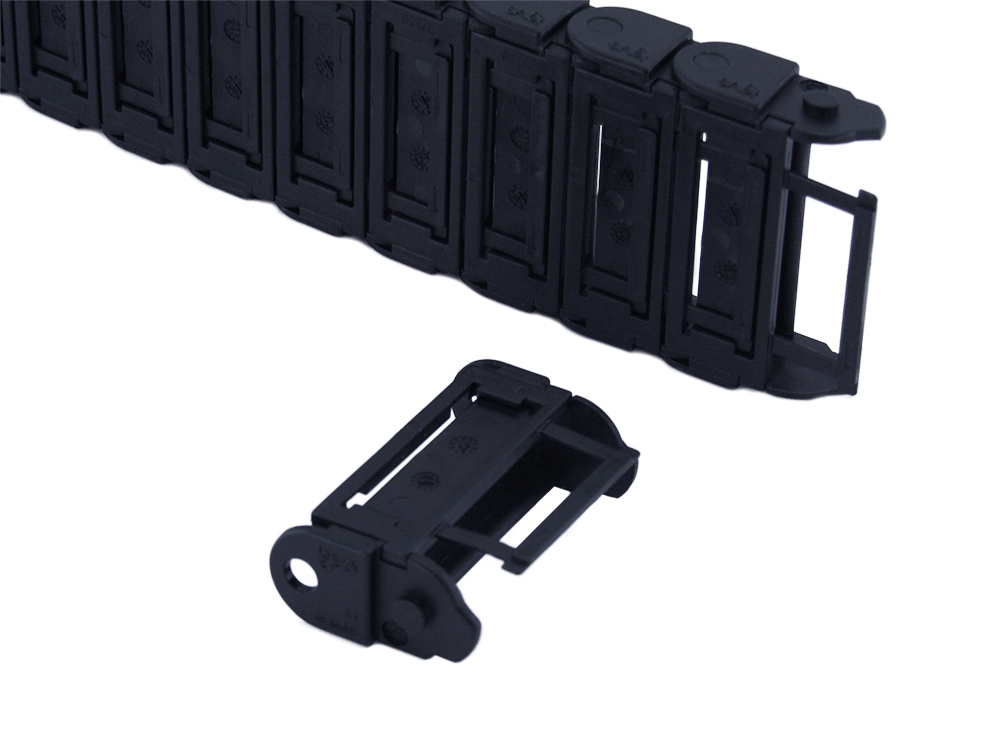

Cable Guide, 50 mm Width, 38 mm Bend Radius, Single Link
These cable guide links can be used to assemble a cable carrier of any desired length to provide cable management for multi-axis motion products, such as gantries. We recommend this series when travel is 1.5 m or shorter. These links provide a 50 mm wide opening, suitable for 1 to 3 motor cables. Cable guides assembled with these links should be mounted using CG02T terminations (sold separately).
