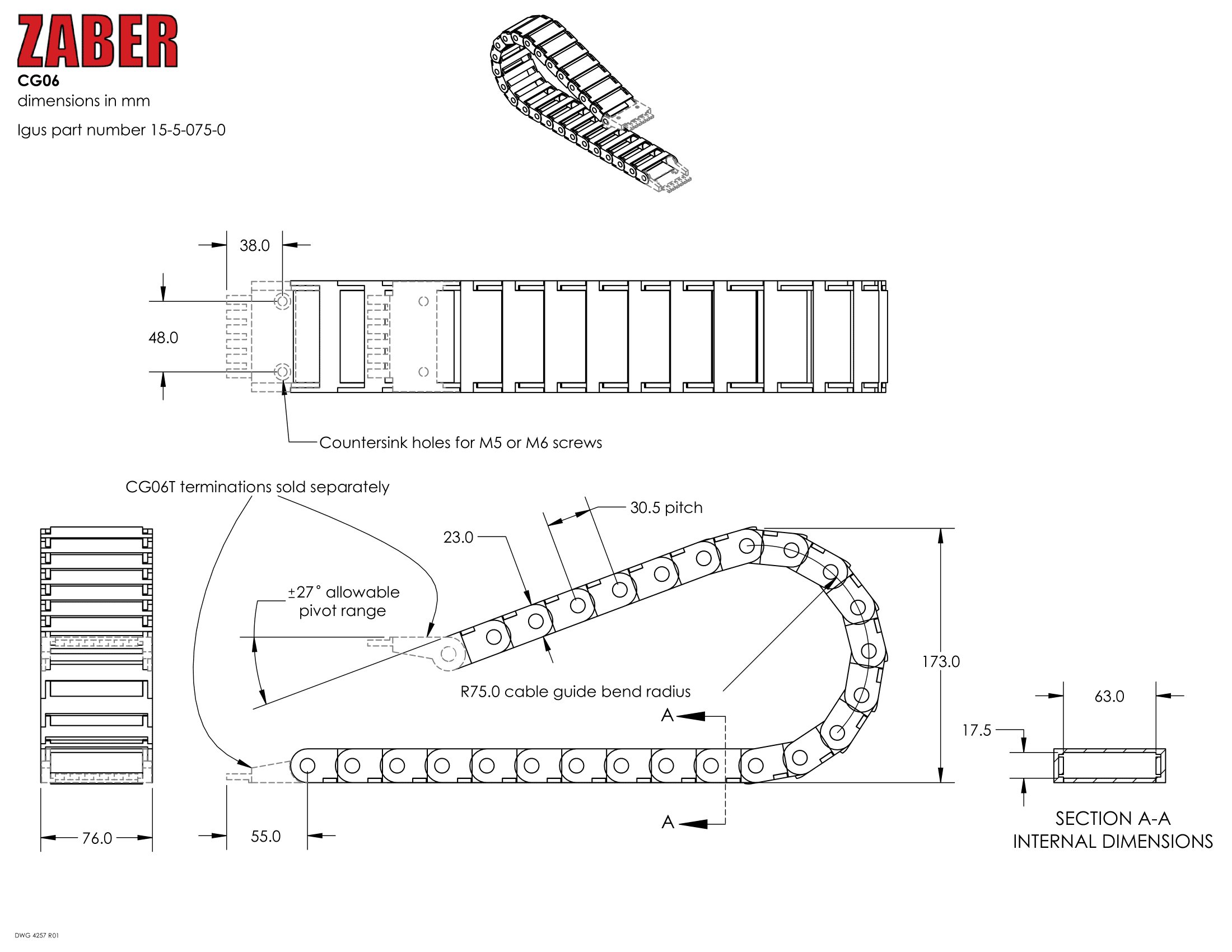

CG06: Cable Guide, 63 mm Width, 75 mm Bend Radius, Long Travel, Single Link
Price: $4 *
Lead Time: 1-5 Days | Weight: 0.019 kg
About This Accessory
These cable guide links can be used to assemble a cable carrier of any desired length to provide cable management for multi-axis motion products, such as gantries. We recommend this series when the travel is longer than 1.5 m and/or if a cable requires a 75 mm bend radius. These links provide a 63 mm wide opening, suitable for 1 to 4 motor cables and one additional data cable. These cable guides are mounted using CG06T terminations (sold separately).
