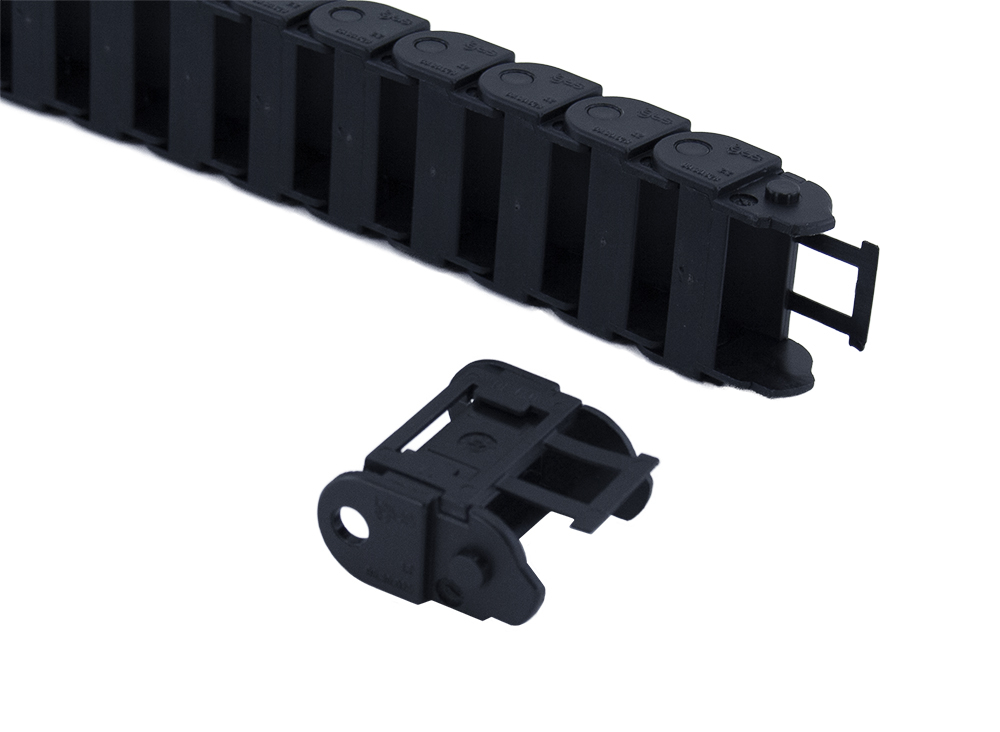

Cable Guide, 30 mm Width, 38 mm Bend Radius, Single Link
These cable guide links can be used to assemble a cable carrier of any desired length to provide cable management for multi-axis motion products, such as gantries. We recommend this series when travel is 1.5 m or shorter. These links provide a 30 mm wide opening, suitable for 1 to 2 motor cables. For systems requiring more cables or large diameter cables, see the CG02. Cable guides assembled with these links should be mounted using CG01T terminations (sold separately).
