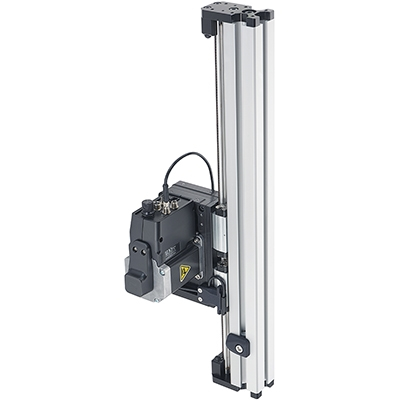

LC40C-KM03

LC40C-KM03 Series

Belt-driven T-slot cantilever axis with built-in controller stepper motors

  • Cantilever axis design ideal as a vertical axis on gantry systems for applications such as pick and place or liquid handling
  • Up to 500 mm travel length, available in 50 mm increments
  • Lightweight extrusion compatible with most 40 mm T-slot extrusion framing system hardware
  • Includes NEMA 23 stepper motor with built-in controller and encoder
  • Integrated power-off brake for vertical applications
  • Recirculating ball bearing carriage for high load and lifetime
  • Home sensor and magnet included, optional away sensor
  • See the User's Manual to help assemble and configure the LC40C-KM03
App Eng.

Have a Question?

Contact us for device selection, troubleshooting & more!

Response time promise: 1 business day

App Eng.

Have a Question?

Part Numbering & Options

Partnumber Scheme of the LC40C-KM03

Showing 18 of 18 Parts.

Part NumberDescriptionPower‑Off
Brake
Lead TimeStarting
Prices (USD) *
Add to Cart
LC40C0100-KM03100 mm Travel3-7 Days$3,130
LC40C0100-KM03B100 mm TravelCheck Icon3-7 Days$3,864
LC40C0150-KM03150 mm Travel3-7 Days$3,144
LC40C0150-KM03B150 mm TravelCheck Icon3-7 Days$3,878
LC40C0200-KM03200 mm Travel3-7 Days$3,157
LC40C0200-KM03B200 mm TravelCheck Icon3-7 Days$3,891
LC40C0250-KM03250 mm Travel3-7 Days$3,171
LC40C0250-KM03B250 mm TravelCheck Icon3-7 Days$3,905
LC40C0300-KM03300 mm Travel3-7 Days$3,184
LC40C0300-KM03B300 mm TravelCheck Icon3-7 Days$3,918
LC40C0350-KM03350 mm Travel3-7 Days$3,197
LC40C0350-KM03B350 mm TravelCheck Icon3-7 Days$3,931
LC40C0400-KM03400 mm Travel3-7 Days$3,211
LC40C0400-KM03B400 mm TravelCheck Icon3-7 Days$3,945
LC40C0450-KM03450 mm Travel3-7 Days$3,225
LC40C0450-KM03B450 mm TravelCheck Icon3-7 Days$3,959
LC40C0500-KM03500 mm Travel3-7 Days$3,238
LC40C0500-KM03B500 mm TravelCheck Icon3-7 Days$3,972

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
