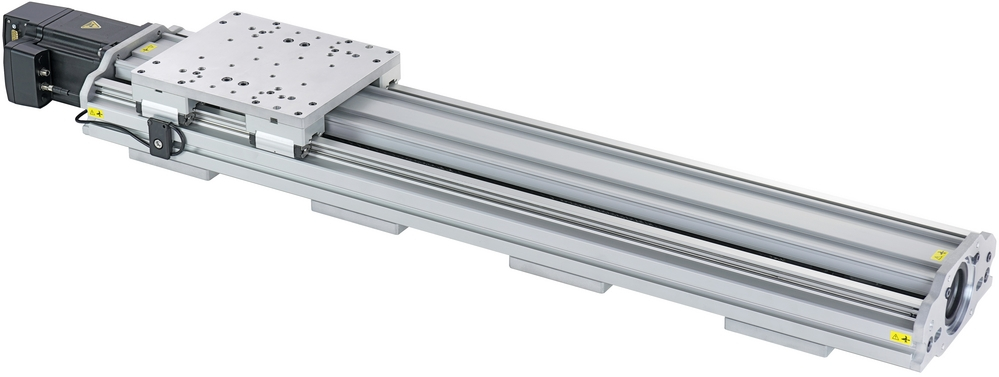

LRU-E Series

Name: LRU-E High-Load Linear Stages with Optional Brakes
Brand: Zaber
SKU: LRU-E
Availability: InStock

High Load, High Stiffness, Screw Drive Linear Stage with Optional Brakes

250, 500, 1000, 1500, 2000 mm travel
500 kg load capacity and up to 360 Nm moment load capacity
Achieves thrust up to 2850 N and speeds up to 350 mm/s
Large mounting platform with high moment stiffness
Built-in, 500 CPR motor encoder provides slip/stall detection and recovery
Designed for use with Zaber's X-MCC Series stepper motor controller or any 2-phase stepper motor controller
With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
Optional integrated power-off brake for vertical applications

Have a Question?

Response time promise: 1 business day

Have a Question?

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Drive Screw Options

H: Medium pitch ball screw

Stage Width

Brake Option

Encoder Options

E01: Motor Encoder, 500 CPR

Connector

Part Number	Description	Lead Time	Starting Prices (USD) *
LRU0250H18-BE01T12A	250 mm Travel \| 180 mm Wide	1-5 Days	$7,744
LRU0250H18-E01T11A	250 mm Travel \| 180 mm Wide	1-5 Days	$6,995
LRU0250H25-BE01T12A	250 mm Travel \| 250 mm Wide	1-5 Days	$8,270
LRU0250H25-E01T11A	250 mm Travel \| 250 mm Wide	1-5 Days	$7,521
LRU0500H18-BE01T12A	500 mm Travel \| 180 mm Wide	1-5 Days	$8,414
LRU0500H18-E01T11A	500 mm Travel \| 180 mm Wide	1-5 Days	$7,665
LRU0500H25-BE01T12A	500 mm Travel \| 250 mm Wide	1-5 Days	$8,902
LRU0500H25-E01T11A	500 mm Travel \| 250 mm Wide	1-5 Days	$8,153
LRU1000H18-BE01T12A	1000 mm Travel \| 180 mm Wide	1-5 Days^?	$9,014
LRU1000H18-E01T11A	1000 mm Travel \| 180 mm Wide	1-5 Days^?	$8,265
LRU1000H25-BE01T12A	1000 mm Travel \| 250 mm Wide	1-5 Days^?	$9,544
LRU1000H25-E01T11A	1000 mm Travel \| 250 mm Wide	1-5 Days^?	$8,795
LRU1500H18-BE01T12A	1500 mm Travel \| 180 mm Wide	1-5 Days^?	$9,682
LRU1500H18-E01T11A	1500 mm Travel \| 180 mm Wide	1-5 Days^?	$8,933
LRU1500H25-BE01T12A	1500 mm Travel \| 250 mm Wide	1-5 Days^?	$10,227
LRU1500H25-E01T11A	1500 mm Travel \| 250 mm Wide	1-5 Days^?	$9,478
LRU2000H18-BE01T12A	2000 mm Travel \| 180 mm Wide	1-5 Days^?	$10,263
LRU2000H18-E01T11A	2000 mm Travel \| 180 mm Wide	1-5 Days^?	$9,515
LRU2000H25-BE01T12A	2000 mm Travel \| 250 mm Wide	1-5 Days^?	$10,952
LRU2000H25-E01T11A	2000 mm Travel \| 250 mm Wide	1-5 Days^?	$10,203

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *
HS02	Hall Effect Sensor and Magnet, 50 cm	1-5 Days	$45
HS02L150	Hall Effect Sensor and Magnet, 150 cm	1-5 Days	$50
MC10	Motor Extension Cable, 1.5 m, MCC Family Controllers and T10A/T12A Peripherals	1-5 Days	$59
MC10L300	Motor Extension Cable, 3.0 m, MCC Family Controllers and T10A/T12A Peripherals	1-5 Days	$99
MC10T3	Motor Conversion Cable, 1.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$33
MC10T3L300	Motor Conversion Cable, 3.0 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$51
MC12	Motor Extension Cable, 1.5 m, MCC Family Controllers and T11A/T12A Peripherals	1-5 Days	$57
MC12L300	Motor Extension Cable, 3.0 m, MCC Family Controllers and T11A/T12A Peripherals	1-5 Days	$89

Accessory	Description	Lead Time	Price (USD) *
AB264	LC40 Alignment Bar, Adjustable	1-5 Days	$42
AB274	Angle Bracket, 90 Degrees, for LRU-18	1-5 Days	$525
AB275	Angle Bracket, 90 Degrees, for LRU-25	1-5 Days	$575
AP187	Limit Sensor Mount for 40 mm T-slots	1-5 Days	$28
AP235	LC40 Gantry Cable Guide Lower Mounting Bracket	1-5 Days	$32
CG01	Cable Guide, 30 mm Width, 38 mm Bend Radius, Single Link	1-5 Days	$2
CG01T	Cable Guide Termination Set, Series 09, 30 mm Width	1-5 Days	$29
CG02	Cable Guide, 50 mm Width, 38 mm Bend Radius, Single Link	1-5 Days	$2
CG02T	Cable Guide Termination Set, Series 09, 50 mm Width	1-5 Days	$29
CG05	Cable Guide, 63 mm Width, 38 mm Bend Radius, Long Travel, Single Link	1-5 Days	$4
CG05T	Cable Guide Termination Set, Series 15, 63 mm Width	1-5 Days	$29
CG06	Cable Guide, 63 mm Width, 75 mm Bend Radius, Long Travel, Single Link	1-5 Days	$4
CG06T	Cable Guide Termination Set, Series 15, 63 mm Width, One Pivoting End	1-5 Days	$30

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
