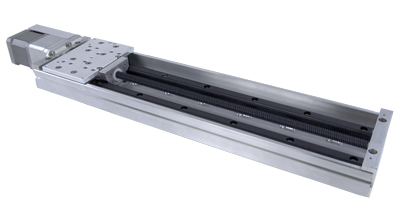

X-LRQ-SV2 Series
High vacuum motorized linear stages with built-in controllers
- Vacuum compatible to 10-6 Torr
- 75, 150, 300, 450, 600 mm travel
- Up to 205 mm/s speed and up to 100 N thrust
- 100 kg load capacity
- Built-in controller; daisy-chains with other Zaber products
- Only 4 feedthrough wires required to control all units in the daisy-chain via serial port (with an X-PIB adaptor)
- Custom versions available
Have a Question?
Part Numbering & Options
Compatible Accessories
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| X-PIB | Daisy-chain Power Injector, X-Series | 1-5 Days | $92 |
- All LRQs share mounting patterns and can be screwed together directly.
- Mounting options for stacking XY, theta, or tilt systems with Zaber stages are available here LRQ Adaptor Plates.
- Mounting options using angle bracket for L-shaped configurations with Zaber stages are available here LRQ Angle Brackets.
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AB164-V | Angle Bracket, 90 Degrees, Large, LRQ, Vacuum Compatible | 1-5 Days | $647 |
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| PS12S-24V30 | Power Supply, 24 V 3.0 A | 1-5 Days | $50 | |
| PS13S-48V12 | Power Supply, 48 V 1.25 A | 1-5 Days | $37 | |
| PS14S-48V37 | Power Supply, 48 V 3.75 A | 1-5 Days | $112 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
