Zaber's vacuum devices
  • Only 4 feedthrough wires required to control all daisy-chained positioners with built-in controllers
  • Low vacuum and high vacuum positioning systems, rated to 10-3 torr (low vacuum) and 10-6 torr (high vacuum)
  • Up to 600 mm travel, 100 kg load, 205 mm/s speed
Multiple Options

Wide Range of Options

Multi-Axis

Easy Multi-Axis Systems

User-friendly software

User-Friendly
Software & API

High Load

High Load Options

Plug-N-Play

Plug & Play in Minutes

Lead Time

Shipping
Within 1 Week

As the name suggests, a vacuum stage or a vacuum compatible stage is defined as a motion control device specifically designed for operation in extremely low pressure environments, where outgassing of components must be minimized and convection cannot be relied on for heat dissipation.

Zaber offers a wide selection of vacuum compatible linear stages, rotary stages, vertical stages, goniometers, mirror mounts, and linear actuators, all with optional built-in controllers.

For more information about Zaber's vacuum compatible stages, read our technical article - Motion Device Design Considerations for Vacuum Applications.

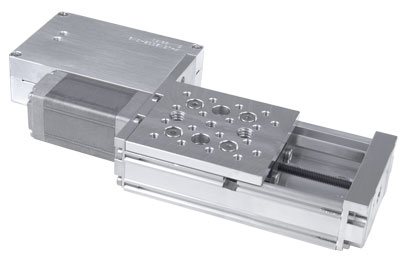

LSM Family — Compact, Screw Drive Linear Stage

Starting Price
$4,042 (USD)

Default image for https://www.zaber.com/products/vacuum-compatible-stages

Representative Image

  • Small form factor ideal for many desktop applications
  • 25, 50, 100, 150, 200 mm travel
  • Recirculating ball bearings for high load and long lifetime
  • Vacuum rated versions available
Shortest TravelLongest TravelBest AccuracyBest RepeatabilityHighest SpeedHighest ThrustLoad
25.4 mm
(1.000")
203.2 mm
(8.000")
15 µm
(0.000591")
< 3 µm
(< 0.000118")
104 mm/s
(4.094"/s)
55 N
(12.3 lb)
250 N
(56.1 lb)

Above specifications are based on all models of the family, including non-vacuum models

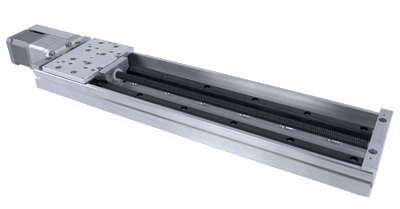

LRQ Family — Moderate Load, High Stiffness, Screw Drive Linear Stage

Starting Price
$5,510 (USD)

Default image for https://www.zaber.com/products/vacuum-compatible-stages

Representative Image

  • Recirculating ball bearings for high load and long lifetime
  • 75, 150, 300, 450, 600 mm travel
  • Ball screw and lead screw options
  • Inline and parallel drive configurations
Shortest TravelLongest TravelBest AccuracyBest RepeatabilityHighest SpeedHighest ThrustLoad
75 mm
(2.953")
600 mm
(23.622")
10 µm
(0.000394")
< 2 µm
(< 0.000079")
840 mm/s
(33.071"/s)
500 N
(112.1 lb)
1000 N
(224.3 lb)

Above specifications are based on all models of the family, including non-vacuum models

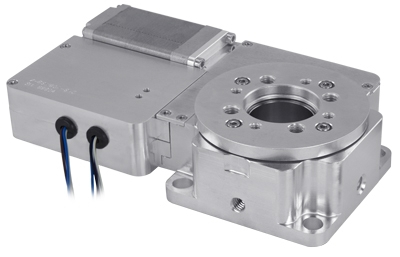

RSM Family — Ultra Compact, Worm Gear Drive Rotary Stage

Starting Price
$4,688 (USD)

Default image for https://www.zaber.com/products/vacuum-compatible-stages

Representative Image

  • Compact and low profile stage
  • Vacuum rated versions available as standard products
  • Built-in controller or motor-only models
  • Motor encoder option for slip/stall detection and automatic recovery
Best AccuracyBest RepeatabilityBest BacklashHighest SpeedHighest TorqueLoad
0.14°
(2.443000 mrad)
< 0.02°
(< 0.349 mrad)
< 0.04°
(< 0.698 mrad)
120°/s
(20 rpm)
60 N⋅cm
(85.0 oz⋅in)
50 N
(11.2 lb)

Above specifications are based on all models of the family, including non-vacuum models

RSW Family — Compact Worm Gear Drive Rotary Stage

Starting Price
$4,630 (USD)

Default image for https://www.zaber.com/products/vacuum-compatible-stages

Representative Image

  • Two lens holders allow for use as a polarizer mount
  • Vacuum rated versions available
  • Built-in controller or motor-only models
  • Motor encoder option for slip/stall detection and automatic recovery
Best AccuracyBest RepeatabilityBest BacklashHighest SpeedHighest TorqueLoad
0.08°
(1.396000 mrad)
< 0.02°
(< 0.349 mrad)
< 0.04°
(< 0.698 mrad)
450°/s
(75 rpm)
280 N⋅cm
(396.5 oz⋅in)
200 N
(44.9 lb)

Above specifications are based on all models of the family, including non-vacuum models

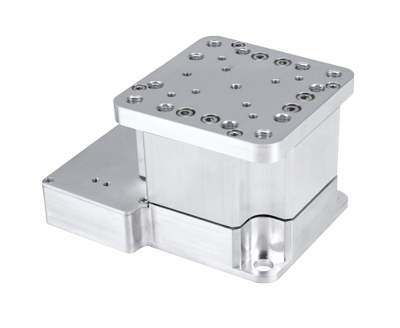

VSR Family — Telescoping, Screw Drive

Starting Price
$3,514 (USD)

Default image for https://www.zaber.com/products/vacuum-compatible-stages

Representative Image

  • 20 or 40 mm travel
  • 10 kg load capacity
  • Vacuum rated versions available
  • Built-in controller or motor models only
Shortest TravelLongest TravelBest AccuracyBest BacklashHighest SpeedHighest ThrustLoad
20 mm
(0.787")
40 mm
(1.575")
35 µm
(0.001378")
< 35 µm
(< 0.001378")
55 mm/s
(2.165"/s)
200 N
(44.9 lb)
100 N
(22.4 lb)

Above specifications are based on all models of the family, including non-vacuum models

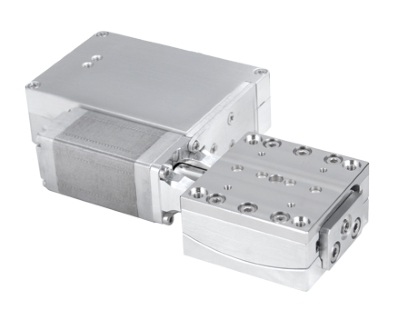

GSM Family — Goniometers

Starting Price
$4,195 (USD)

Default image for https://www.zaber.com/products/vacuum-compatible-stages

Representative Image

  • 40 mm and 60 mm centre of rotation options allow for two axes of motion about a common centre of rotation
  • Crossed roller bearings for smooth motion and high stiffness
  • Vacuum rated versions available
  • Built-in controller or motor-only models
RangeBest AccuracyBest BacklashHighest SpeedLoad
+/-10°
0.06°
(1.047000 mrad)
< 0.01°
(< 0.174 mrad)
30°/s
(5 rpm)
30 N
(6.7 lb)

Above specifications are based on all models of the family, including non-vacuum models

NA Family — Wide Selection of Sizes

Starting Price
$2,437 (USD)

Photo of the X-NA-SV

Representative Image

  • 16, 25, 30, 50 and 60 mm travel
  • Replaces standard micrometer heads on manual translation stages
  • Built-in controller or motor models only
  • Motor encoder option for slip/stall detection and automatic recovery
Shortest TravelLongest TravelBest AccuracyBest RepeatabilityBest BacklashHighest SpeedHighest Thrust
16 mm
(0.630")
60 mm
(2.362")
20 µm
(0.000787")
< 1 µm
(< 0.000039")
< 15 µm
(< 0.000591")
80 mm/s
(3.150"/s)
1300 N
(291.5 lb)

Above specifications are based on all models of the family, including non-vacuum models

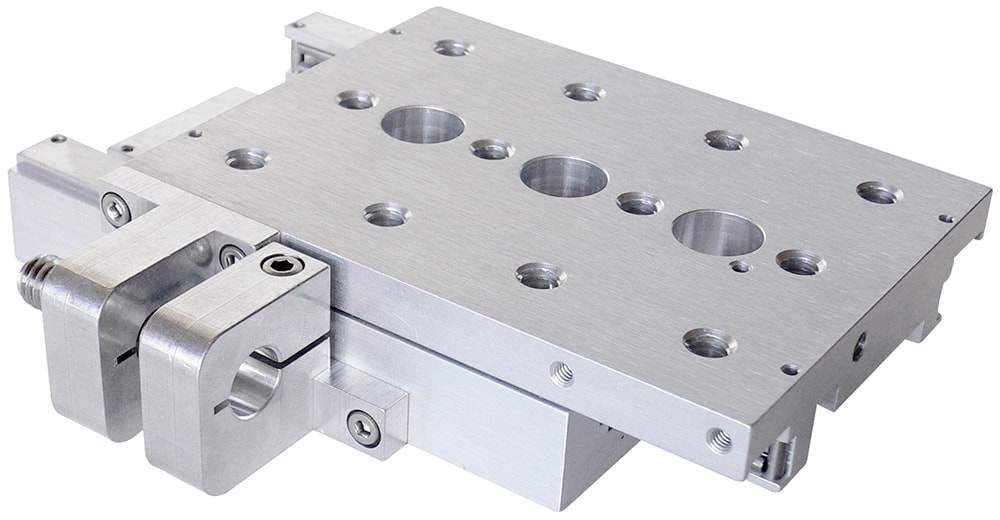

TSB-V Series — Low Vacuum Translation Stages

Starting Price
$562 (USD)

Photo of the TSB-V

Representative Image

  • 25, 28, 50 and 60 mm travel
  • 10 kg load capacity
Shortest TravelLongest TravelLoad
25 mm
(0.984")
60 mm
(2.362")
100 N
(22.4 lb)

Above specifications are based on all models of the family, including non-vacuum models
