LSM-V1 Series

Name: LSM-V1 Miniature, Low Vacuum, Motorized Linear Stages
Brand: Zaber
SKU: LSM-V1
Availability: InStock

Low vacuum miniature motorized linear stages

Series Specifications

Download Datasheet

Built-in Controller
Recommended Controller	MCC (48 V) Recommended
AutoDetect
Encoder Type
Maximum Continuous Thrust	25 N (5.6 lb)
Data Cable Connection	Teflon flying leads with D-sub15 connector
Maximum Centered Load	100 N (22.4 lb)
Maximum Moment (Pitch)	300 N⋅cm (424.8 oz⋅in)
Maximum Moment (Roll)	300 N⋅cm (424.8 oz⋅in)
Maximum Moment (Yaw)	300 N⋅cm (424.8 oz⋅in)
Stiffness (Pitch)	55 N⋅m/° (317 µrad/N⋅m)
Stiffness (Roll)	52.5 N⋅m/° (332 µrad/N⋅m)
Stiffness (Yaw)	85 N⋅m/° (205 µrad/N⋅m)
Motor Steps Per Rev	200
Motor Type	Stepper (2 phase)
Motor Rated Current	800 mA/phase
Motor Winding Inductance	3.5 mH/phase
Default Resolution	1/64 of a step
Guide Type	Needle roller bearing
Mechanical Drive System	Precision lead screw
Limit or Home Sensing	Magnetic hall sensor
Manual Control
Axes of Motion	1
Mounting Interface	M3 and M6 threaded holes and M4 threaded centre hole
Stage Parallelism	< 25 µm (< 0.000984")
Operating Temperature Range	0 to 50 °C
CE Compliant
Vacuum Compatible	Low vacuum (10^-3 Torr)

Part Specifications Comparison

Part Number	Microstep Size (Default Resolution)	Travel Range	Accuracy (unidirectional)	Repeatability	Backlash	Maximum Speed	Minimum Speed	Speed Resolution	Peak Thrust	Flatness of Travel	Straightness of Travel	Pitch	Roll	Yaw	Linear Motion Per Motor Rev	Weight
LSM025A-V1T4	0.047625 µm	25.4 mm (1")	15 µm (0.000591")	< 3 µm (< 0.000118")	< 12 µm (< 0.000472")	24 mm/s (0.945"/s)	0.000029 mm/s (0.000001"/s)	0.000029 mm/s (0.000001"/s)	35 N (7.8 lb)	< 8 µm (< 0.000315")	< 12 µm (< 0.000472")	0.02° (0.349 mrad)	0.02° (0.349 mrad)	0.03° (0.523 mrad)	0.6096 mm (0.024")	0.39 kg (0.86 lb)
LSM025B-V1T4	0.1905 µm	25.4 mm (1")	15 µm (0.000591")	< 6 µm (< 0.000236")	< 16 µm (< 0.00063")	100 mm/s (3.937"/s)	0.000116 mm/s (0.000005"/s)	0.000116 mm/s (0.000005"/s)	15 N (3.4 lb)	< 8 µm (< 0.000315")	< 12 µm (< 0.000472")	0.02° (0.349 mrad)	0.02° (0.349 mrad)	0.03° (0.523 mrad)	2.4384 mm (0.096")	0.39 kg (0.86 lb)
LSM050A-V1T4	0.047625 µm	50.8 mm (2")	20 µm (0.000787")	< 3 µm (< 0.000118")	< 12 µm (< 0.000472")	24 mm/s (0.945"/s)	0.000029 mm/s (0.000001"/s)	0.000029 mm/s (0.000001"/s)	35 N (7.8 lb)	< 11 µm (< 0.000433")	< 14 µm (< 0.000551")	0.03° (0.523 mrad)	0.03° (0.523 mrad)	0.03° (0.523 mrad)	0.6096 mm (0.024")	0.4 kg (0.882 lb)
LSM050B-V1T4	0.1905 µm	50.8 mm (2")	25 µm (0.000984")	< 6 µm (< 0.000236")	< 16 µm (< 0.00063")	100 mm/s (3.937"/s)	0.000116 mm/s (0.000005"/s)	0.000116 mm/s (0.000005"/s)	15 N (3.4 lb)	< 11 µm (< 0.000433")	< 14 µm (< 0.000551")	0.03° (0.523 mrad)	0.03° (0.523 mrad)	0.03° (0.523 mrad)	2.4384 mm (0.096")	0.4 kg (0.882 lb)
LSM100A-V1T4	0.047625 µm	101.6 mm (4")	35 µm (0.001378")	< 3 µm (< 0.000118")	< 12 µm (< 0.000472")	24 mm/s (0.945"/s)	0.000029 mm/s (0.000001"/s)	0.000029 mm/s (0.000001"/s)	35 N (7.8 lb)	< 18 µm (< 0.000709")	< 18 µm (< 0.000709")	0.04° (0.698 mrad)	0.04° (0.698 mrad)	0.04° (0.698 mrad)	0.6096 mm (0.024")	0.43 kg (0.948 lb)
LSM100B-V1T4	0.1905 µm	101.6 mm (4")	45 µm (0.001772")	< 6 µm (< 0.000236")	< 16 µm (< 0.00063")	100 mm/s (3.937"/s)	0.000116 mm/s (0.000005"/s)	0.000116 mm/s (0.000005"/s)	15 N (3.4 lb)	< 18 µm (< 0.000709")	< 18 µm (< 0.000709")	0.04° (0.698 mrad)	0.04° (0.698 mrad)	0.04° (0.698 mrad)	2.4384 mm (0.096")	0.43 kg (0.948 lb)
LSM150A-V1T4	0.047625 µm	152.4 mm (6")	50 µm (0.001968")	< 3 µm (< 0.000118")	< 12 µm (< 0.000472")	24 mm/s (0.945"/s)	0.000029 mm/s (0.000001"/s)	0.000029 mm/s (0.000001"/s)	35 N (7.8 lb)	< 25 µm (< 0.000984")	< 23 µm (< 0.000906")	0.04° (0.698 mrad)	0.05° (0.873 mrad)	0.05° (0.873 mrad)	0.6096 mm (0.024")	0.47 kg (1.036 lb)
LSM150B-V1T4	0.1905 µm	152.4 mm (6")	65 µm (0.002559")	< 6 µm (< 0.000236")	< 16 µm (< 0.00063")	100 mm/s (3.937"/s)	0.000116 mm/s (0.000005"/s)	0.000116 mm/s (0.000005"/s)	15 N (3.4 lb)	< 25 µm (< 0.000984")	< 23 µm (< 0.000906")	0.04° (0.698 mrad)	0.05° (0.873 mrad)	0.05° (0.873 mrad)	2.4384 mm (0.096")	0.47 kg (1.036 lb)
LSM200A-V1T4	0.047625 µm	203.2 mm (8")	60 µm (0.002362")	< 3 µm (< 0.000118")	< 12 µm (< 0.000472")	24 mm/s (0.945"/s)	0.000029 mm/s (0.000001"/s)	0.000029 mm/s (0.000001"/s)	35 N (7.8 lb)	< 32 µm (< 0.00126")	< 27 µm (< 0.001063")	0.04° (0.698 mrad)	0.05° (0.873 mrad)	0.05° (0.873 mrad)	0.6096 mm (0.024")	0.5 kg (1.102 lb)
LSM200B-V1T4	0.1905 µm	203.2 mm (8")	85 µm (0.003346")	< 6 µm (< 0.000236")	< 16 µm (< 0.00063")	100 mm/s (3.937"/s)	0.000116 mm/s (0.000005"/s)	0.000116 mm/s (0.000005"/s)	15 N (3.4 lb)	< 32 µm (< 0.00126")	< 27 µm (< 0.001063")	0.04° (0.698 mrad)	0.05° (0.873 mrad)	0.05° (0.873 mrad)	2.4384 mm (0.096")	0.5 kg (1.102 lb)

Specification Charts & Notes

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

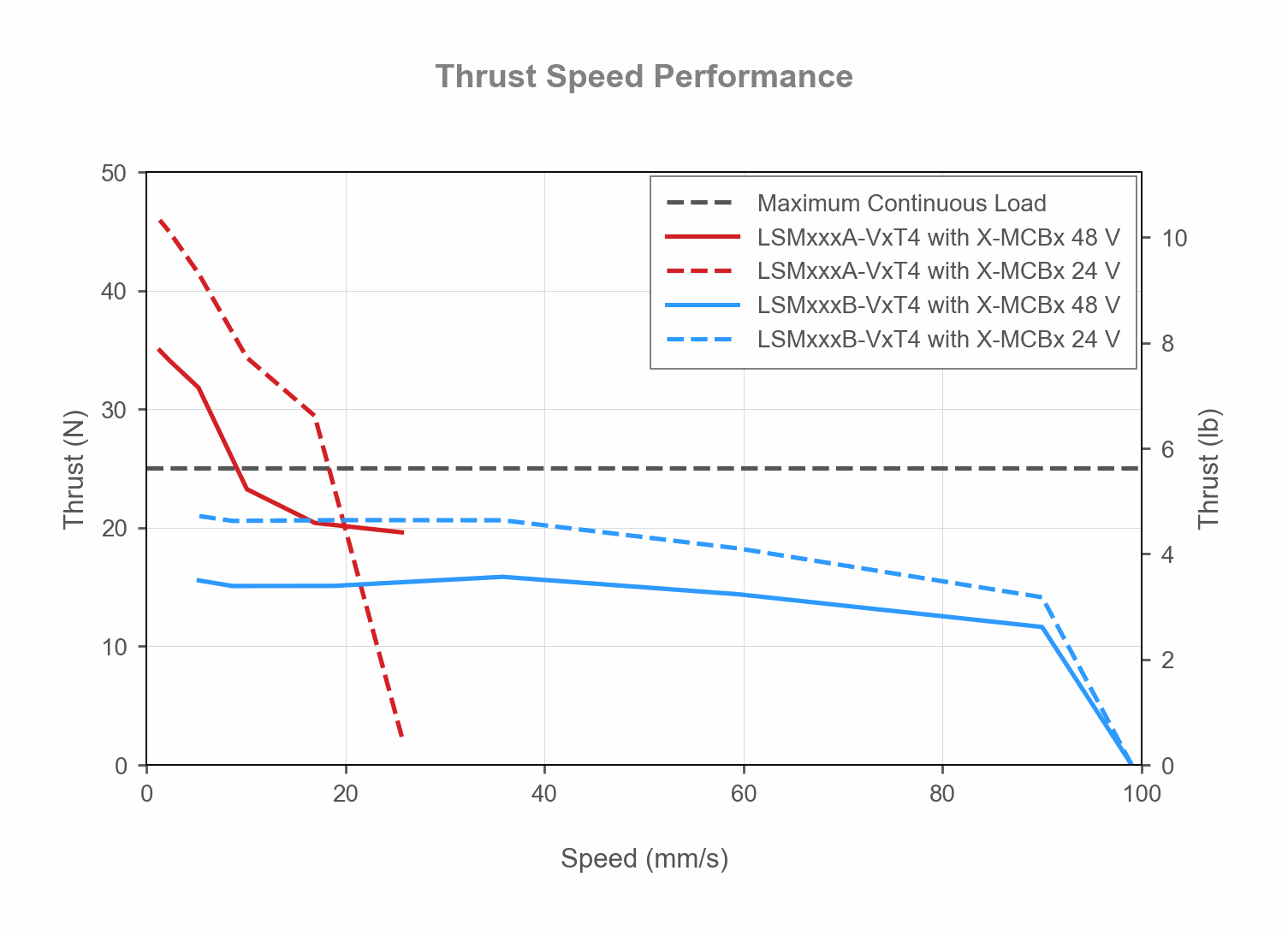

Thrust Speed Performance

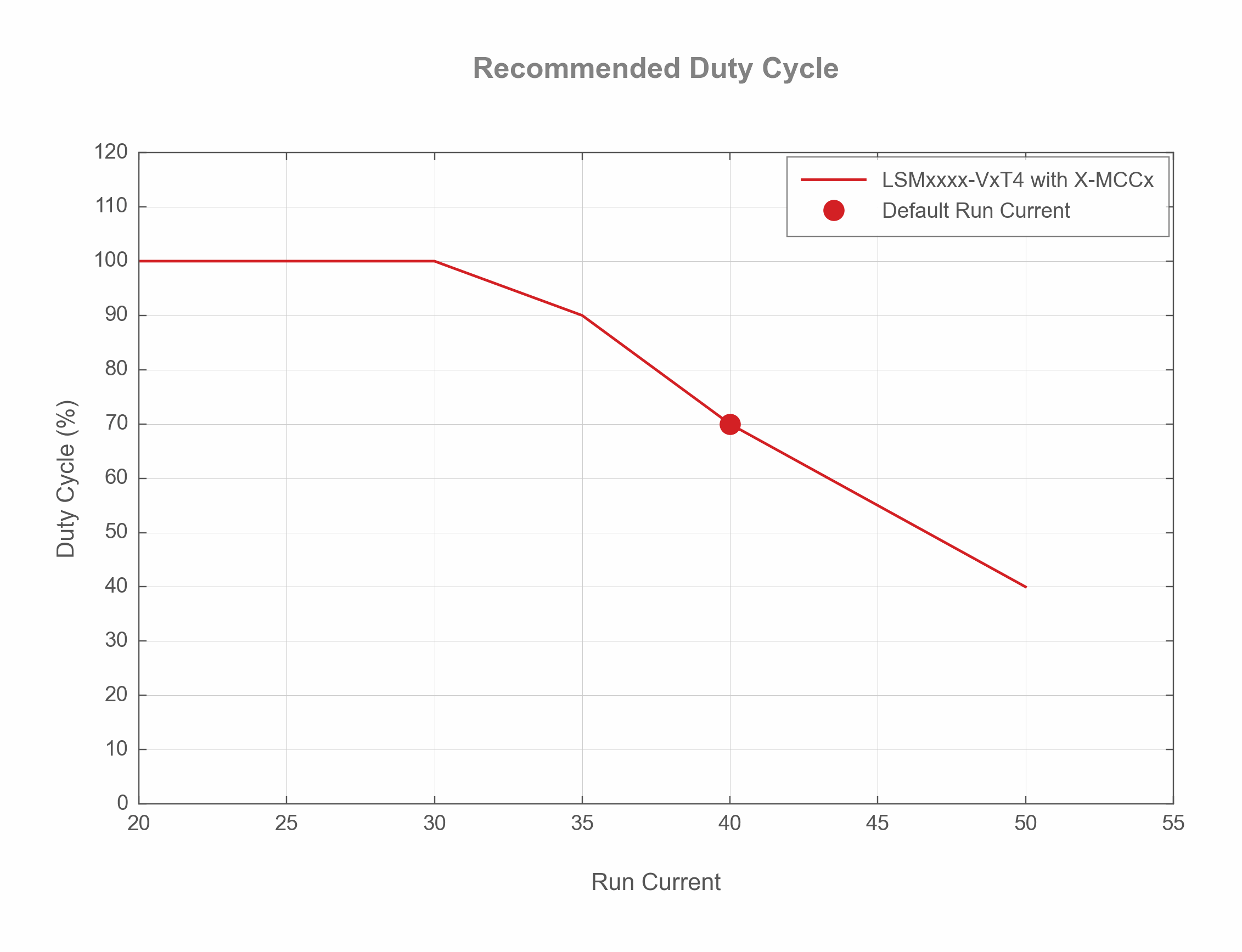

Duty Cycle

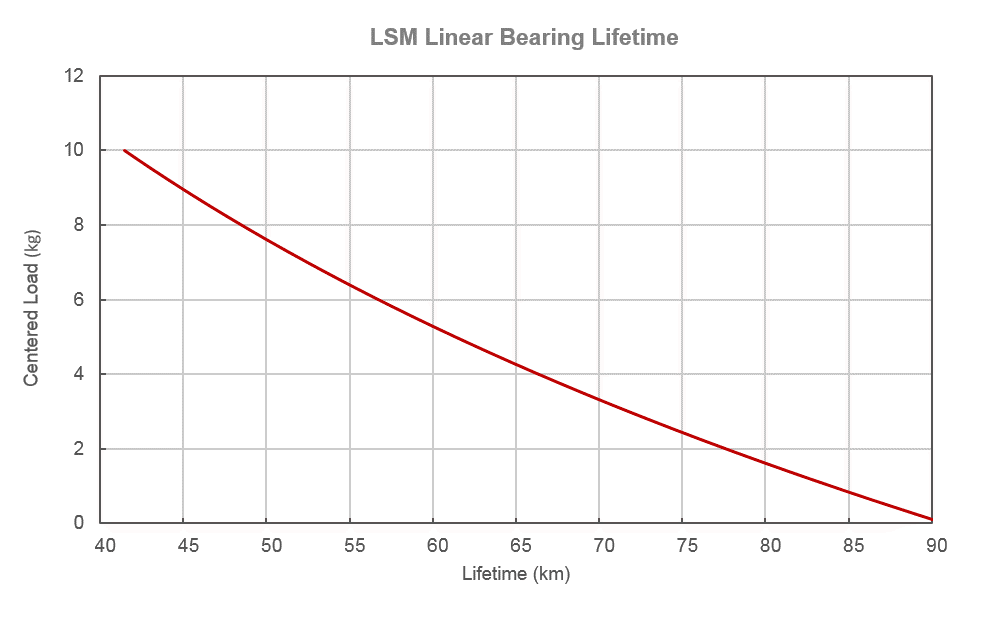

Bearing Lifetime
