LSM-V1 Series

Low vacuum miniature motorized linear stages

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)CUSTOMIZATIONS

Download Datasheet

Series Specifications

Built-in ControllerNo Icon
Recommended Controller X-MCC (48 V) Recommended
AutoDetectNo Icon
Encoder TypeNo Icon
Maximum Continuous Thrust 25 N (5.6 lb)
Data Cable Connection Teflon flying leads with D-sub15 connector
Maximum Centered Load 100 N (22.4 lb)
Maximum Moment (Roll) 300 N⋅cm (424.8 oz⋅in)
Maximum Moment (Pitch) 300 N⋅cm (424.8 oz⋅in)
Maximum Moment (Yaw) 300 N⋅cm (424.8 oz⋅in)
Guide Type Needle roller bearing
Stiffness in Pitch 55 N⋅m/° (317 µrad/N⋅m)
Stiffness in Roll 52.5 N⋅m/° (332 µrad/N⋅m)
Stiffness in Yaw 85 N⋅m/° (205 µrad/N⋅m)
Motor Steps Per Rev 200
Motor Type Stepper (2 phase)
Motor Rated Current 800 mA/phase
Inductance 3.5 mH/phase
Default Resolution 1/64 of a step
Mechanical Drive System Precision lead screw
Limit or Home Sensing Magnetic hall sensor
Manual ControlNo Icon
Axes of Motion 1
Mounting Interface M3 and M6 threaded holes and M4 threaded centre hole
Stage Parallelism < 25 µm (< 0.000984")
Operating Temperature Range 0 to 50 °C
CE CompliantYes Icon
Vacuum Compatible Low vacuum (10-3 Torr)

Part Specifications Comparison

Part NumberMicrostep Size (Default Resolution)Travel RangeAccuracy (unidirectional)RepeatabilityBacklashMaximum SpeedMinimum SpeedSpeed ResolutionPeak ThrustVertical RunoutHorizontal RunoutPitchRollYawLinear Motion Per Motor RevWeight
LSM025A-V1T4 0.047625 µm 25.4 mm (1.000") 15 µm (0.000591") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 24 mm/s (0.945"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 35 N (7.8 lb) < 8 µm (< 0.000315") < 12 µm (< 0.000472") 0.02° (0.349 mrad) 0.02° (0.349 mrad) 0.03° (0.523 mrad) 0.6096 mm (0.024") 0.39 kg (0.860 lb)
LSM025B-V1T4 0.1905 µm 25.4 mm (1.000") 15 µm (0.000591") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 100 mm/s (3.937"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 15 N (3.4 lb) < 8 µm (< 0.000315") < 12 µm (< 0.000472") 0.02° (0.349 mrad) 0.02° (0.349 mrad) 0.03° (0.523 mrad) 2.4384 mm (0.096") 0.39 kg (0.860 lb)
LSM050A-V1T4 0.047625 µm 50.8 mm (2.000") 20 µm (0.000787") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 24 mm/s (0.945"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 35 N (7.8 lb) < 11 µm (< 0.000433") < 14 µm (< 0.000551") 0.03° (0.523 mrad) 0.03° (0.523 mrad) 0.03° (0.523 mrad) 0.6096 mm (0.024") 0.40 kg (0.882 lb)
LSM050B-V1T4 0.1905 µm 50.8 mm (2.000") 25 µm (0.000984") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 100 mm/s (3.937"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 15 N (3.4 lb) < 11 µm (< 0.000433") < 14 µm (< 0.000551") 0.03° (0.523 mrad) 0.03° (0.523 mrad) 0.03° (0.523 mrad) 2.4384 mm (0.096") 0.40 kg (0.882 lb)
LSM100A-V1T4 0.047625 µm 101.6 mm (4.000") 35 µm (0.001378") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 24 mm/s (0.945"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 35 N (7.8 lb) < 18 µm (< 0.000709") < 18 µm (< 0.000709") 0.04° (0.698 mrad) 0.04° (0.698 mrad) 0.04° (0.698 mrad) 0.6096 mm (0.024") 0.43 kg (0.948 lb)
LSM100B-V1T4 0.1905 µm 101.6 mm (4.000") 45 µm (0.001772") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 100 mm/s (3.937"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 15 N (3.4 lb) < 18 µm (< 0.000709") < 18 µm (< 0.000709") 0.04° (0.698 mrad) 0.04° (0.698 mrad) 0.04° (0.698 mrad) 2.4384 mm (0.096") 0.43 kg (0.948 lb)
LSM150A-V1T4 0.047625 µm 152.4 mm (6.000") 50 µm (0.001968") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 24 mm/s (0.945"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 35 N (7.8 lb) < 25 µm (< 0.000984") < 23 µm (< 0.000906") 0.04° (0.698 mrad) 0.05° (0.873 mrad) 0.05° (0.873 mrad) 0.6096 mm (0.024") 0.47 kg (1.036 lb)
LSM150B-V1T4 0.1905 µm 152.4 mm (6.000") 65 µm (0.002559") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 100 mm/s (3.937"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 15 N (3.4 lb) < 25 µm (< 0.000984") < 23 µm (< 0.000906") 0.04° (0.698 mrad) 0.05° (0.873 mrad) 0.05° (0.873 mrad) 2.4384 mm (0.096") 0.47 kg (1.036 lb)
LSM200A-V1T4 0.047625 µm 203.2 mm (8.000") 60 µm (0.002362") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 24 mm/s (0.945"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 35 N (7.8 lb) < 32 µm (< 0.001260") < 27 µm (< 0.001063") 0.04° (0.698 mrad) 0.05° (0.873 mrad) 0.05° (0.873 mrad) 0.6096 mm (0.024") 0.50 kg (1.102 lb)
LSM200B-V1T4 0.1905 µm 203.2 mm (8.000") 85 µm (0.003346") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 100 mm/s (3.937"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 15 N (3.4 lb) < 32 µm (< 0.001260") < 27 µm (< 0.001063") 0.04° (0.698 mrad) 0.05° (0.873 mrad) 0.05° (0.873 mrad) 2.4384 mm (0.096") 0.50 kg (1.102 lb)

Specification Charts & Notes

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

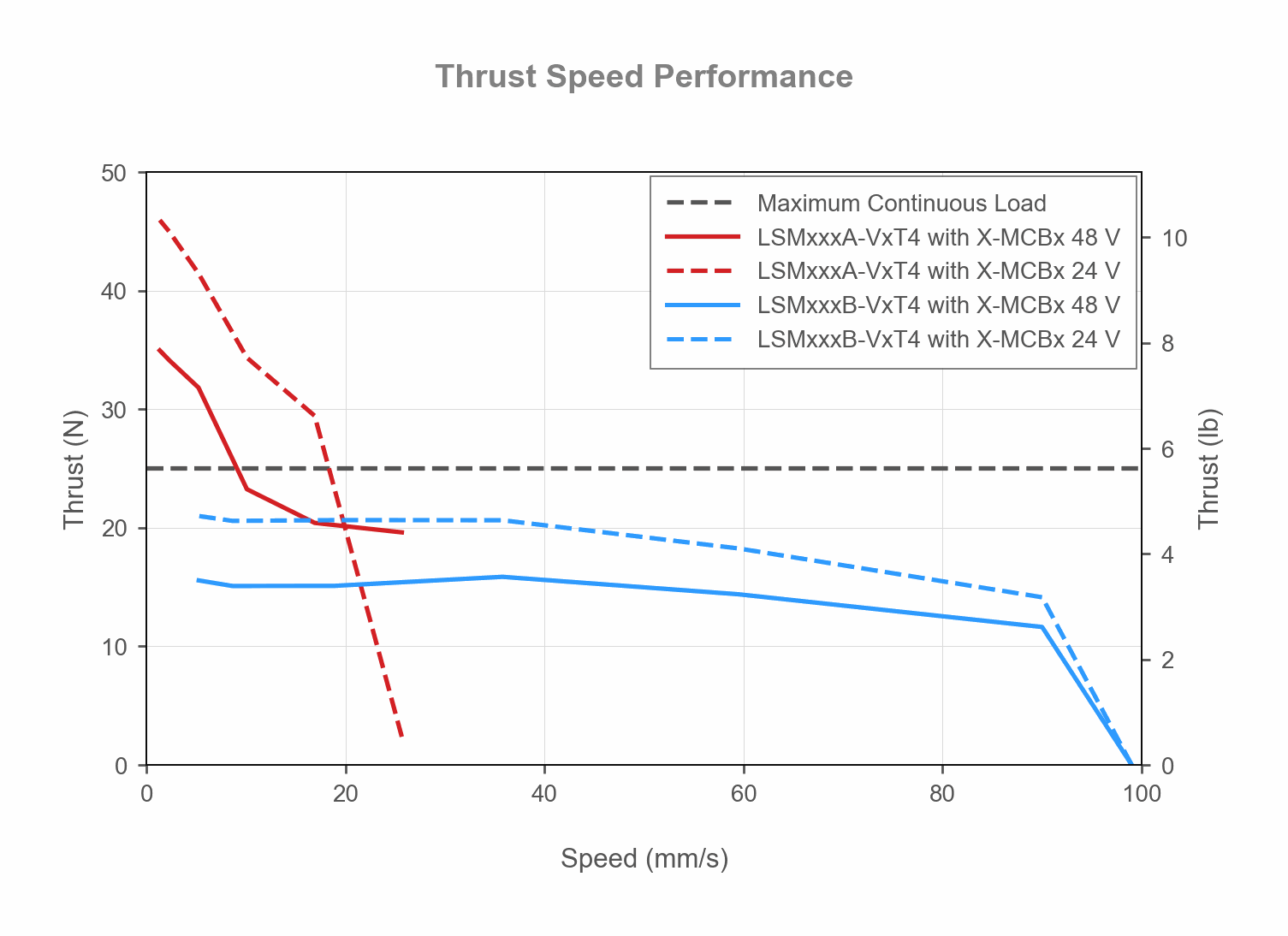

Thrust Speed Performance

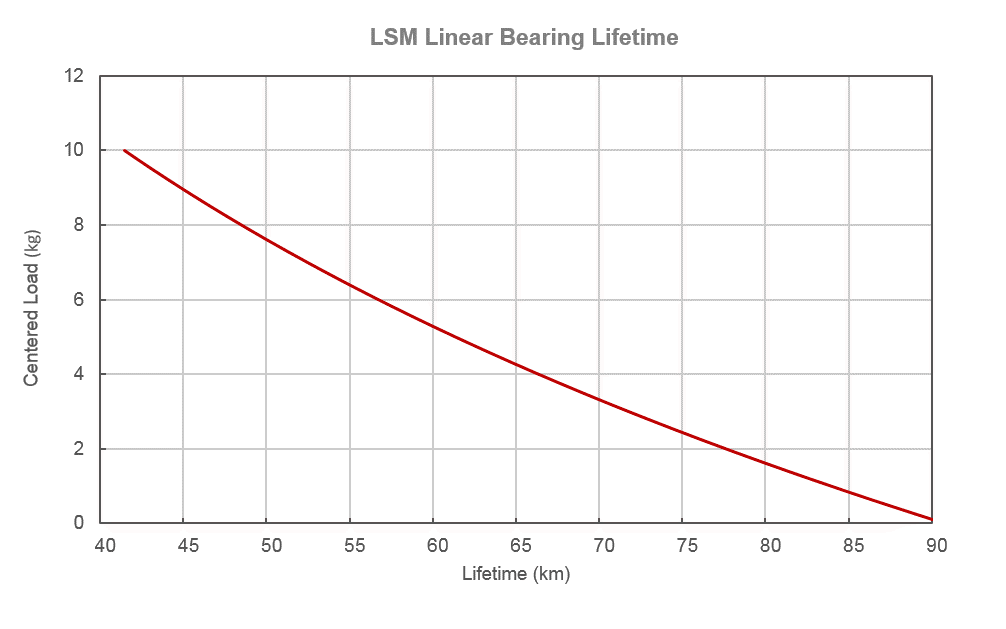

Bearing Lifetime

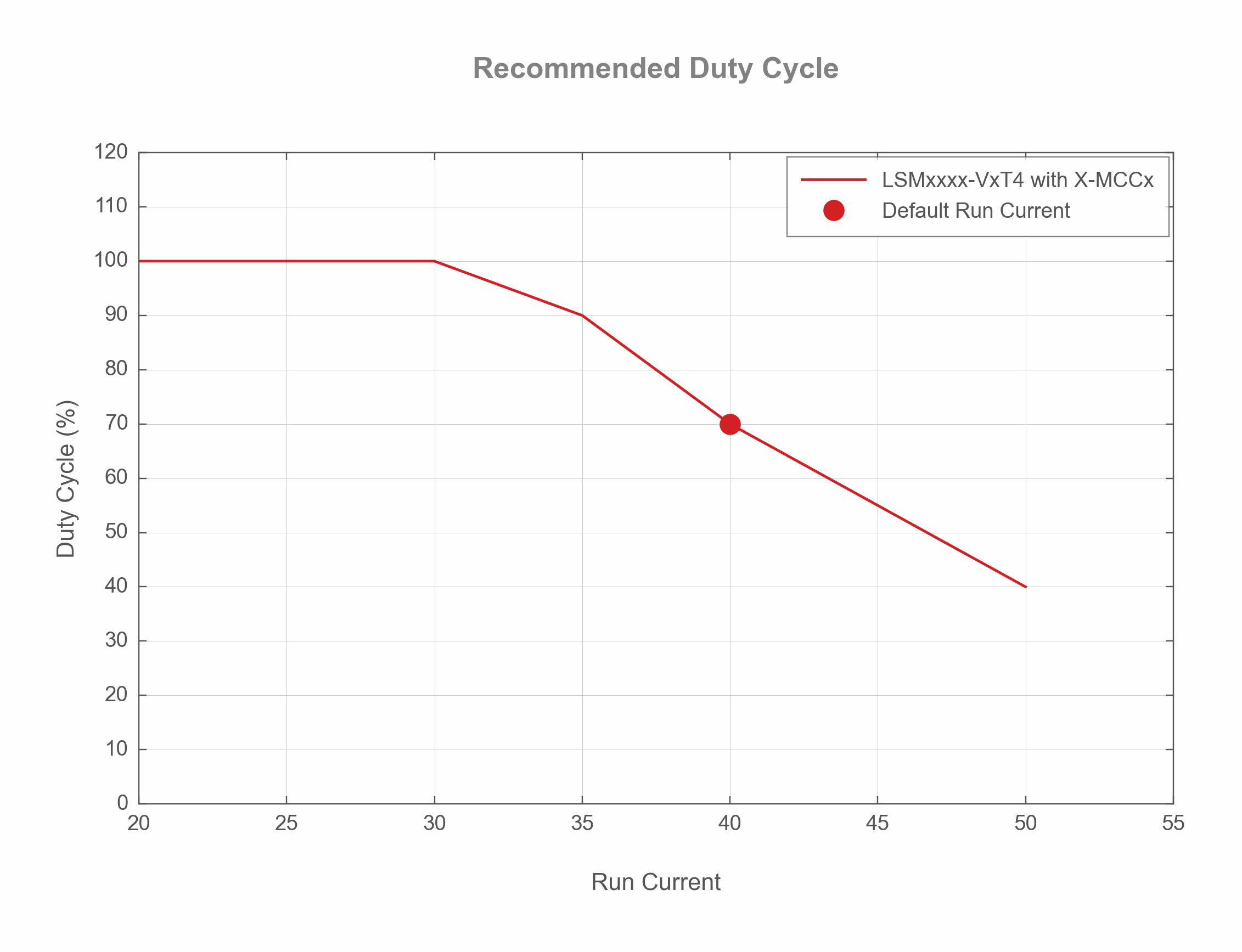

Duty Cycle
