LSM-V1 Series

Name: LSM-V1 Miniature, Low Vacuum, Motorized Linear Stages
Brand: Zaber
SKU: LSM-V1
Availability: InStock

Low vacuum miniature motorized linear stages

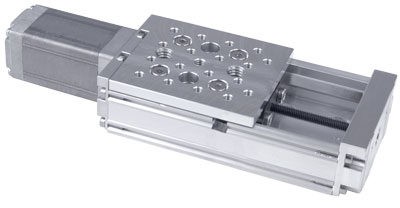

LSM-V1 low vacuum miniature motorized linear stage

Vacuum compatible to 10^-3 Torr
25, 50, 100, 150, 200 mm travel
Up to 100 mm/s speed and up to 35 N thrust
10 kg load capacity
Designed for use with MCC Family controllers or any 2-phase stepper motor controller
Only 7 feedthrough wires required to control these units
Custom versions available

Have a Question?

Response time promise: 1 business day

Have a Question?

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Lead Screw Options

Options

-V1: Low-vacuum compatible: 10-3 Torr

Connector

T4: D-sub 15 inline connector

Part Number	Description	Lead Time	Starting Prices (USD) *
LSM025A-V1T4	25 mm Travel \| Fine Resolution \| Low Speed	5-10 Days	$4,123
LSM025B-V1T4	25 mm Travel \| Medium Resolution \| Medium Speed	5-10 Days	$4,123
LSM050A-V1T4	50 mm Travel \| Fine Resolution \| Low Speed	5-10 Days	$4,297
LSM050B-V1T4	50 mm Travel \| Medium Resolution \| Medium Speed	5-10 Days	$4,297
LSM100A-V1T4	100 mm Travel \| Fine Resolution \| Low Speed	5-10 Days	$4,646
LSM100B-V1T4	100 mm Travel \| Medium Resolution \| Medium Speed	5-10 Days	$4,646
LSM150A-V1T4	150 mm Travel \| Fine Resolution \| Low Speed	5-10 Days	$4,820
LSM150B-V1T4	150 mm Travel \| Medium Resolution \| Medium Speed	5-10 Days	$4,820
LSM200A-V1T4	200 mm Travel \| Fine Resolution \| Low Speed	5-10 Days	$4,995
LSM200B-V1T4	200 mm Travel \| Medium Resolution \| Medium Speed	5-10 Days	$4,995

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *
MC03	Motor Extension Cable, 1.5 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$27
MC03L060	Motor Extension Cable, 0.6 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$45
MC03L300	Motor Extension Cable, 3.0 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$49
MC10T3	Motor Conversion Cable, 1.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$33
MC10T3L060	Motor Conversion Cable, 0.6 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$39
MC10T3L300	Motor Conversion Cable, 3.0 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$51
MC10T3L450	Motor Conversion Cable, 4.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$59

Accessory	Description	Lead Time	Price (USD) *	Add to Cart
AB103-V	Miniature Angle Bracket, 90 Degrees, Vacuum Compatible	1-5 Days	$94
AP101-V	LSM-SV Bottom Adapter Plate, Vacuum Compatible	1-5 Days	$83

* These are our direct prices in USD to customers in North America. If you are in Canada, select CAD from the currency menu at the top right of the page. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
