M-LSM Series

Motorized micromanipulators

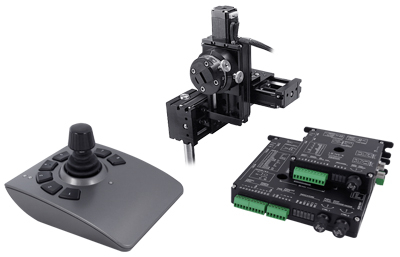

Photo of the M-LSM025A025A025ALHP-M02T4

Image is representative of the M-LSM Series and may not match the selected variant.

M-LSM025A025A025ALHP-M02T4A

Optical Post Mount | Left Hand

Starting Price: $8,025 * | Discontinued

M-LSM025A025A025ALHP-M02T4A Specifications

Download Datasheet
Microstep Size (Default Resolution) 0.047625 µm
Recommended Controller X-MCB2 (24 V) Recommended and X-MCB1 (24 V)
AutoDetect Yes
Travel Range 25.4 mm (1")
Accuracy (unidirectional) 15 µm (0.000591")
Repeatability < 3 µm (< 0.000118")
Backlash < 12 µm (< 0.000472")
Maximum Speed 14 mm/s (0.551"/s)
Minimum Speed 0.000029 mm/s (0.000001"/s)
Speed Resolution 0.000029 mm/s (0.000001"/s)
Encoder Type No
Peak Thrust
Communication Interface RS-232
Communication Protocol Zaber Binary or Zaber ASCII
Flatness of Travel < 8 µm (< 0.000315")
Straightness of Travel < 12 µm (< 0.000472")
Pitch 0.02° (0.349 mrad)
Roll 0.02° (0.349 mrad)
Yaw 0.03° (0.523 mrad)
Probe Diameter Range 2-13 mm (0.079")
Probe Angle Range 360° (6.283 rad)
Linear Motion Per Motor Rev 0.6096 mm (0.024")
Motor Steps Per Rev 200
Motor Type Stepper (2 phase)
Motor Rated Current
Motor Winding Resistance
Motor Winding Inductance 1.7 mH/phase
Motor Rated Power
Motor Connection D-sub 15
Default Resolution 1/64 of a step
Guide Type Needle roller bearing
Mechanical Drive System Precision lead screw
Limit or Home Sensing Magnetic hall sensor
Axes of Motion 3
Stage Parallelism < 25 µm (< 0.000984")
Joystick Control Velocity Mode
Operating Temperature Range 0 to 50 °C
CE Compliant Yes
Vacuum Compatible No
Weight 0.952 kg (2.099 lb)

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.

Specification Charts & Notes

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

Thrust Speed Performance

Photo of the LSMxxxA-T4A - Thrust Speed Performance - 19410, 19407

Bearing Lifetime

Linear Bearing Lifetime Chart of the
