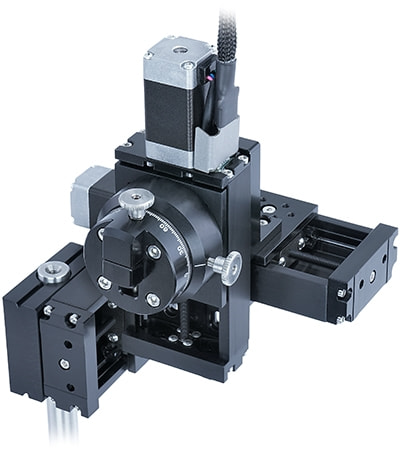

M-LSM Series
Motorized micromanipulators
- 25 mm travel XYZ with resolution finer than 0.05 µm
- Up to 26 mm/s speed and 55 N thrust
- Adjustable probe holder
- Programmable or joystick-activated 4th virtual axis to allow approach along probe angle
- Plug and play controllers and Joystick included
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day
Have a Question?
Filter By Feature
Choose one or more options below to filter the parts table.
M-LSMTravel: 025Lead Screw Options: ATravel: 025Lead Screw Options: ATravel: 025Lead Screw Options: AHanded: LH, not selectedZ-Mounting Options: F, not selected-Connector: T4A
Showing 4 of 4 parts.Lead Screw Options
Travel
Lead Screw Options
Travel
Lead Screw Options
Handed
Z-Mounting Options
Connector
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart | Add To Compare |
|---|---|---|---|---|---|
| M-LSM025A025A025ALHF-T4A | Left Hand | Base Mount | 5-7 Days | $9,647 | ||
| M-LSM025A025A025ALHP-T4A | Left Hand | Optical Post Mount | 5-7 Days | $9,647 | ||
| M-LSM025A025A025ARHF-T4A | Right Hand | Base Mount | 5-7 Days | $9,647 | ||
| M-LSM025A025A025ARHP-T4A | Right Hand | Optical Post Mount | 5-7 Days | $9,647 |
Compatible Accessories
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AB103B | Miniature Angle Bracket, 90 Degrees | 1-5 Days | $96 | |
| AB117 | Probe Holder, 2-13 mm Range | 1-5 Days | $274 | |
| AP116 | 360 Degrees Bracket | 1-5 Days | $310 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
