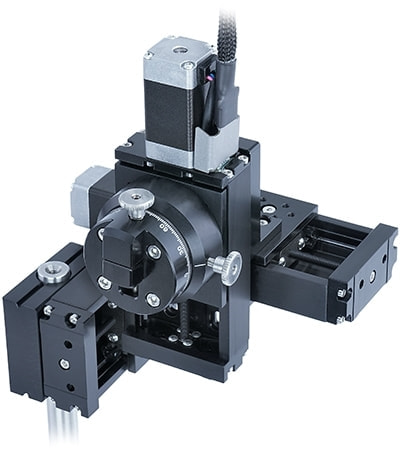

M-LSM Family
Micromanipulators
- 25 mm travel XYZ with resolution finer than 0.05 µm
- Adjustable probe holder
- Programmable or joystick-activated 4th virtual axis to allow approach along probe angle
- Plug and play controllers and Joystick included
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
| Best Accuracy | Best Backlash | Best Repeatability | Highest Speed | Highest Thrust |
|---|---|---|---|---|
15 µm (0.000591") | < 12 µm (< 0.000472") | < 3 µm (< 0.000118") | 26 mm/s (1.024"/s) | 55 N (12.3 lb) |
| Series Name | Built-In Motor | Price Range ( USD ) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|
| M-LSM | Stepper Motor | $9,647 | 5-7 Days |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
M-LSM Customization Examples
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day
Custom 3-axis Controller
This custom 3-axis ControlCube is ideal for XYZ applications requiring fine displacement control. The intuitive layout permits precise and smooth manual operation for motorized systems, such as micromanipulators and microscope stages.
The ControlCube offers similar functionality to Zaber's standard device knobs, providing much finer control. It works with modified Zaber stand-alone controllers and devices with built-in controllers, which are customized with a locking connector in place of the manual knob.
The ControlCube can be paired with a standard joystick (X-JOY3) to add programmable buttons for varying the displacement increments of the dials or toggling between displacement and velocity control modes.
