X-LRQ-DE Series
High precision stages with built-in controllers and linear encoders
Series Specifications
Download Datasheet
Part Specifications Comparison
Showing 30 of 30 Parts.
| Part Number | Microstep Size (Default Resolution) | Travel Range | Accuracy (unidirectional) | Backlash | Maximum Speed | Minimum Speed | Speed Resolution | Peak Thrust | Back-driving Force* | Maximum Continuous Thrust | Flatness of Travel | Straightness of Travel | Pitch | Roll | Yaw | Linear Motion Per Motor Rev | Mechanical Drive System | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X-LRQ075AL-DE51 | 0.09921875 µm | 75 mm (2.953") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 1.27 mm (0.05") | Precision lead screw | 2.29 kg (5.049 lb) |
| X-LRQ075AP-DE51 | 0.09921875 µm | 75 mm (2.953") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 1.27 mm (0.05") | Precision lead screw | 2.45 kg (5.401 lb) |
| X-LRQ075BL-DE51 | 0.49609375 µm | 75 mm (2.953") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.63"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 93 N (20.9 lb) | 100 N (22.4 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 6.35 mm (0.25") | Precision lead screw | 2.29 kg (5.049 lb) |
| X-LRQ075BP-DE51 | 0.49609375 µm | 75 mm (2.953") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.63"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 123 N (27.6 lb) | 100 N (22.4 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 6.35 mm (0.25") | Precision lead screw | 2.45 kg (5.401 lb) |
| X-LRQ075HL-DE51 | 0.1953125 µm | 75 mm (2.953") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 93 N (20.9 lb) | 200 N (44.9 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 2.5 mm (0.098") | Precision ball screw | 2.29 kg (5.049 lb) |
| X-LRQ075HP-DE51 | 0.1953125 µm | 75 mm (2.953") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 123 N (27.6 lb) | 200 N (44.9 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 2.5 mm (0.098") | Precision ball screw | 2.45 kg (5.401 lb) |
| X-LRQ150AL-DE51 | 0.09921875 µm | 150 mm (5.905") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 1.27 mm (0.05") | Precision lead screw | 2.68 kg (5.908 lb) |
| X-LRQ150AP-DE51 | 0.09921875 µm | 150 mm (5.905") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 1.27 mm (0.05") | Precision lead screw | 2.84 kg (6.261 lb) |
| X-LRQ150BL-DE51 | 0.49609375 µm | 150 mm (5.905") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.63"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 93 N (20.9 lb) | 100 N (22.4 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 6.35 mm (0.25") | Precision lead screw | 2.68 kg (5.908 lb) |
| X-LRQ150BP-DE51 | 0.49609375 µm | 150 mm (5.905") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.63"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 123 N (27.6 lb) | 100 N (22.4 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 6.35 mm (0.25") | Precision lead screw | 2.84 kg (6.261 lb) |
| X-LRQ150HL-DE51 | 0.1953125 µm | 150 mm (5.905") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 93 N (20.9 lb) | 200 N (44.9 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 2.5 mm (0.098") | Precision ball screw | 2.68 kg (5.908 lb) |
| X-LRQ150HP-DE51 | 0.1953125 µm | 150 mm (5.905") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 123 N (27.6 lb) | 200 N (44.9 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 2.5 mm (0.098") | Precision ball screw | 2.84 kg (6.261 lb) |
| X-LRQ300AL-DE51 | 0.09921875 µm | 300 mm (11.811") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 1.27 mm (0.05") | Precision lead screw | 3.48 kg (7.672 lb) |
| X-LRQ300AP-DE51 | 0.09921875 µm | 300 mm (11.811") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 1.27 mm (0.05") | Precision lead screw | 3.64 kg (8.025 lb) |
| X-LRQ300BL-DE51 | 0.49609375 µm | 300 mm (11.811") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.63"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 93 N (20.9 lb) | 100 N (22.4 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 6.35 mm (0.25") | Precision lead screw | 3.48 kg (7.672 lb) |
| X-LRQ300BP-DE51 | 0.49609375 µm | 300 mm (11.811") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.63"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 123 N (27.6 lb) | 100 N (22.4 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 6.35 mm (0.25") | Precision lead screw | 3.64 kg (8.025 lb) |
| X-LRQ300HL-DE51 | 0.1953125 µm | 300 mm (11.811") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 93 N (20.9 lb) | 200 N (44.9 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 2.5 mm (0.098") | Precision ball screw | 3.48 kg (7.672 lb) |
| X-LRQ300HP-DE51 | 0.1953125 µm | 300 mm (11.811") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 123 N (27.6 lb) | 200 N (44.9 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 2.5 mm (0.098") | Precision ball screw | 3.64 kg (8.025 lb) |
| X-LRQ450AL-DE51 | 0.09921875 µm | 450 mm (17.716") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 1.27 mm (0.05") | Precision lead screw | 4.27 kg (9.414 lb) |
| X-LRQ450AP-DE51 | 0.09921875 µm | 450 mm (17.716") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 1.27 mm (0.05") | Precision lead screw | 4.43 kg (9.766 lb) |
| X-LRQ450BL-DE51 | 0.49609375 µm | 450 mm (17.716") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.63"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 93 N (20.9 lb) | 100 N (22.4 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 6.35 mm (0.25") | Precision lead screw | 4.27 kg (9.414 lb) |
| X-LRQ450BP-DE51 | 0.49609375 µm | 450 mm (17.716") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.63"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 123 N (27.6 lb) | 100 N (22.4 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 6.35 mm (0.25") | Precision lead screw | 4.43 kg (9.766 lb) |
| X-LRQ450HL-DE51 | 0.1953125 µm | 450 mm (17.716") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 93 N (20.9 lb) | 200 N (44.9 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 2.5 mm (0.098") | Precision ball screw | 4.27 kg (9.414 lb) |
| X-LRQ450HP-DE51 | 0.1953125 µm | 450 mm (17.716") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 123 N (27.6 lb) | 200 N (44.9 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 2.5 mm (0.098") | Precision ball screw | 4.43 kg (9.766 lb) |
| X-LRQ600AL-DE51 | 0.09921875 µm | 600 mm (23.622") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 1.27 mm (0.05") | Precision lead screw | 5.02 kg (11.067 lb) |
| X-LRQ600AP-DE51 | 0.09921875 µm | 600 mm (23.622") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 1.27 mm (0.05") | Precision lead screw | 5.18 kg (11.42 lb) |
| X-LRQ600BL-DE51 | 0.49609375 µm | 600 mm (23.622") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.63"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 93 N (20.9 lb) | 100 N (22.4 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 6.35 mm (0.25") | Precision lead screw | 5.02 kg (11.067 lb) |
| X-LRQ600BP-DE51 | 0.49609375 µm | 600 mm (23.622") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.63"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 123 N (27.6 lb) | 100 N (22.4 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 6.35 mm (0.25") | Precision lead screw | 5.18 kg (11.42 lb) |
| X-LRQ600HL-DE51 | 0.1953125 µm | 600 mm (23.622") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 93 N (20.9 lb) | 200 N (44.9 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 2.5 mm (0.098") | Precision ball screw | 5.02 kg (11.067 lb) |
| X-LRQ600HP-DE51 | 0.1953125 µm | 600 mm (23.622") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 123 N (27.6 lb) | 200 N (44.9 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 2.5 mm (0.098") | Precision ball screw | 5.18 kg (11.42 lb) |
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

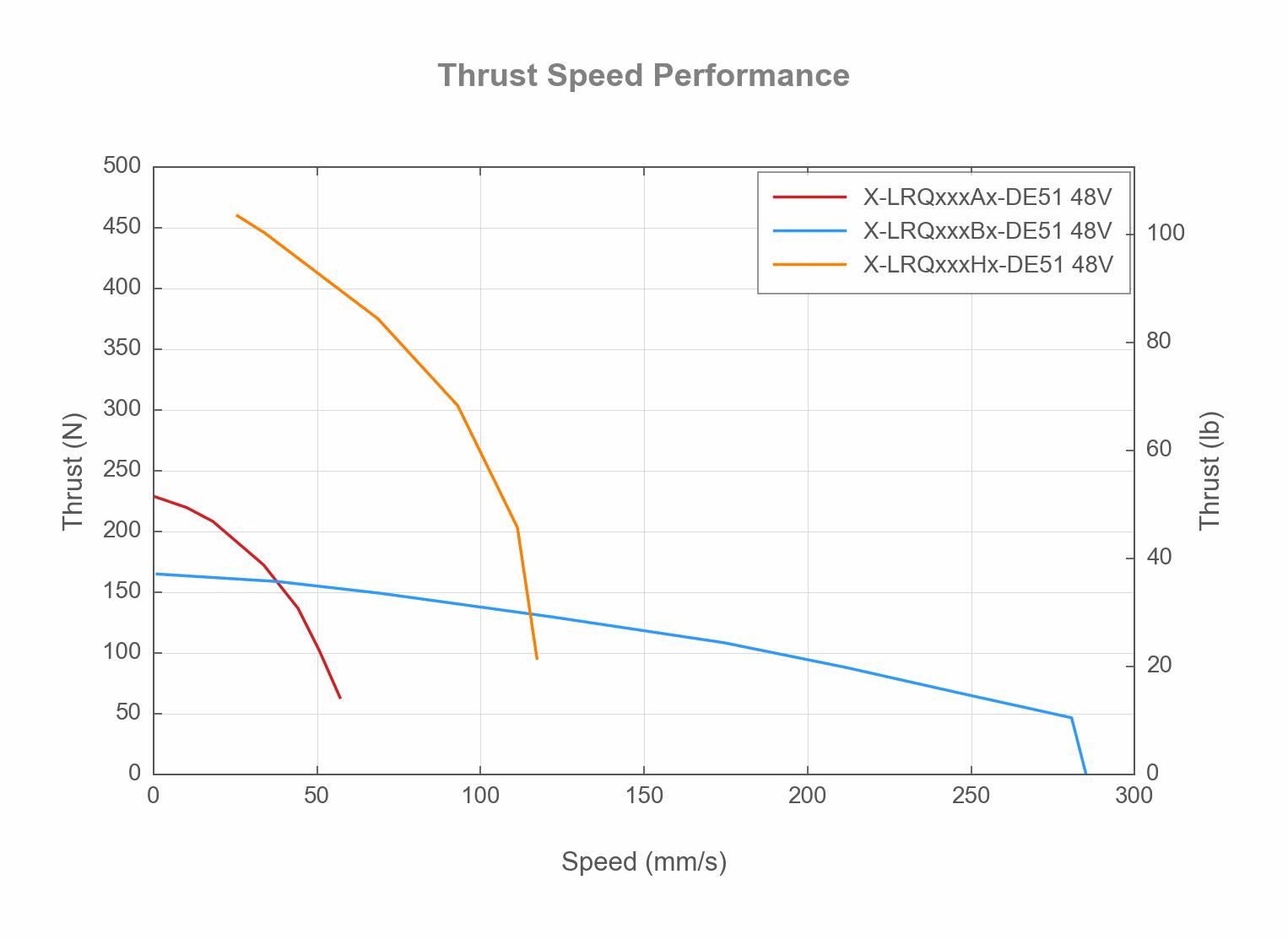

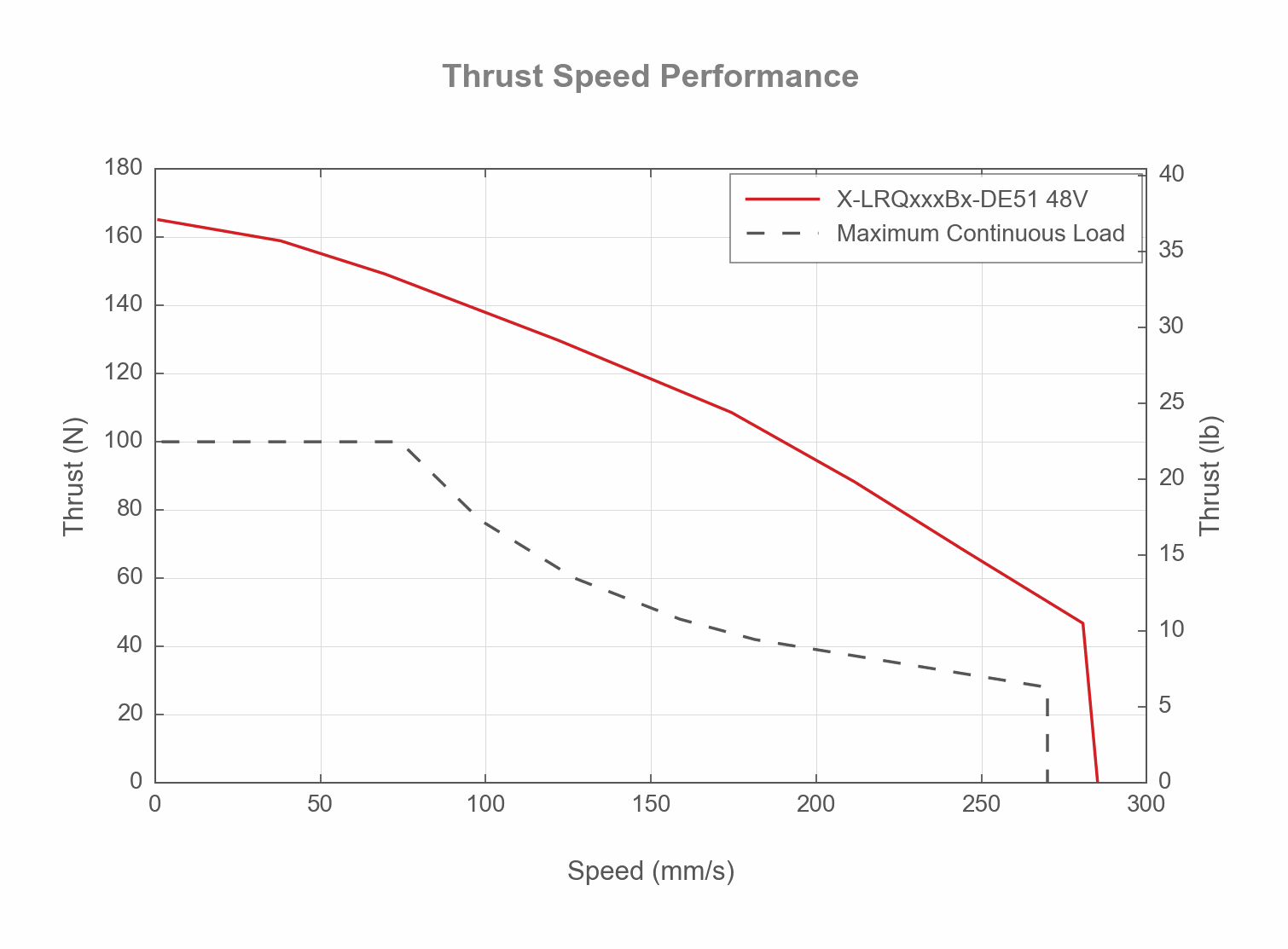

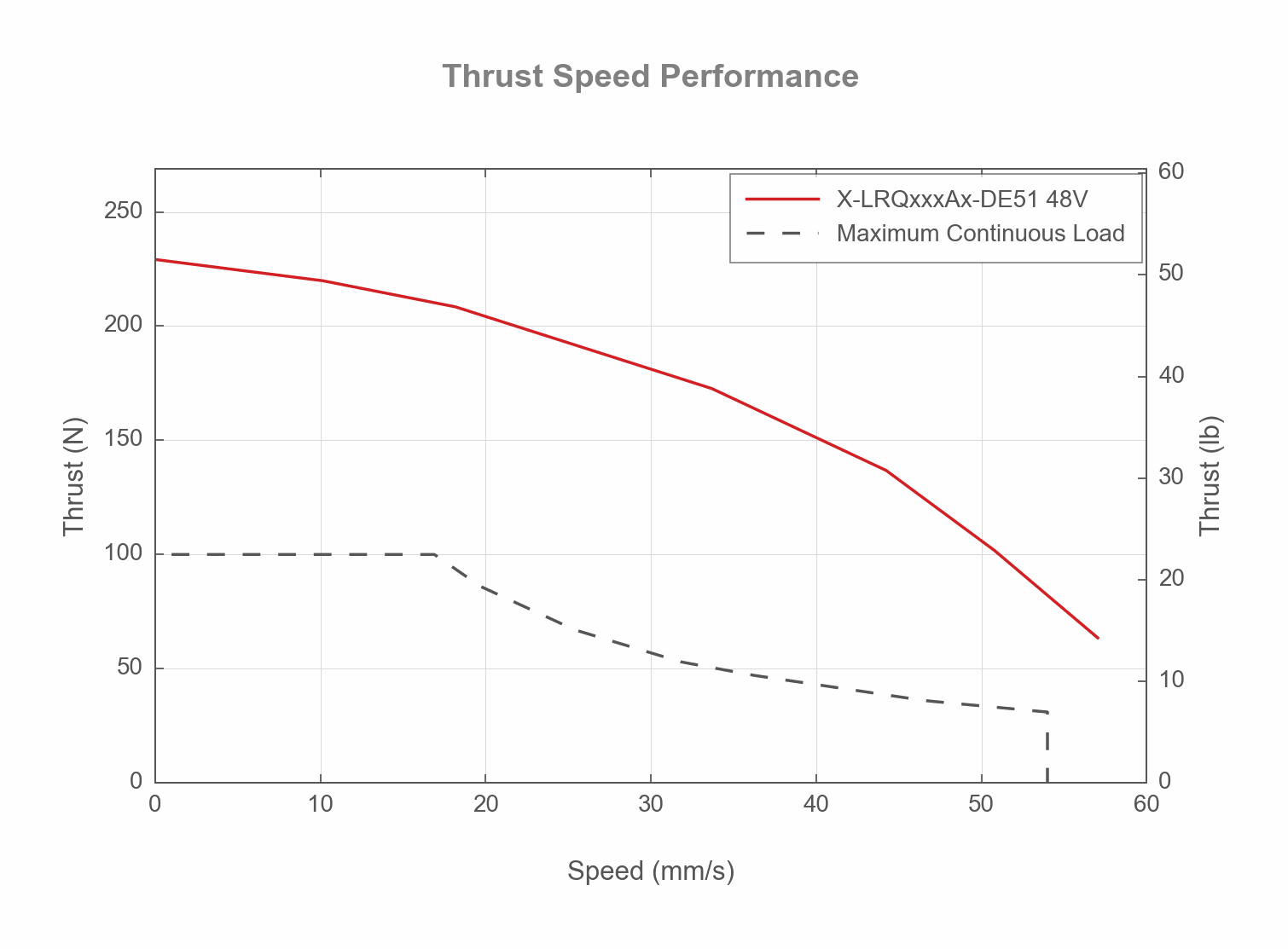

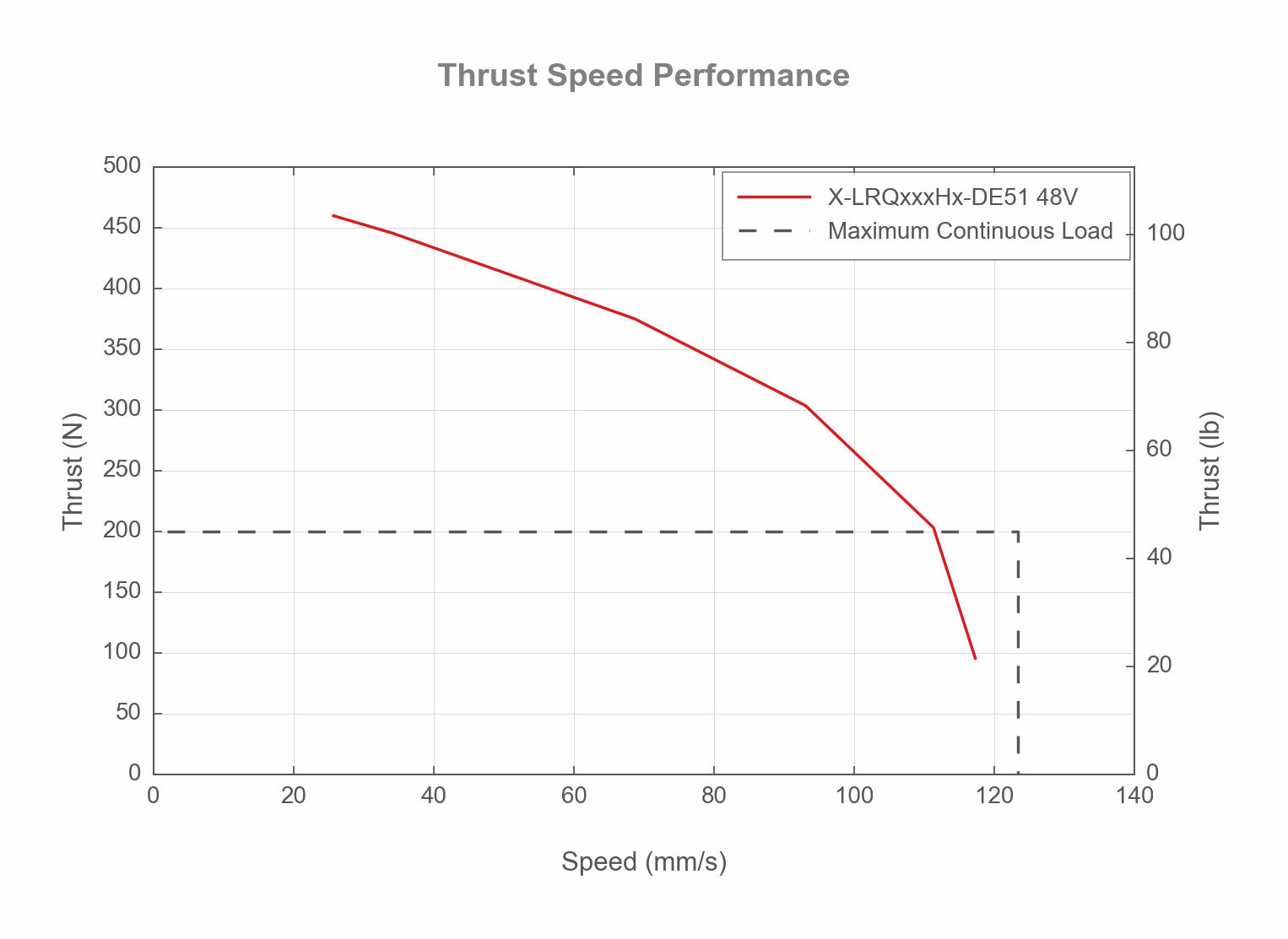

Thrust Speed Performance

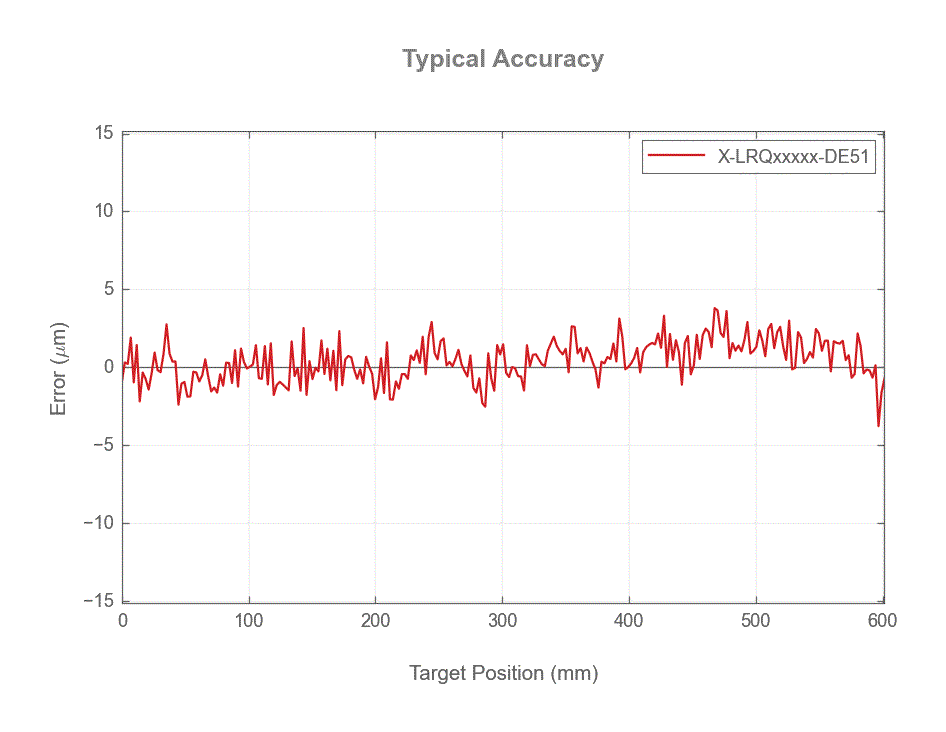

Typical Accuracy

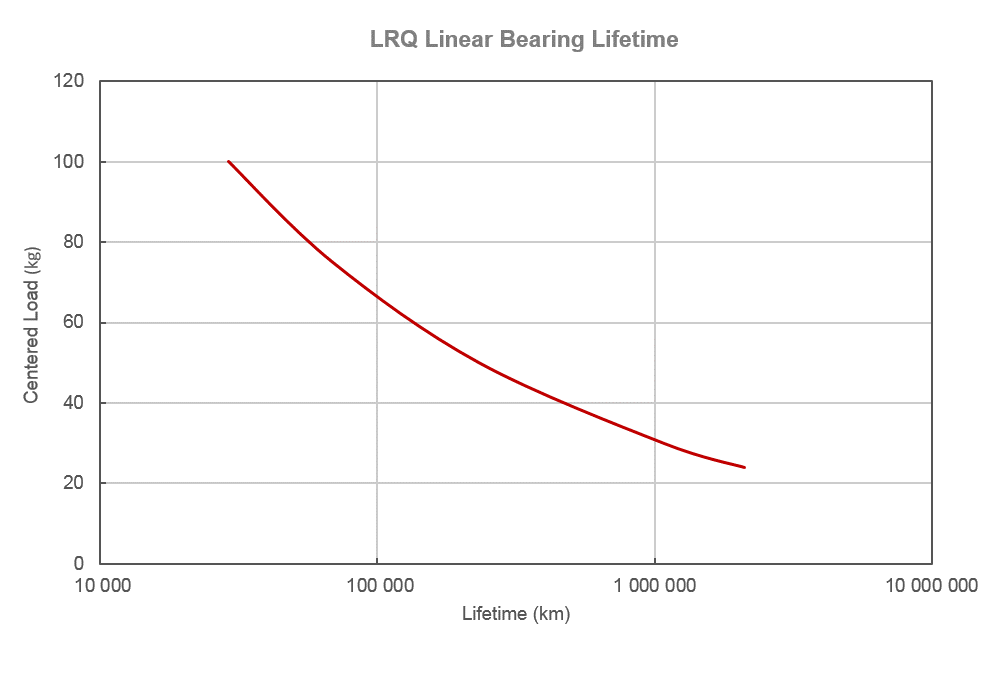

Bearing Lifetime
