X-LRQ-DE Series

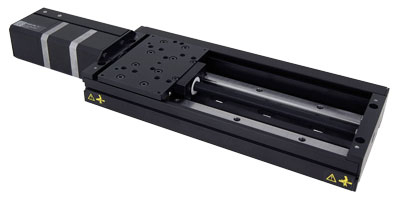

Name: X-LRQ-DE High-Precision Motorized Linear Stages
Brand: Zaber
SKU: X-LRQ-DE
Availability: InStock

High precision stages with built-in controllers and linear encoders

75, 150, 300, 450, 600 mm travel
Up to 10 µm accuracy over 600 mm travel
Up to 205 mm/s speed and up to 300 N thrust
100 kg load capacity
Inline and parallel drive configurations
Ball screw and lead screw configurations
Integrated linear encoders with 50 nm resolution provide slip/stall detection and position correction
Built-in controller; daisy-chains with other Zaber products
Custom versions available

Have a Question?

Response time promise: 1 business day

Have a Question?

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Lead Screw Options

Drive Configuration

Encoder Options

DE51: Linear quadrature encoder, 50 nm

Part Number	Description	Lead Time	Starting Prices (USD) *
X-LRQ075AL-DE51	Lead-screw Driven \| 75 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	4-7 Days	$5,359
X-LRQ075AP-DE51	Lead-screw Driven \| 75 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	4-7 Days	$5,359
X-LRQ075BL-DE51	Lead-screw Driven \| 75 mm Travel \| Medium Resolution \| Medium Speed \| Inline Drive	4-7 Days	$5,359
X-LRQ075BP-DE51	Lead-screw Driven \| 75 mm Travel \| Medium Resolution \| Medium Speed \| Parallel Drive	4-7 Days	$5,359
X-LRQ075HL-DE51	Ball-screw Driven \| 75 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	4-7 Days	$5,359
X-LRQ075HP-DE51	Ball-screw Driven \| 75 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	4-7 Days	$5,359
X-LRQ150AL-DE51	Lead-screw Driven \| 150 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	4-7 Days	$5,883
X-LRQ150AP-DE51	Lead-screw Driven \| 150 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	4-7 Days	$5,883
X-LRQ150BL-DE51	Lead-screw Driven \| 150 mm Travel \| Medium Resolution \| Medium Speed \| Inline Drive	4-7 Days	$5,883
X-LRQ150BP-DE51	Lead-screw Driven \| 150 mm Travel \| Medium Resolution \| Medium Speed \| Parallel Drive	4-7 Days	$5,883
X-LRQ150HL-DE51	Ball-screw Driven \| 150 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	4-7 Days	$5,883
X-LRQ150HP-DE51	Ball-screw Driven \| 150 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	4-7 Days	$5,883
X-LRQ300AL-DE51	Lead-screw Driven \| 300 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	4-7 Days	$6,742
X-LRQ300AP-DE51	Lead-screw Driven \| 300 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	4-7 Days	$6,742
X-LRQ300BL-DE51	Lead-screw Driven \| 300 mm Travel \| Medium Resolution \| Medium Speed \| Inline Drive	4-7 Days	$6,742
X-LRQ300BP-DE51	Lead-screw Driven \| 300 mm Travel \| Medium Resolution \| Medium Speed \| Parallel Drive	4-7 Days	$6,742
X-LRQ300HL-DE51	Ball-screw Driven \| 300 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	4-7 Days	$6,742
X-LRQ300HP-DE51	Ball-screw Driven \| 300 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	4-7 Days	$6,742
X-LRQ450AL-DE51	Lead-screw Driven \| 450 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	4-7 Days	$7,617
X-LRQ450AP-DE51	Lead-screw Driven \| 450 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	4-7 Days	$7,617
X-LRQ450BL-DE51	Lead-screw Driven \| 450 mm Travel \| Medium Resolution \| Medium Speed \| Inline Drive	4-7 Days	$7,617
X-LRQ450BP-DE51	Lead-screw Driven \| 450 mm Travel \| Medium Resolution \| Medium Speed \| Parallel Drive	4-7 Days	$7,617
X-LRQ450HL-DE51	Ball-screw Driven \| 450 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	4-7 Days	$7,617
X-LRQ450HP-DE51	Ball-screw Driven \| 450 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	4-7 Days	$7,617
X-LRQ600AL-DE51	Lead-screw Driven \| 600 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	4-7 Days	$8,412
X-LRQ600AP-DE51	Lead-screw Driven \| 600 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	4-7 Days	$8,412
X-LRQ600BL-DE51	Lead-screw Driven \| 600 mm Travel \| Medium Resolution \| Medium Speed \| Inline Drive	4-7 Days	$8,412
X-LRQ600BP-DE51	Lead-screw Driven \| 600 mm Travel \| Medium Resolution \| Medium Speed \| Parallel Drive	4-7 Days	$8,412
X-LRQ600HL-DE51	Ball-screw Driven \| 600 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	4-7 Days	$8,412
X-LRQ600HP-DE51	Ball-screw Driven \| 600 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	4-7 Days	$8,412

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *
T-XDC	X-Series to A-Series / T-Series Adaptor Cable	1-5 Days	$18
X-DC06	Data Cable, 6 ft (2 m), X-Series Products	1-5 Days	$24
X-DC15	Data Cable, 15 ft (4.5 m), X-Series Products	1-5 Days	$42
X-DC25	Data Cable, 25 ft (7.6 m), X-Series Products	1-5 Days	$47
X-TDC	A-Series / T-Series to X-Series Adaptor Cable	1-5 Days	$19
X-USBDC	USB to Serial Converter Cable, M8 Female Plug, X-Series Products	1-5 Days	$46

Accessory	Description	Lead Time	Price (USD) *
AB104	Angle Bracket, 90 Degrees, Large, Metric	1-5 Days	$194
AB164	Angle Bracket, 90 Degrees, Large, LRQ	1-5 Days	$194
AB255	Angle bracket, 90 degrees, metric, LDM	1-5 Days	$425
AB90M	Angle Bracket, 90 Degrees, Metric Mounting Holes	1-5 Days	$141
AP101	LSM Bottom Adaptor Plate	1-5 Days	$75
AP165	Adaptor Plate, XY Spacer for LRQxP	1-5 Days	$107
AP257	Adaptor Plate, M6 Grid to Metric Mounting	1-5 days	$162

Accessory	Description	Lead Time	Price (USD) *
PS12S-24V30	Power Supply, 24 V 3.0 A	1-5 Days	$50
PS13S-48V12	Power Supply, 48 V 1.25 A	1-5 Days	$37
PS14S-48V37	Power Supply, 48 V 3.75 A	1-5 Days	$112
