BLQ-E Series

Motorized linear stages with built-in motor encoders

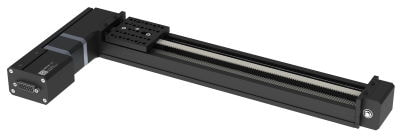

Photo of the BLQ-E
  • 70 to 3000 mm travel
  • Up to 2.0 m/s speed, 55 N thrust, and 20 kg load capacity
  • Integrated recirculating ball bearing guide provides exceptional lifetime
  • Integrated, 500 CPR, motor mounted encoder provides slip/stall detection and recovery
  • Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
  • With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral

Part Numbering & Options

Part Numbering Scheme of the BLQ-E
Part NumberDescriptionLead TimeStarting
Prices (USD) *
Add to Cart
BLQ0070-E01T3A70 mm Travel1-5 Days$1,763
BLQ0145-E01T3A145 mm Travel1-5 Days$2,011
BLQ0295-E01T3A295 mm Travel1-5 Days$2,259
BLQ0445-E01T3A445 mm Travel1-5 Days$2,507
BLQ0595-E01T3A595 mm Travel1-5 Days$2,755
BLQ1045-E01T3A1045 mm Travel1-5 Days$3,086
BLQ1495-E01T3A1495 mm Travel1-5 Days$3,339
BLQ2095-E01T3A2095 mm Travel5-10 Days$3,594
BLQ3000-E01T3A3000 mm Travel5-10 Days$4,101

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
