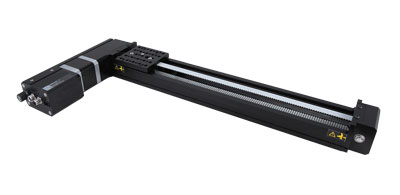

(Legacy) X-BLQ-E Series

Name: X-BLQ-E Belt-Driven Motorized Linear Stages
Brand: Zaber
SKU: X-BLQ-E
Availability: InStock

Closed-loop, belt-driven linear stages with built-in stepper motors, motor encoders, and controllers

70 to 3000 mm travel
Up to 2.0 m/s speed, 55 N thrust, and 20 kg load capacity
Encoder position feedback with slip/stall detection and automatic recovery
Built-in controller; daisy-chains with any other Zaber products

Have a Question?

Response time promise: 1 business day

Have a Question?

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Encoder Options

E01: Motor Encoder, 500 CPR

Part Number	Description	Lead Time	Starting Prices (USD) *
X-BLQ0070-E01	70 mm Travel	1-5 Days	$2,665
X-BLQ0145-E01	145 mm Travel	1-5 Days	$2,946
X-BLQ0295-E01	295 mm Travel	1-5 Days	$3,227
X-BLQ0445-E01	445 mm Travel	1-5 Days	$3,461
X-BLQ0595-E01	595 mm Travel	1-5 Days	$3,707
X-BLQ1045-E01	1045 mm Travel	1-5 Days	$4,072
X-BLQ1495-E01	1495 mm Travel	1-5 Days	$4,316
X-BLQ2095-E01	2095 mm Travel	5-10 Days	$4,595
X-BLQ3000-E01	3000 mm Travel	5-10 Days	$5,107

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *
T-XDC	X-Series to A-Series / T-Series Adaptor Cable	1-5 Days	$18
X-DC02	Data Cable, 2 ft (0.6 m), X-Series Products	1-5 Days	$15
X-DC02-F45	Data Cable 2 ft (0.6 m), Right Angle Female Connector, X-Series Products	1-5 Days	$24
X-DC02-F45-M45	Data Cable, 2 ft (0.6 m), Right Angle Connectors, X-Series Products	1-5 Days	$24
X-DC02-M45	Data Cable, 2 ft (0.6 m), Right Angle Male Connector, X-Series Products	1-5 Days	$24
X-DC15	Data Cable, 15 ft (4.5 m), X-Series Products	1-5 Days	$42
X-DC25	Data Cable, 25 ft (7.6 m), X-Series Products	1-5 Days	$47
X-TDC	A-Series / T-Series to X-Series Adaptor Cable	1-5 Days	$19

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
