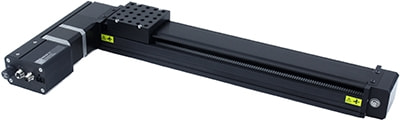

X-BLQ-EC Series
Motorized linear stages with built-in controllers, motor encoders, and covers
- 70 to 595 mm travel
- Up to 2.0 m/s speed, 55 N thrust, and 20 kg load capacity
- Encoder position feedback with slip/stall detection and automatic recovery
- Includes rigid cover
- Integrated recirculating ball bearing guide provides exceptional lifetime
- Built-in controller; daisy-chains with any other Zaber products
Part Numbering & Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart |
|---|---|---|---|---|
| X-BLQ0070-E01C | 70 mm Travel | 1-5 Days | $2,982 | |
| X-BLQ0145-E01C | 145 mm Travel | 1-5 Days | $3,263 | |
| X-BLQ0295-E01C | 295 mm Travel | 1-5 Days | $3,544 | |
| X-BLQ0445-E01C | 445 mm Travel | 1-5 Days | $3,773 | |
| X-BLQ0595-E01C | 595 mm Travel | 1-5 Days | $4,017 |
Compatible Accessories
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
