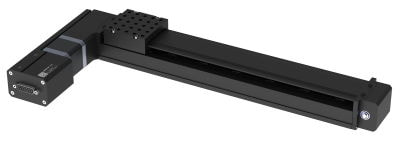

(Legacy) BLQ-EC Series
Motorized linear stages with built-in motor encoders and covers
- 70 to 595 mm travel
- Up to 2.0 m/s speed, 55 N thrust, and 20 kg load capacity
- Encoder position feedback with slip/stall detection and automatic recovery
- Includes rigid cover
- Integrated recirculating ball bearing guide provides exceptional lifetime
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
Have a Question?
Part Numbering & Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart | Add To Compare |
|---|---|---|---|---|---|
| BLQ0070-E01CT3A | 70 mm Travel | 1-5 Days | $2,145 | ||
| BLQ0145-E01CT3A | 145 mm Travel | 1-5 Days | $2,406 | ||
| BLQ0295-E01CT3A | 295 mm Travel | 1-5 Days | $2,666 | ||
| BLQ0445-E01CT3A | 445 mm Travel | 1-5 Days | $2,926 | ||
| BLQ0595-E01CT3A | 595 mm Travel | 1-5 Days | $3,187 |
Compatible Accessories
- All BLQs share mounting patterns and can be screwed together directly.
- Mounting options for stacking XY, theta, or tilt systems with Zaber stages are available here BLQ Adaptor Plates.
- Mounting options using angle bracket for L-shaped configurations with Zaber stages are available here BLQ Angle Brackets.
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AB90M | Angle Bracket, 90 Degrees, Metric Mounting Holes | 1-5 Days | $141 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
