AP247: LC40 Gantry Cable Guide Support, Y-Axis, Active, Parallel Dual Carriages
Price: $183 *
Lead Time: 1-5 Days | Weight: 0.406 kg
About This Accessory

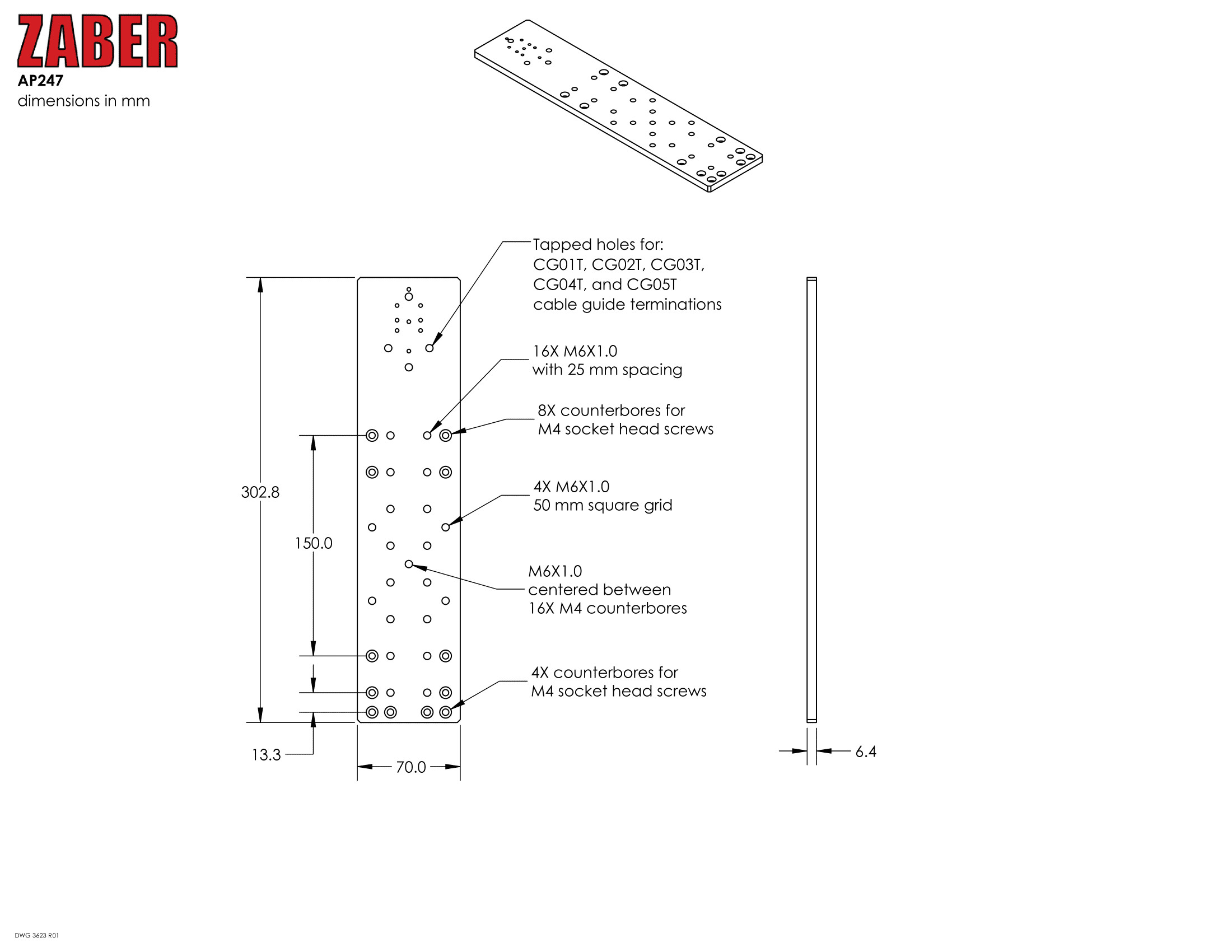

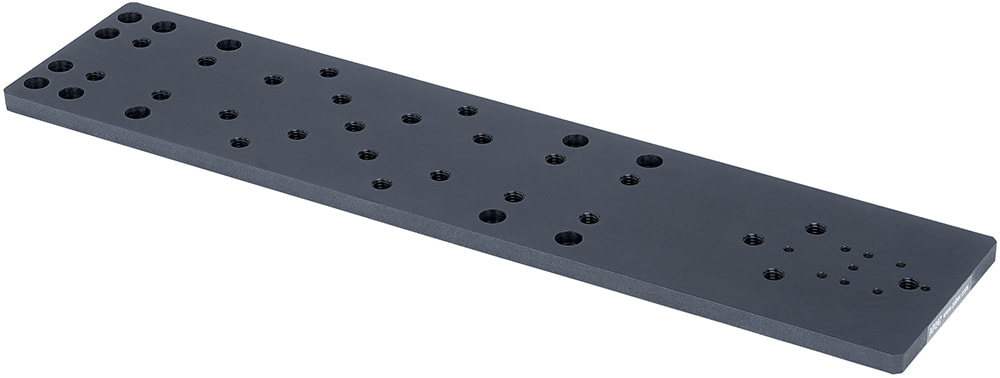

These plates mount to two parallel LC40 carriages from two LC40G/LC40B stages as well as the terminations of CG01, CG02, CG03, CG04, and CG05 cable guides. M6 threaded holes are provided to be compatible with RSW and RSB60 rotary stages, LRM linear stages, VSR vertical stages, or angle brackets like the AB151 and AB210.
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
