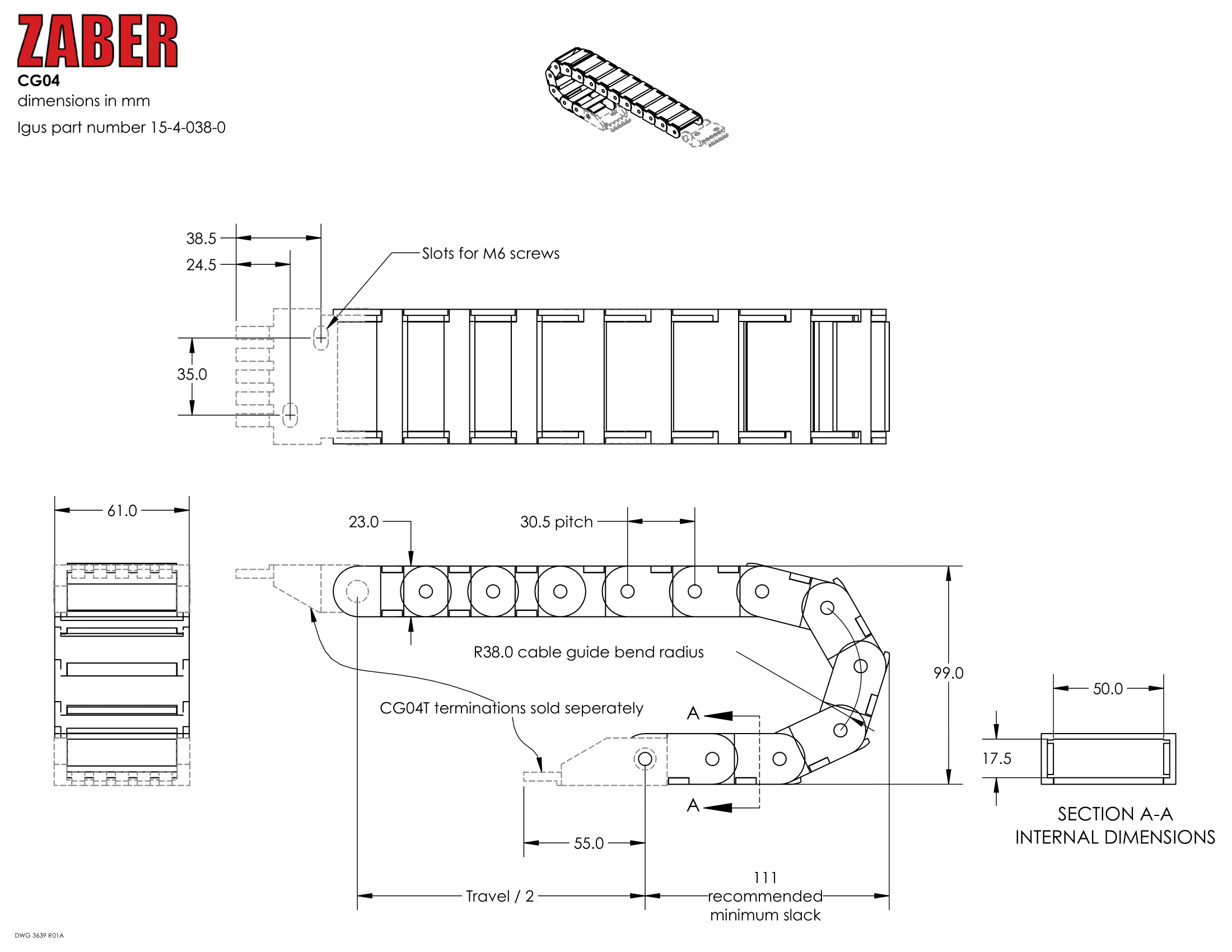

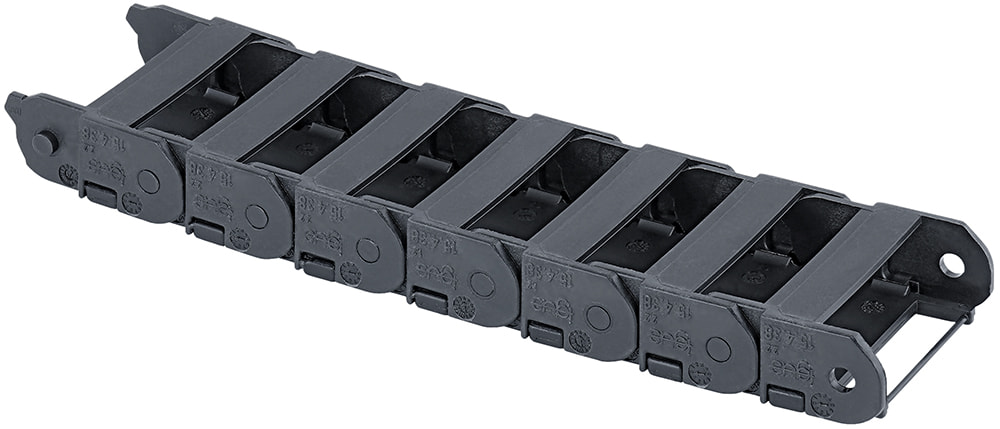

Cable Guide, 50 mm Width, 38 mm Bend Radius, Long Travel, Single Link
These cable guide links can be used to assemble a cable carrier of any desired length to provide cable management for multi-axis motion products, such as gantries. We recommend this series when the travel is longer than 1.5 m. These links provide a 50 mm wide opening, suitable for 1 to 3 motor cables and one additional data cable. For systems requiring more cables or large diameter cables, see the CG05. These cable guides are mounted using CG04T terminations (sold separately).
