LRM Series

Miniature, steel motorized linear stages

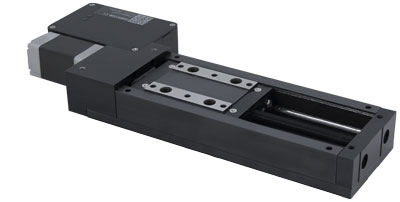

Photo of LRM
  • 25, 50, 100, 150, 200 mm travel
  • Up to 8 µm accuracy and 50 nm resolution
  • 50 kg load capacity
  • Hardened steel construction and integrated recirculating ball bearing guide provide exceptional stiffness and thermal stability
  • Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
  • With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral

Part Numbering & Options

Part Numbering Scheme of the LRM
Part NumberDescriptionLead TimeStarting
Prices (USD) *
Add to Cart
LRM025A-T3A25 mm Travel | Fine Resolution1-5 Days$2,366
LRM025B-T3A25 mm Travel | Medium Resolution1-5 Days$2,366
LRM050A-T3A50 mm Travel | Fine Resolution1-5 Days$2,610
LRM050B-T3A50 mm Travel | Medium Resolution1-5 Days$2,610
LRM100A-T3A100 mm Travel | Fine Resolution1-5 Days$2,854
LRM100B-T3A100 mm Travel | Medium Resolution1-5 Days$2,854
LRM150A-T3A150 mm Travel | Fine Resolution1-5 Days$3,098
LRM150B-T3A150 mm Travel | Medium Resolution1-5 Days$3,098
LRM200A-T3A200 mm Travel | Fine Resolution1-5 Days$3,342
LRM200B-T3A200 mm Travel | Medium Resolution1-5 Days$3,342

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
