CG03: Cable Guide, 64 mm Width, 38 mm Bend Radius, Single Link

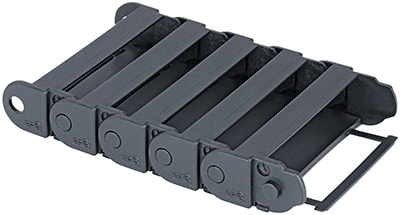

Photo of the CG03-RGB

Price: $3 *

Lead Time: 1-5 Days | Weight: 0.008 kg | Discontinued

About This Accessory

These cable guide links can be used to assemble a cable guide of any desired length to provide cable management for multi-axis motion products, such as gantries. We recommend this cable guide series when travel is 1.5 m or shorter. These links provide a 64 mm wide opening, suitable for 1 to 4 motor cables. Cable guides assembled with these links should be mounted using CG03T terminations (sold separately).
