X-VSR-E Series
Vertical lift stages with built-in controllers and motor encoders
About This Series

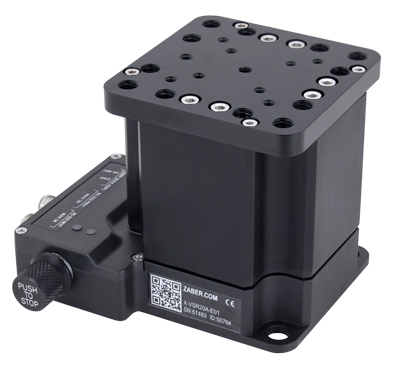

Zaber's X-VSR-E Series vertical lift stages are computer-controlled, stepper actuator driven platforms capable of moving 10 kg loads. They are stand-alone units requiring only a standard 48 V power supply.
An optional indexed knob provides convenient manual control for versatile operation even without a computer. These stages connect to the RS-232 port or USB port of any computer, and they can be daisy-chained with any other Zaber products. The daisy-chain also shares power, making it possible for multiple X-Series products to share a single power supply.
Convenient locking, 4-pin, M8 connectors on the unit allow for secure connection between units. The X-VSR-E stages deliver exceptional travel and load capacity for their compact sizes, measuring only 73 mm tall when closed. With small footprints these stages can also mount directly onto Zaber's LST and LSQ-E series linear stages. Like all of Zaber's products, the X-VSR-E Series is designed to be 'plug and play' and very easy to set up and operate.
- Integrated stepper motor controller and motor driver allows for easy-to-use control.
- Control all units in the daisy-chain via serial port (with a locking X-SDC cable) or USB (with an X-USBDC cable).
- Daisy-chain additional units with a locking X-DC02 cable or X-DC06 cable. Power can also be shared in the chain.
- An optional indexed knob provides convenient manual control.
- Top mounting surface for M6 and M3 fasteners.
- 73 mm tall when closed.
- Speed up to 48 mm/s.
- Easy access slots for M6 and 1/4-20 fasteners.
Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day
Have a Question?
Easy Set-Up
Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the Zaber device to your computer via USB or RS-232 port.
- Connect the power supply to your Zaber device.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
