X-LRQ-E Series

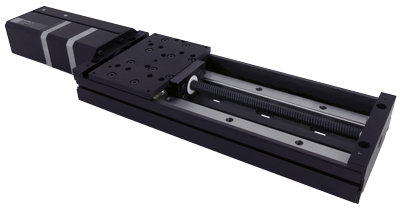

Name: X-LRQ-E Motorized Linear Stages, Built-in Controllers & Motor Encoders
Brand: Zaber
SKU: X-LRQ-E
Availability: InStock

Closed-loop stages with built-in stepper motors, motor encoders, and controllers

75, 150, 300, 450, 600 mm travel
Up to 840 mm/s speed and up to 300 N thrust
100 kg load capacity
Ball screw and lead screw configurations
Inline and parallel drive configurations
Integrated, 500 CPR, motor mounted encoder provides slip/stall detection and recovery
Built-in controller; daisy-chains with other Zaber products
Custom versions available

Have a Question?

Response time promise: 1 business day

Have a Question?

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Drive Screw Options

Drive Configuration

Encoder Options

E01: Rotary quadrature encoder, 500 CPR

Part Number	Description	Lead Time	Starting Prices (USD) *
X-LRQ075AL-E01	Lead-screw Driven \| 75 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	1-5 Days	$3,231
X-LRQ075AP-E01	Lead-screw Driven \| 75 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	1-5 Days	$3,231
X-LRQ075BL-E01	Lead-screw Driven \| 75 mm Travel \| Medium Resolution \| Medium Speed \| Inline Drive	1-5 Days	$3,231
X-LRQ075BP-E01	Lead-screw Driven \| 75 mm Travel \| Medium Resolution \| Medium Speed \| Parallel Drive	1-5 Days	$3,231
X-LRQ075DL-E01	Lead-screw Driven \| 75 mm Travel \| Coarse Resolution \| High Speed \| Inline Drive	1-5 Days	$3,231
X-LRQ075DP-E01	Lead-screw Driven \| 75 mm Travel \| Coarse Resolution \| High Speed \| Parallel Drive	1-5 Days	$3,231
X-LRQ075HL-E01	Ball-screw Driven \| 75 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	1-5 Days	$3,231
X-LRQ075HP-E01	Ball-screw Driven \| 75 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	1-5 Days	$3,231
X-LRQ150AL-E01	Lead-screw Driven \| 150 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	1-5 Days	$3,515
X-LRQ150AP-E01	Lead-screw Driven \| 150 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	1-5 Days	$3,515
X-LRQ150BL-E01	Lead-screw Driven \| 150 mm Travel \| Medium Resolution \| Medium Speed \| Inline Drive	1-5 Days	$3,515
X-LRQ150BP-E01	Lead-screw Driven \| 150 mm Travel \| Medium Resolution \| Medium Speed \| Parallel Drive	1-5 Days	$3,515
X-LRQ150DL-E01	Lead-screw Driven \| 150 mm Travel \| Coarse Resolution \| High Speed \| Inline Drive	1-5 Days	$3,515
X-LRQ150DP-E01	Lead-screw Driven \| 150 mm Travel \| Coarse Resolution \| High Speed \| Parallel Drive	1-5 Days	$3,515
X-LRQ150HL-E01	Ball-screw Driven \| 150 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	1-5 Days	$3,515
X-LRQ150HP-E01	Ball-screw Driven \| 150 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	1-5 Days	$3,515
X-LRQ300AL-E01	Lead-screw Driven \| 300 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	1-5 Days	$4,077
X-LRQ300AP-E01	Lead-screw Driven \| 300 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	1-5 Days	$4,077
X-LRQ300BL-E01	Lead-screw Driven \| 300 mm Travel \| Medium Resolution \| Medium Speed \| Inline Drive	1-5 Days	$4,077
X-LRQ300BP-E01	Lead-screw Driven \| 300 mm Travel \| Medium Resolution \| Medium Speed \| Parallel Drive	1-5 Days	$4,077
X-LRQ300DL-E01	Lead-screw Driven \| 300 mm Travel \| Coarse Resolution \| High Speed \| Inline Drive	1-5 Days	$4,077
X-LRQ300DP-E01	Lead-screw Driven \| 300 mm Travel \| Coarse Resolution \| High Speed \| Parallel Drive	1-5 Days	$4,077
X-LRQ300HL-E01	Ball-screw Driven \| 300 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	1-5 Days	$4,077
X-LRQ300HP-E01	Ball-screw Driven \| 300 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	1-5 Days	$4,077
X-LRQ450AL-E01	Lead-screw Driven \| 450 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	1-5 Days	$4,654
X-LRQ450AP-E01	Lead-screw Driven \| 450 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	1-5 Days	$4,654
X-LRQ450BL-E01	Lead-screw Driven \| 450 mm Travel \| Medium Resolution \| Medium Speed \| Inline Drive	1-5 Days	$4,654
X-LRQ450BP-E01	Lead-screw Driven \| 450 mm Travel \| Medium Resolution \| Medium Speed \| Parallel Drive	1-5 Days	$4,654
X-LRQ450DL-E01	Lead-screw Driven \| 450 mm Travel \| Coarse Resolution \| High Speed \| Inline Drive	1-5 Days	$4,654
X-LRQ450DP-E01	Lead-screw Driven \| 450 mm Travel \| Coarse Resolution \| High Speed \| Parallel Drive	1-5 Days	$4,654
X-LRQ450HL-E01	Ball-screw Driven \| 450 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	1-5 Days	$4,654
X-LRQ450HP-E01	Ball-screw Driven \| 450 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	1-5 Days	$4,654
X-LRQ600AL-E01	Lead-screw Driven \| 600 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	1-5 Days	$5,164
X-LRQ600AP-E01	Lead-screw Driven \| 600 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	1-5 Days	$5,164
X-LRQ600BL-E01	Lead-screw Driven \| 600 mm Travel \| Medium Resolution \| Medium Speed \| Inline Drive	1-5 Days	$5,164
X-LRQ600BP-E01	Lead-screw Driven \| 600 mm Travel \| Medium Resolution \| Medium Speed \| Parallel Drive	1-5 Days	$5,164
X-LRQ600DL-E01	Lead-screw Driven \| 600 mm Travel \| Coarse Resolution \| High Speed \| Inline Drive	1-5 Days	$5,164
X-LRQ600DP-E01	Lead-screw Driven \| 600 mm Travel \| Coarse Resolution \| High Speed \| Parallel Drive	1-5 Days	$5,164
X-LRQ600HL-E01	Ball-screw Driven \| 600 mm Travel \| Fine Resolution \| Low Speed \| Inline Drive	1-5 Days	$5,164
X-LRQ600HP-E01	Ball-screw Driven \| 600 mm Travel \| Fine Resolution \| Low Speed \| Parallel Drive	1-5 Days	$5,164

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *
T-XDC	X-Series to A-Series / T-Series Adaptor Cable	1-5 Days	$18
X-DC02-F45	Data Cable 2 ft (0.6 m), Right Angle Female Connector, X-Series Products	1-5 Days	$24
X-DC02-F45-M45	Data Cable, 2 ft (0.6 m), Right Angle Connectors, X-Series Products	1-5 Days	$24
X-DC02-M45	Data Cable, 2 ft (0.6 m), Right Angle Male Connector, X-Series Products	1-5 Days	$24
X-DC15	Data Cable, 15 ft (4.5 m), X-Series Products	1-5 Days	$42
X-DC25	Data Cable, 25 ft (7.6 m), X-Series Products	1-5 Days	$47
X-TDC	A-Series / T-Series to X-Series Adaptor Cable	1-5 Days	$19

Accessory	Description	Lead Time	Price (USD) *
AB104	Angle Bracket, 90 Degrees, Large, Metric	1-5 Days	$194
AB164	Angle Bracket, 90 Degrees, Large, LRQ	1-5 Days	$194
AB255	Angle bracket, 90 degrees, metric, LDM	1-5 Days	$425
AB90M	Angle Bracket, 90 Degrees, Metric Mounting Holes	1-5 Days	$141
AP101	LSM Bottom Adaptor Plate	1-5 Days	$75
AP165	Adaptor Plate, XY Spacer for LRQxP	1-5 Days	$107
AP257	Adaptor Plate, M6 Grid to Metric Mounting	1-5 days	$162
