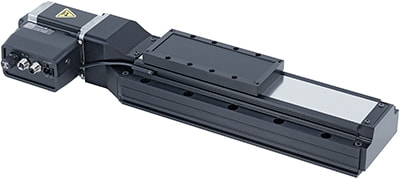

X-LRT-EC

X-LRT-EC Series

High load linear stages with built-in controllers, motor encoders, dust covers, and optional brakes

100, 250, 500, 750, 1000, 1500 mm travel
Up to 700 mm/s speed and up to 1200 N thrust
300 kg load capacity
High moment stiffness
Ball screw and lead screw configurations
Includes stainless steel dust covers
Optional integrated power-off brake for vertical applications
Built-in, 400 CPR, motor encoder provides slip/stall detection and recovery
Built-in controller; daisy-chains with other Zaber products

Part Numbering & Options

Showing 40 of 40 Parts.

Part Number	Description	Lead Time	Starting Prices (USD) *
X-LRT0100AL-E08C	Lead-screw Driven \| 100 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,408
X-LRT0100BL-E08C	Lead-screw Driven \| 100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,408
X-LRT0100BL-BE08C	Lead-screw Driven \| 100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,142
X-LRT0100DL-E08C	Lead-screw Driven \| 100 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$4,408
X-LRT0100DL-BE08C	Lead-screw Driven \| 100 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$5,142
X-LRT0100HL-E08C	Ball-screw Driven \| 100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,408
X-LRT0100HL-BE08C	Ball-screw Driven \| 100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,142
X-LRT0250AL-E08C	Lead-screw Driven \| 250 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,609
X-LRT0250BL-E08C	Lead-screw Driven \| 250 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,609
X-LRT0250BL-BE08C	Lead-screw Driven \| 250 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,343
X-LRT0250DL-E08C	Lead-screw Driven \| 250 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$4,609
X-LRT0250DL-BE08C	Lead-screw Driven \| 250 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$5,343
X-LRT0250HL-E08C	Ball-screw Driven \| 250 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,609
X-LRT0250HL-BE08C	Ball-screw Driven \| 250 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,343
X-LRT0500AL-E08C	Lead-screw Driven \| 500 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,941
X-LRT0500BL-E08C	Lead-screw Driven \| 500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,941
X-LRT0500BL-BE08C	Lead-screw Driven \| 500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,675
X-LRT0500DL-E08C	Lead-screw Driven \| 500 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$4,941
X-LRT0500DL-BE08C	Lead-screw Driven \| 500 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$5,675
X-LRT0500HL-E08C	Ball-screw Driven \| 500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,941
X-LRT0500HL-BE08C	Ball-screw Driven \| 500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,675
X-LRT0750AL-E08C	Lead-screw Driven \| 750 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$5,274
X-LRT0750BL-E08C	Lead-screw Driven \| 750 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,274
X-LRT0750BL-BE08C	Lead-screw Driven \| 750 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$6,007
X-LRT0750DL-E08C	Lead-screw Driven \| 750 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$5,274
X-LRT0750DL-BE08C	Lead-screw Driven \| 750 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$6,007
X-LRT0750HL-E08C	Ball-screw Driven \| 750 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,274
X-LRT0750HL-BE08C	Ball-screw Driven \| 750 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$6,007
X-LRT1000AL-E08C	Lead-screw Driven \| 1000 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$5,607
X-LRT1000BL-E08C	Lead-screw Driven \| 1000 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,607
X-LRT1000BL-BE08C	Lead-screw Driven \| 1000 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$6,341
X-LRT1000DL-E08C	Lead-screw Driven \| 1000 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$5,607
X-LRT1000DL-BE08C	Lead-screw Driven \| 1000 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$6,341
X-LRT1000HL-E08C	Ball-screw Driven \| 1000 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,607
X-LRT1000HL-BE08C	Ball-screw Driven \| 1000 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$6,341
X-LRT1500AL-E08C	Lead-screw Driven \| 1500 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$6,274
X-LRT1500BL-E08C	Lead-screw Driven \| 1500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$6,274
X-LRT1500BL-BE08C	Lead-screw Driven \| 1500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$7,008
X-LRT1500DL-E08C	Lead-screw Driven \| 1500 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$6,274
X-LRT1500DL-BE08C	Lead-screw Driven \| 1500 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$7,008

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
