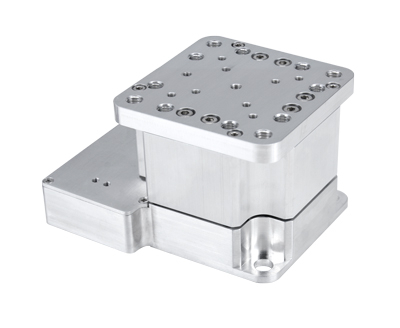

X-VSR-SV1 Series
Low vacuum vertical stages with built-in controllers
- Vacuum compatible to 10-3 Torr
- 20 mm or 40 mm travel
- Up to 48 mm/s speed and up to 200 N thrust
- 10 kg load capacity
- 55 or 85 mm retracted height
- Only 4 feedthrough wires required to control all units in the daisy-chain via serial port (with an X-PIB adaptor)
- Built-in controller; daisy-chains with other Zaber products
Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day
Have a Question?
Filter By Feature
Choose one or more options below to filter the parts table.
X-VSRTravel: 20, not selectedLead Screw Options: AOptions: -SV1
Showing 2 of 2 parts.Lead Screw Options
Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart | Add To Compare |
|---|---|---|---|---|---|
| X-VSR20A-SV1 | 20 mm Travel | 4-7 Days | $3,844 | ||
| X-VSR40A-SV1 | 40 mm Travel | 4-7 Days | $4,366 |
Compatible Accessories
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| X-PIB | Daisy-chain Power Injector, X-Series | 1-5 Days | $92 |
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AP135-V | Goniometer Adaptor Plate, Vacuum Compatible | 1-5 Days | $59 |
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| PS13S-48V12 | Power Supply, 48 V 1.25 A | 1-5 Days | $37 | |
| PS14S-48V37 | Power Supply, 48 V 3.75 A | 1-5 Days | $112 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
