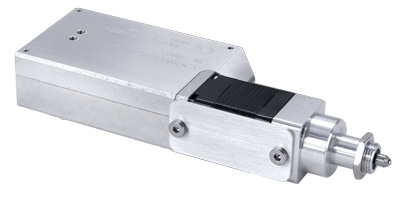

X-NA-SV1 Series
Low vacuum micro linear actuators with built-in controllers
- Vacuum compatible to 10-3 Torr
- 25 and 50 mm travel
- Up to 25 mm/s speed and up to 25 N thrust
- Hardened ball-tip (removable so you can use the built-in threaded tip or a flat tip)
- Our most compact, precise and robust actuator
- Designed to replace standard micrometer heads on manual translation stages
- Built-in controller; daisy chains with other X-series devices inside vacuum chamber
Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day
Have a Question?
Filter By Feature
Choose one or more options below to filter the parts table.
X-NAMotor Size: 08Lead Screw Options: ATravel: 25, not selectedOptions: -SV1
Showing 2 of 2 parts.Lead Screw Options
Travel
Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart | Add To Compare |
|---|---|---|---|---|---|
| X-NA08A25-SV1 | 25 mm Travel | 4-7 Days | $2,486 | ||
| X-NA08A50-SV1 | 50 mm Travel | 4-7 Days | $2,712 |
Compatible Accessories
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| X-PIB | Daisy-chain Power Injector, X-Series | 1-5 Days | $92 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
