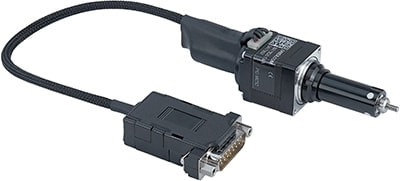

Representative Image
NA Family
Wide Selection of Sizes
- 16, 25, 30, 50 and 60 mm travel
- Replaces standard micrometer heads on manual translation stages
- Built-in controller or motor models only
- Motor encoder option for slip/stall detection and automatic recovery
- Removable hardened ball-tip
| Shortest Travel | Longest Travel | Best Accuracy | Best Backlash | Best Repeatability | Highest Speed | Highest Thrust |
|---|---|---|---|---|---|---|
16 mm (0.63") | 60 mm (2.362") | 20 µm (0.000787") | < 15 µm (< 0.000591") | < 1 µm (< 0.000039") | 80 mm/s (3.15"/s) | 1300 N (291.5 lb) |
Have a Question?
| Series Name | Built-In Controller | Built-In Encoder | Built-In Motor | Vacuum Rating | Price Range (USD) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|---|
| X-NA-E | Available | Motor/rotary | Stepper | Available | $1,427 – $1,756 | 1–5 days | |
| X-NA | Available | Not available | Stepper | Available | $1,212 – $1,541 | 1–5 days | |
| NA | Not available | Not available | Stepper | Available | $599 – $1,442 | 1–5 days | |
| X-NA-SV2 | Available | Not available | Stepper | High (10-6 torr) | $4,473 – $4,733 | 7–10 days | |
| X-NA-SV1 | Available | Not available | Stepper | Low (10-3 torr) | $2,486 – $2,712 | 4–7 days |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Customization Examples
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization Team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day

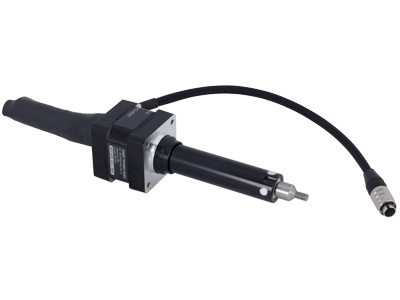

Custom Actuator with Compact Circular Connector
This NA14B60-T4 linear actuator features a compact circular connector; whereas, the standard model uses a D-SUB15 connector for the motor and sensor cable.

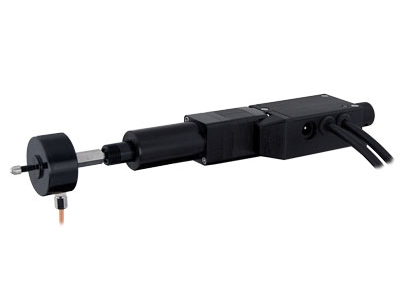

Custom T-NA with a Mounted Load Cell
This is a customized T-NA08A50 linear actuator, which has a small load cell mounted to the actuating shaft. The load cell allows the system to operate with force feedback. This load cell measures compression forces and can be used for materials testing and measurement. For example, the actuator can be used to bend or displace material by a specified distance, and the force required to do this would then be measured and recorded.
